Smart Thermostat Dashboard
Smart Thermostat information is displayed on this screen.
Start-up

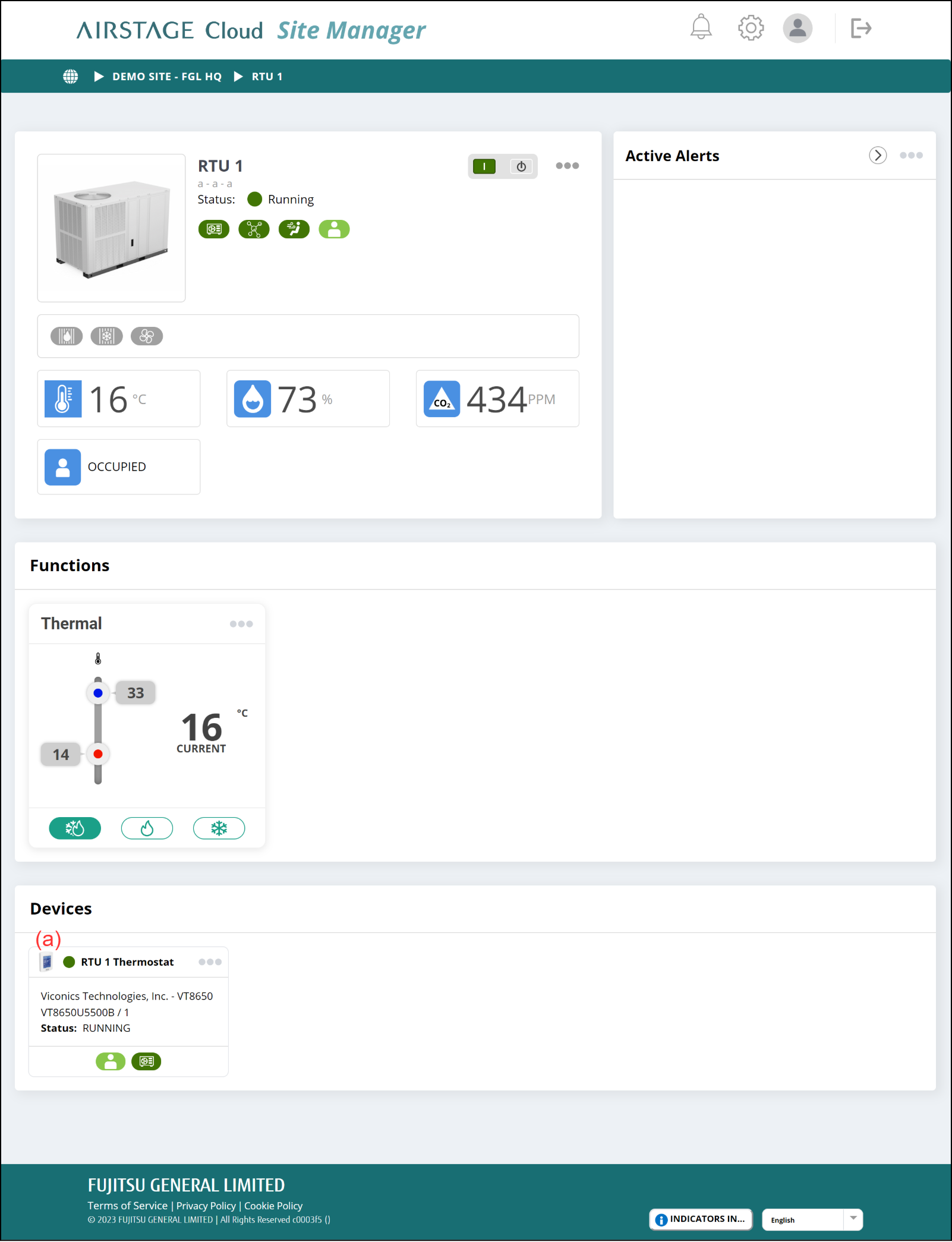

- Select the Image Link (a) on “Roof top unit Dashboard” screen.

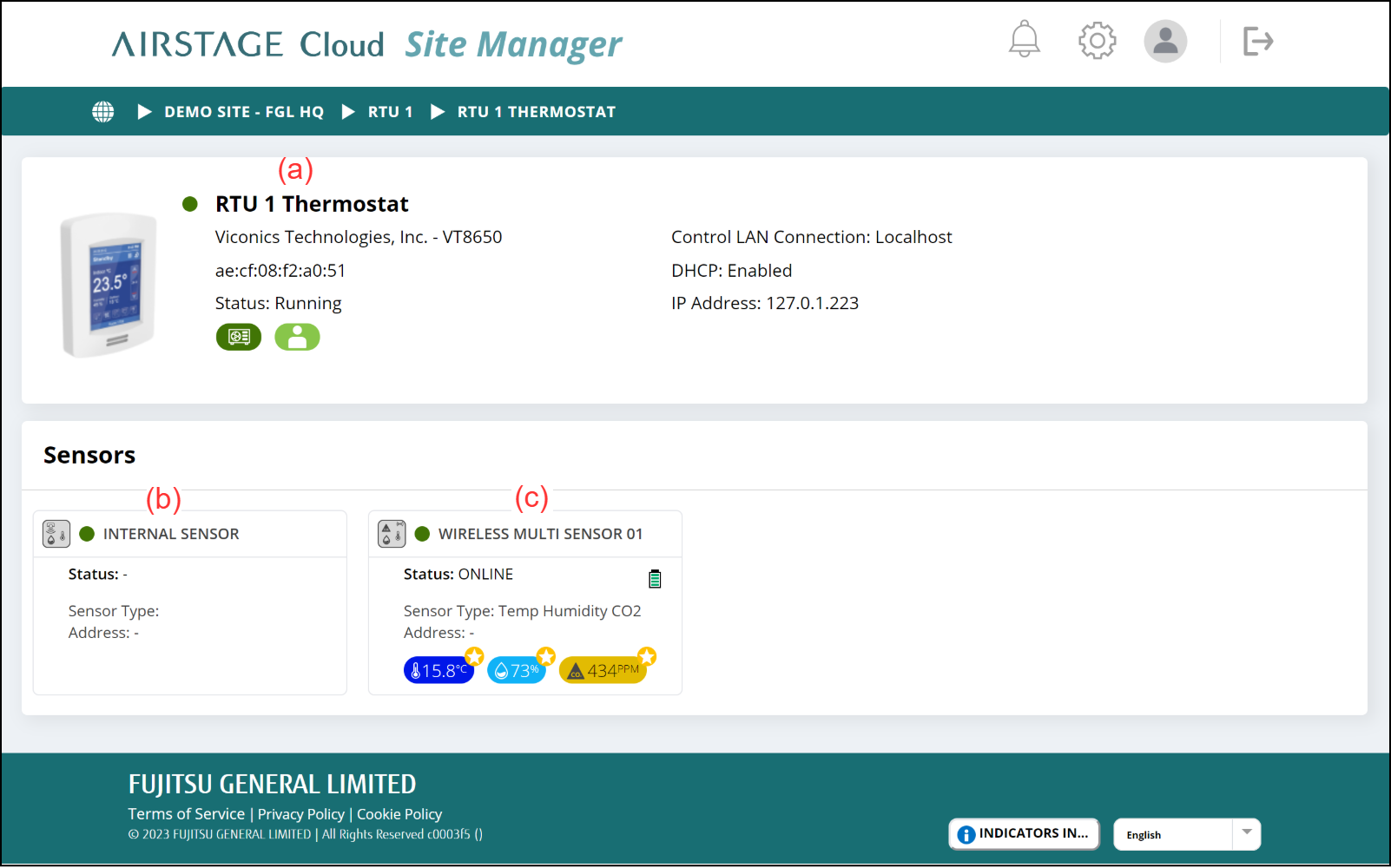

Smart Thermostat Dashboard screen
(a) Smart Thermostat information
Displays the Smart thermostat information connected to Roof top unit.
- Thermostat name
- Model
- MAC address
- Status
- SSID
- Connection method (wireless LAN)
- DHCP setting Enabled/Disabled
- IP address
(b) Sensor information (Internal)
Displays the sensor information inside the thermostat.
- Status
- Sensor type information (Temp and Humidity)
- Address (For Internal, "-" is always displayed.)
- Measured values of Temp, Humidity by sensor
NOTE: Values are displayed for sensors that are set to be enabled on the thermostat.
(c) Sensor information (Wireless Sensor)
Displays the external sensor information connected to the thermostat.
- Remaining battery level
- Status
- Sensor type information (Temp, Humidity, and CO2)
- Address (For external, the address of ZigBee sensor is displayed.)
- Measured values of Temp, Humidity, CO2 by sensor
NOTE: When the Wireless Sensor is not connected, information in (c) is not displayed.
