Add Zone

Zone can be added to Floor.

NOTE: When multiple indoor unit remote controller groups are added to Zone, select and add the primary indoor unit only. When secondary indoor unit is selected, it cannot be added to Zone.
Start-up

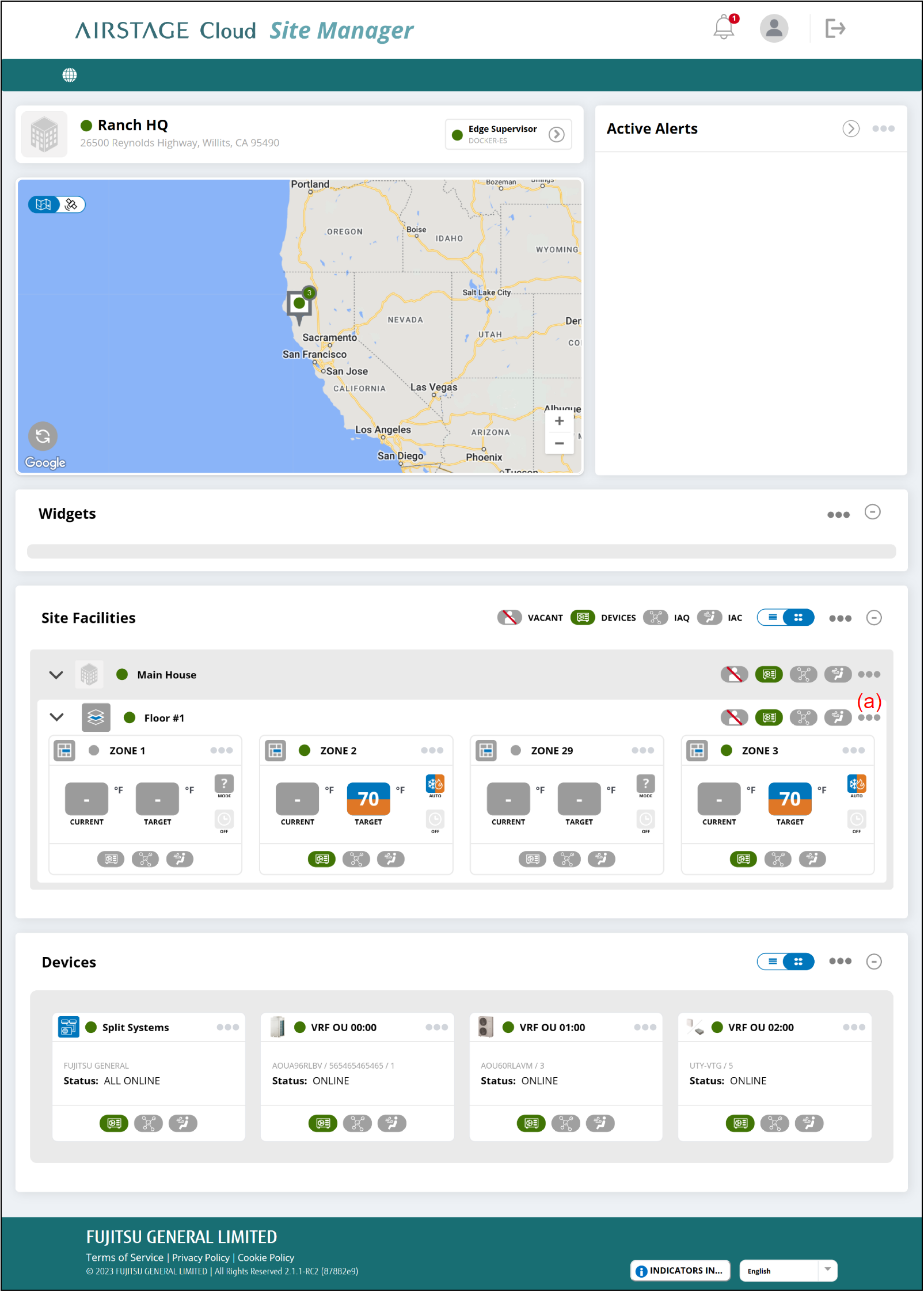

  1. Select [Add Zone] from link menu (a) on “Site Dashboard” screen.

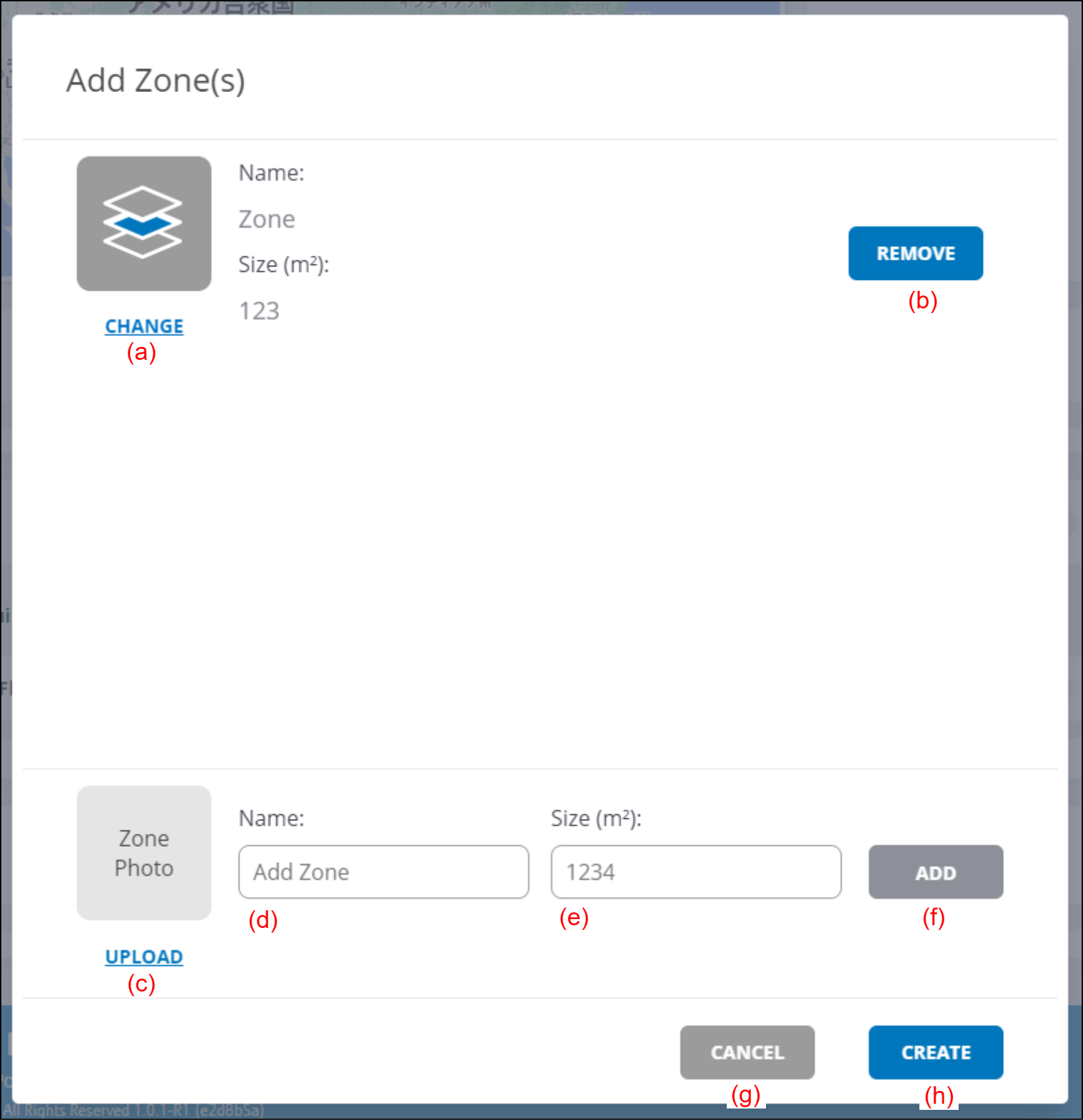

"Add Zone(s)" window
  1. Enter the following page information.
  2. To complete the setting, select the button (h).
    The setting will be saved, and the window will close.

If you want to close the window without saving the changes, select the button (g).

(a) [CHANGE] button
     Registers the Zone photo.

(b) [REMOVE] button
     Removes the Zone information.

(c) [UPLOAD] button
     Registers the Zone photo.

(d) Enter the Zone name.

(e) Enter the Zone size.

(f) [ADD] button
     Adds new Zone.
