Perform the addition, setting change, and removal for Zone

The addition, setting change, and removal can be performed for Zone.

NOTE: When the set temperature and operation mode of indoor unit in the Zone are changed, those of indoor unit in the same Zone are also changed linked with the set value.
When you do not want to link the indoor units with each other, register them to the different Zones.
In addition, do not register the different refrigerant system indoor unit to the same Zone.

Start-up

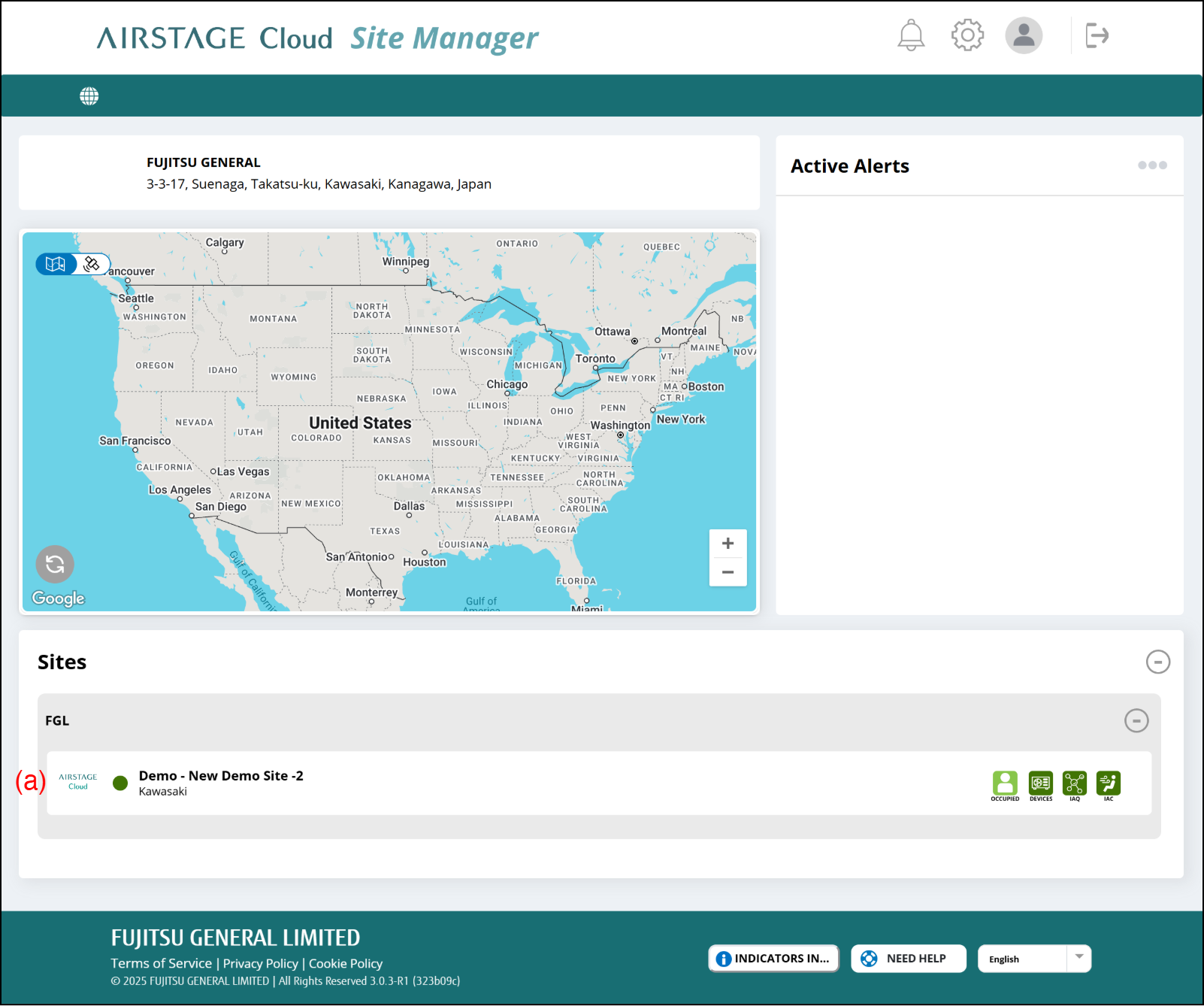

Select an arbitrary Site (a) you want to display from “Portfolio Dashboard” (top screen).

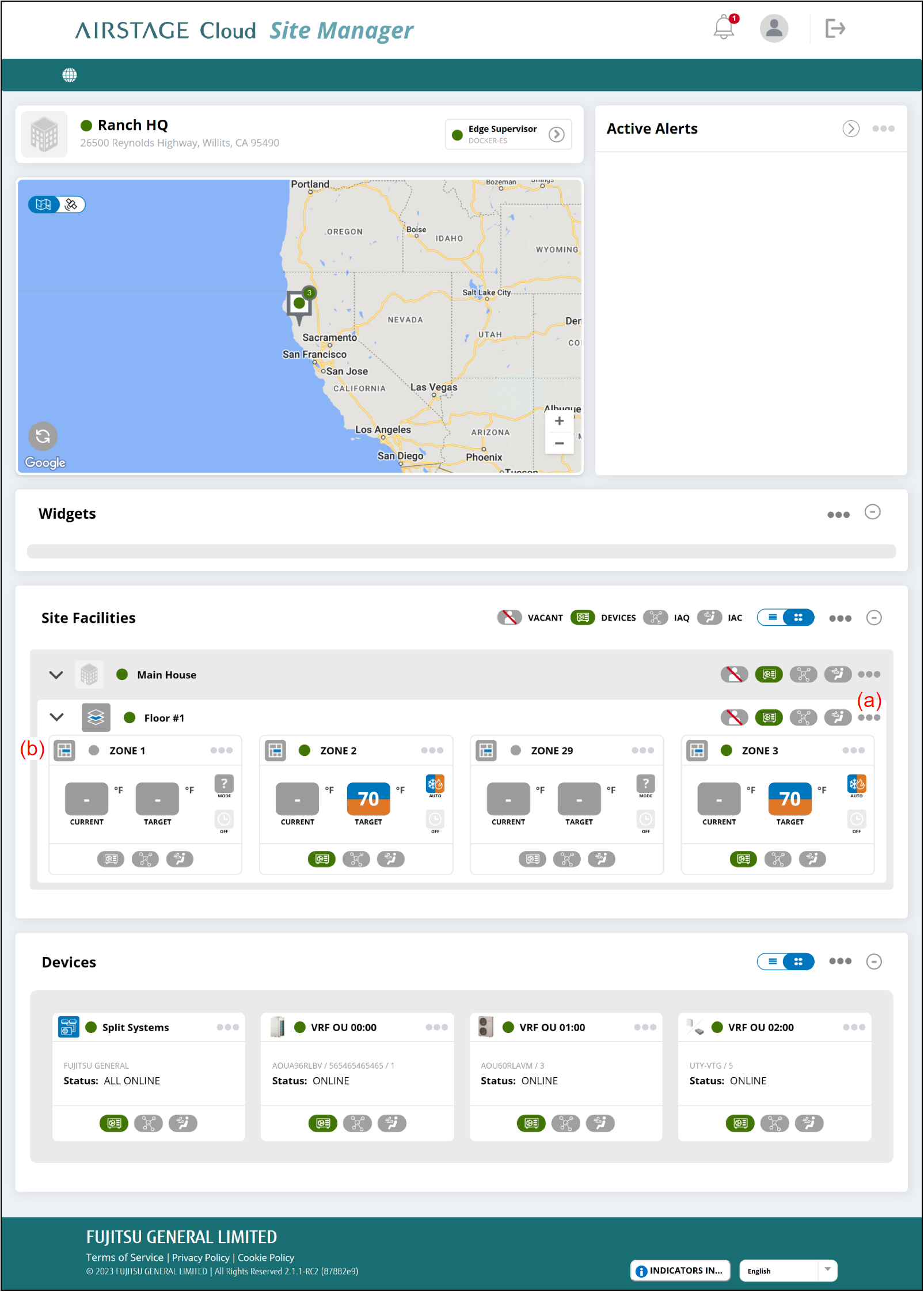

Site Dashboard screen

The addition, setting change, and removal can be performed for Zone.

(a) Link menu (Floor)

To add the Zone, select [Add Zone].
To perform the setting change for the Floor collectively, select [Edit Zones].

(b) Image Link (Zone)
To perform the setting change or removal for Zone, select the Zone photo to be changed.
