When operating from AIRSTAGE Edge Controller

When you access to AIRSTAGE Cloud Site Manager from AIRSTAGE Edge Controller, there are some differences below compared with the access from PC or smart device.

NOTE: The following screen is just one example. Other screens also differ slightly in the same way of this description.

When logging in

When logging in, Site Dashboard of the Site where AIRSTAGE Edge Controller is placed is displayed.
You cannot access Portfolio dashboard or the Site dashboard of the other Sites.

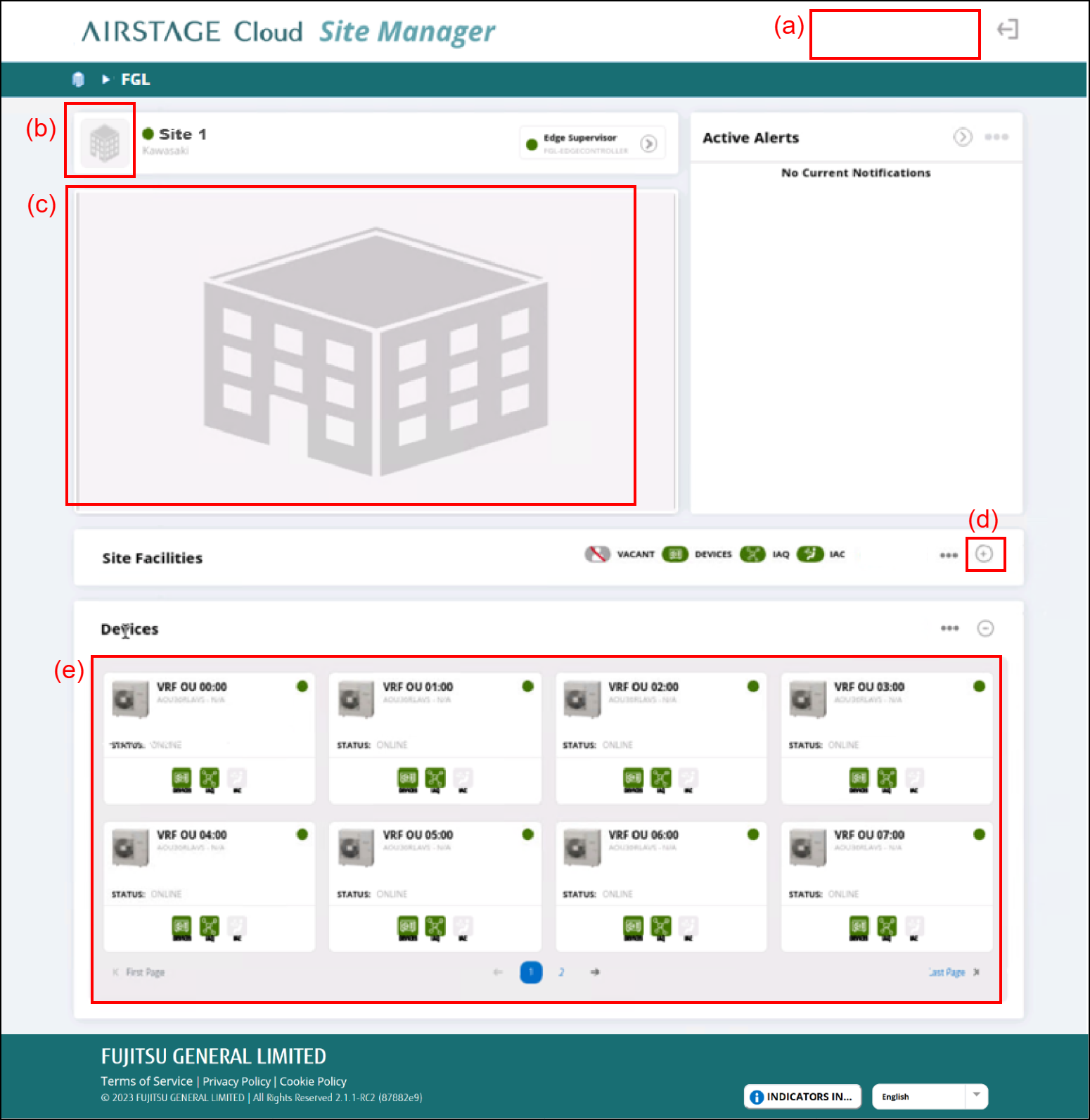

When using AIRSTAGE Cloud Site Manager

(a) Header
The Setting icon and Profile icon are not displayed.

(b) Image setting
Images of Building, Floor, and Zone cannot be changed. Even if the image is set from PC or smart device, the default setting image is displayed.

(c) Map
The default image of Building is displayed instead of the map.

(d) Expand/Collapse display
Just only one item can be expanded at a time. If you expand another item while one item is expanded, the former item is collapsed.

(e) Card split display
Items may be split into multiple pages.

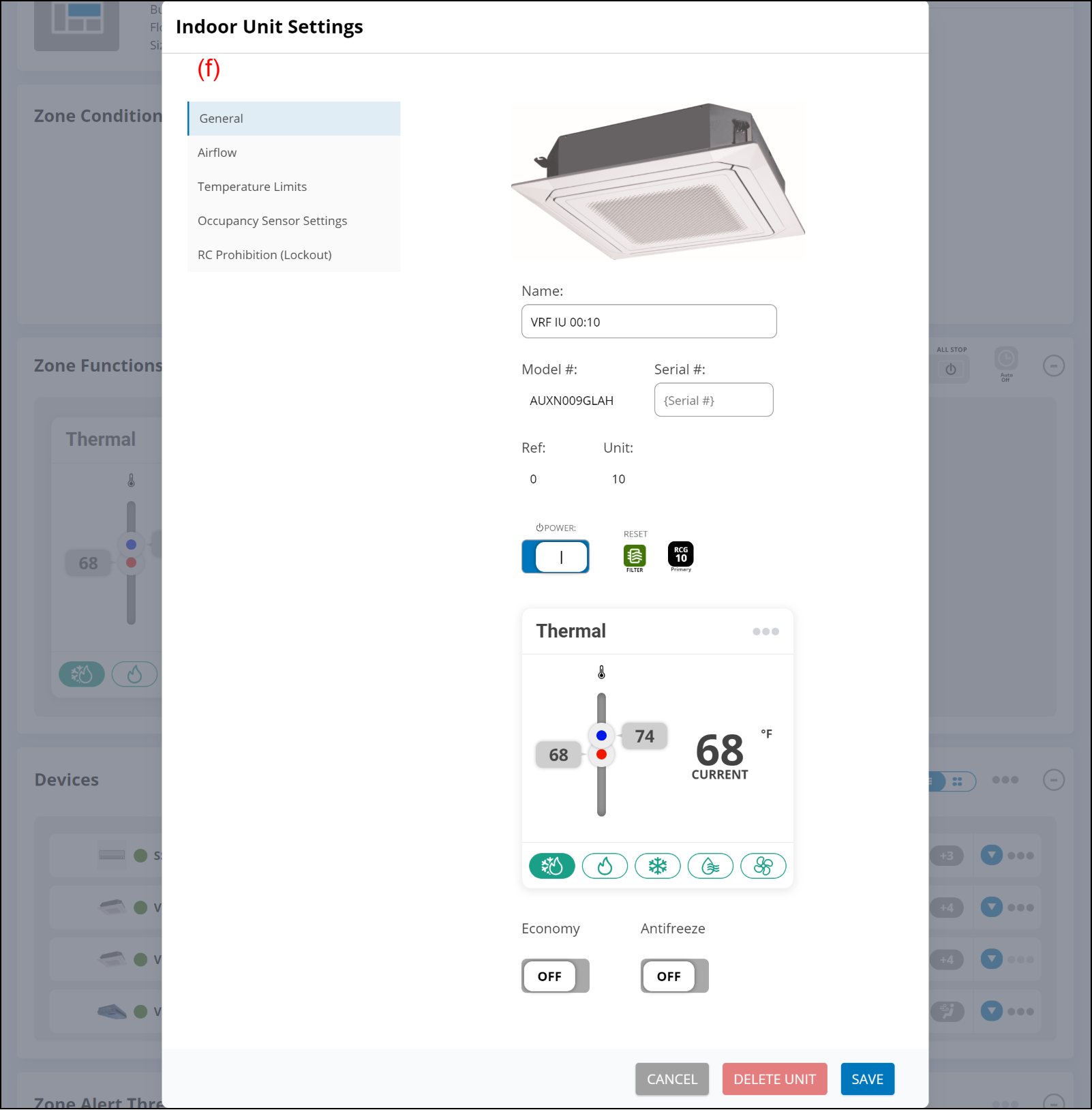

(f) Indoor unit settings
When this window is displayed, only basic settings are displayed. To check and change the detailed settings, tap the menu. Refer to "Perform the setting change or removal for indoor unit" for details.
