Perform the addition, setting change, and removal for Device (Split Systems)

Site Dashboard screen the addition, setting change, and removal can be performed for device.

Start-up

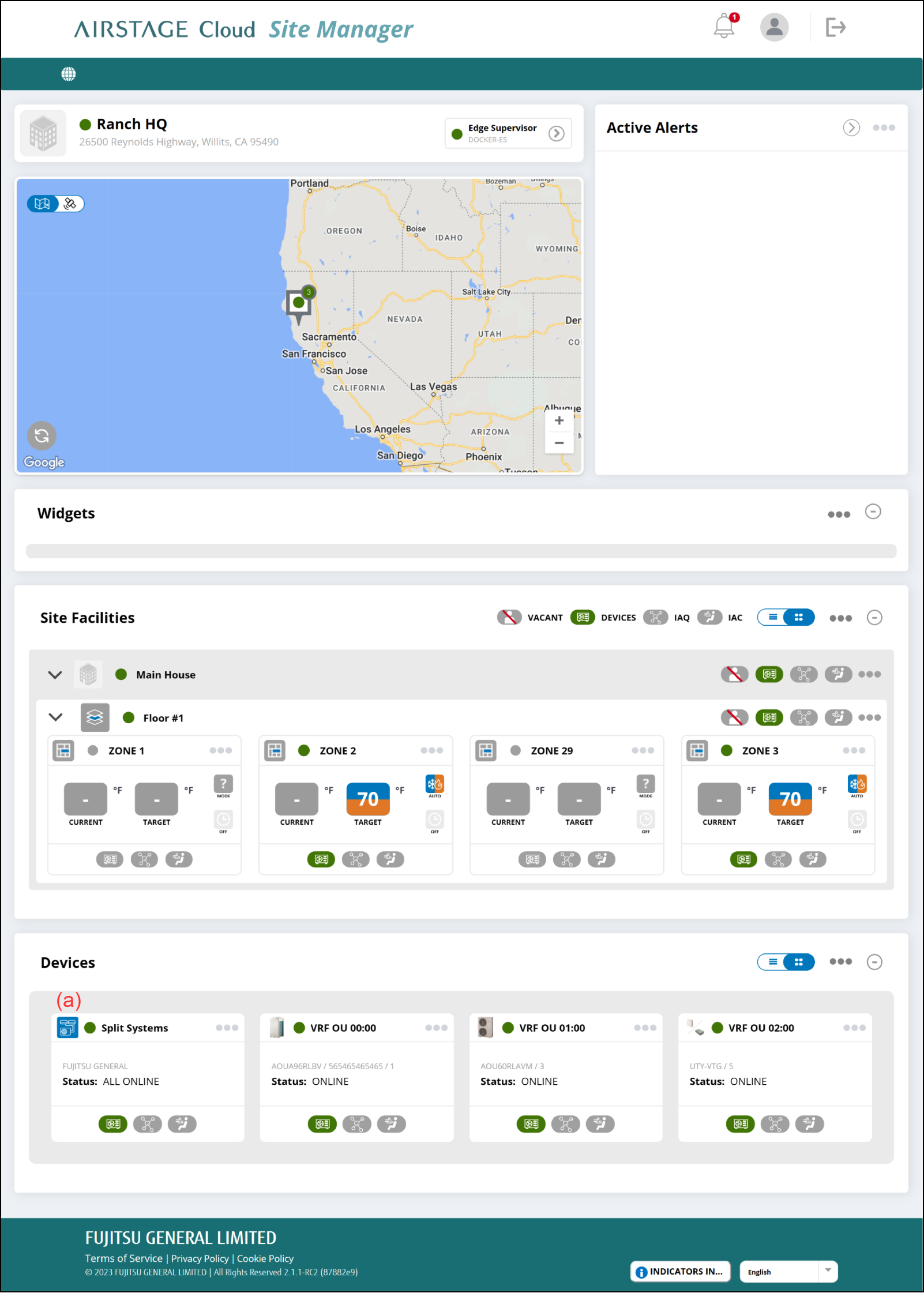

(a) Image Link (Split Systems)
To perform the setting change or removal for device, select the device illustration to be changed.

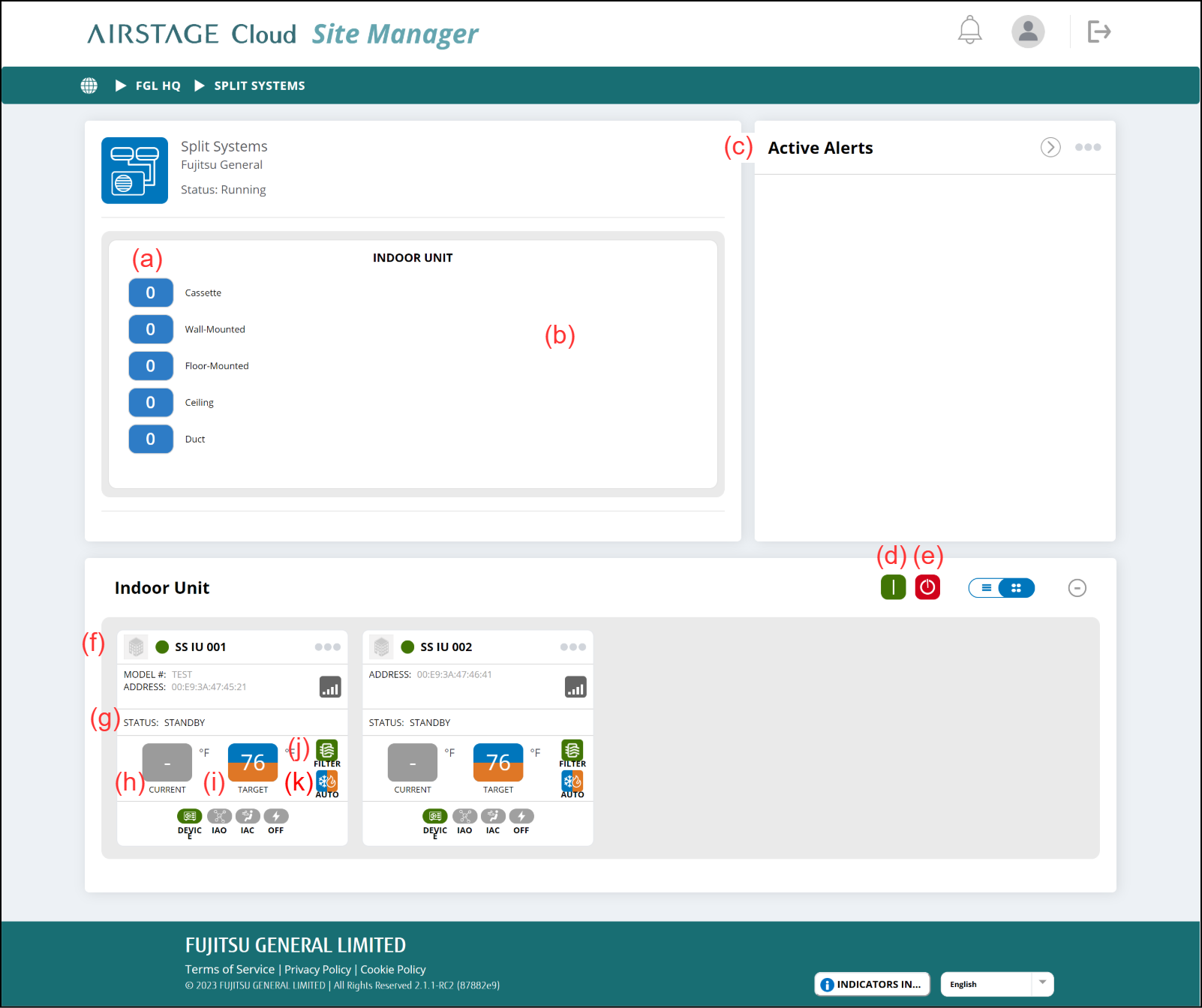

Split Systems screen

The addition, setting change, and removal for indoor unit.

(a) Displays the number of registered Split System indoor units and their operating status.

(b) [UPDATES] button

Displays the firmware updates screen of Split System indoor units.

(c) Active Alerts

Alerts are shown as necessary. Refer to "Alert and notification" for details.

(d) Starts the all indoor units.

(e) Stops the all indoor units.

(f) Displays the Indoor Unit Detail Setting.

(g) Operating status

Running	Operating
Standby	Operation is stopped.
Offline	Offline status

(h) Displays the current temperature of indoor unit.

NOTE:

When the indoor unit is set to "Running", the room temperature is displayed. If not controlled by the temperature sensor of wired remote controller, the intake temperature of indoor unit is displayed. In this case, it may differ from the actual room temperature.

(i) Displays the target temperature of indoor unit.

(j) Filter icon

Displays the status of Filter sign.

(k) Mode icon

Displays the mode of indoor units.
