Setting the main body (Menu)

When pressing the [MENU] button at the right of the AIRSTAGE Edge Controller, the Menu screen appears.
The setting, turning off the power, or the reboot of the AIRSTAGE Edge Controller can be performed on the Menu screen.

NOTE: When you operate the Menu, do not keep pressing the [MENU] button after the Menu screen appears.
When the [MENU] button is pressed and held for 5 seconds or longer, AIRSTAGE Edge Controller power is turned off.

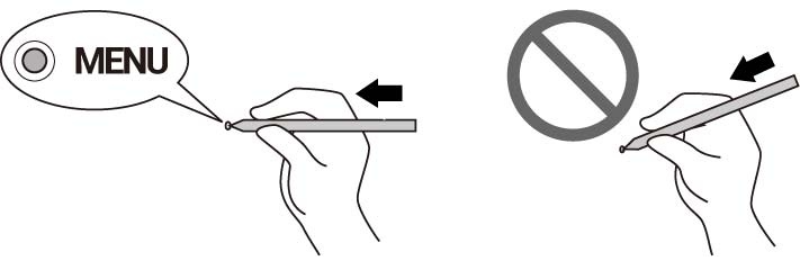

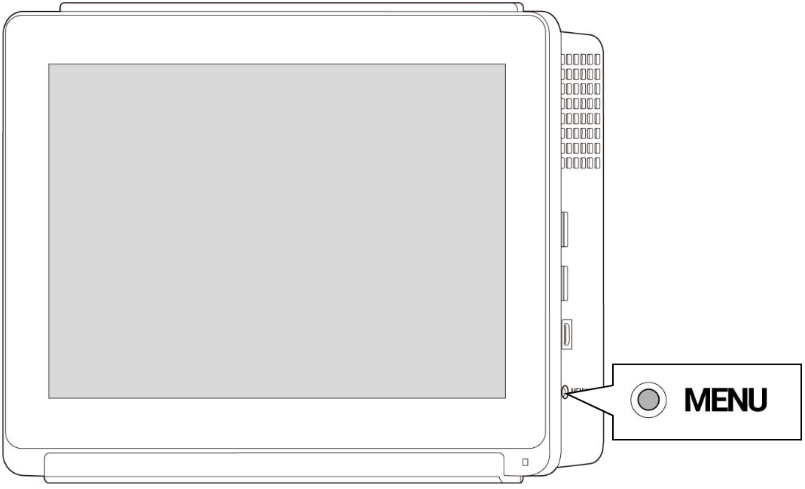

Press [MENU] button as shown in the following figure. Use the tip of a ballpoint pen or other small object.

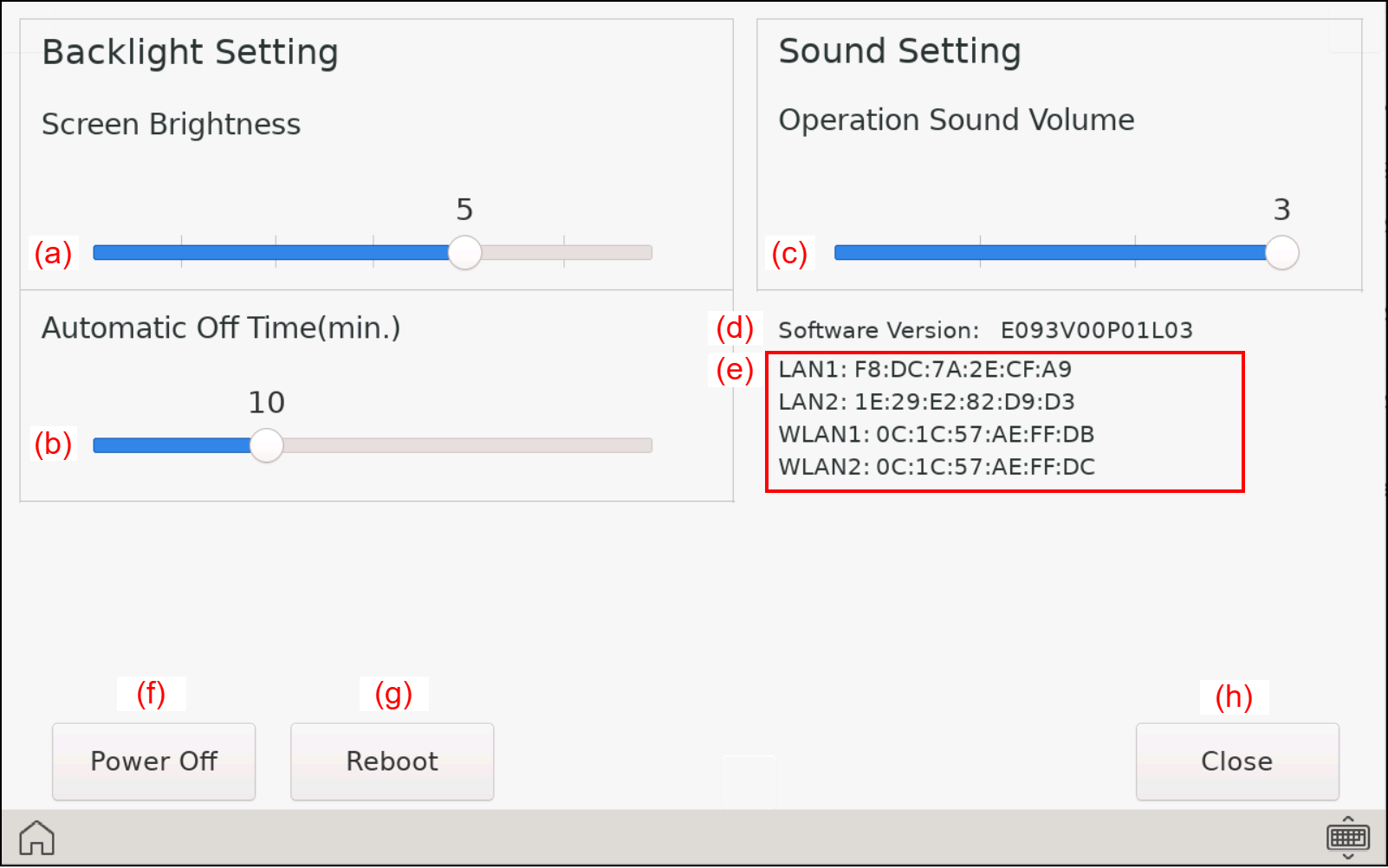

The Menu screen will be shown.

Edit the setting of the AIRSTAGE Edge controller.
To complete the editing, tap the [Close] button (h).

To turn off the AIRSTAGE Edge Controller, tap the [Power Off] button (f).
To reboot the AIRSTAGE Edge Controller, tap the [Reboot] button (g).

(a) Screen Brightness setting
Select the screen brightness.

(b) Automatic Off Time setting
Select the time to light off the screen after the last operation. (from 1 minute to 30 minutes)

(c) Operation Sound Volume setting
Select the sound volume for operating the AIRSTAGE Edge Controller.
When "0" is selected, the operation sound is not generated.

(d) Software Version
Current software version of this AIRSTAGE Edge Controller.

(e) MAC addresses for this AIRSTAGE Edge Controller
