Site Dashboard

Detailed information of each Site can be checked, and setting can be changed in the Site Dashboard.

NOTE: When using AIRSTAGE Edge Controller, the screen display differs slightly.
For details, refer to "When operating from AIRSTAGE Edge Controller".

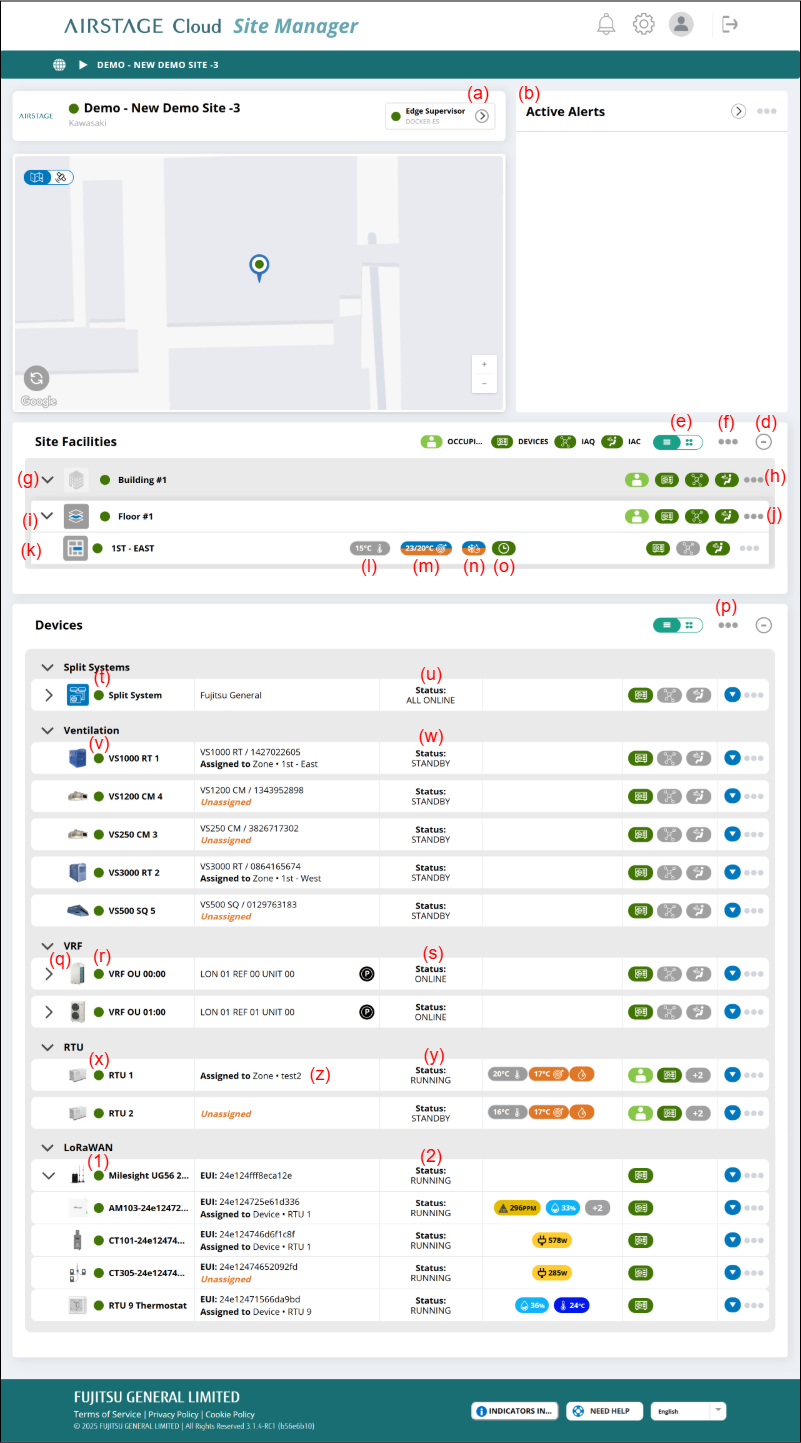

Site Dashboard

Site information is displayed on this screen.

(a) [>] button
Moves to the Edge Supervisor Settings.
You can change settings of the AIRSTAGE Cloud Edge Supervisor such as the Network setting or External devices setting.

(b) Active Alerts
Active alerts for the Site are shown as necessary. Refer to "Alert and notification" for details.

(c) Link button

Add Widget

Supported in the future.

(d) [-+] button
Expands or collapses the display.

(e) Display switching button
Switches between card and list display.

(f) Link menu (Site)

SITE SETTINGS

The screen moves to "Site Settings".

ADD BUILDING

"Add Building(s)" window is shown.

EDIT ZONES

The screen moves to "BULK EDIT ZONES."

You can change the settings of all Zones in the Site collectively.

(g) [>] button
Shows or hides the subordinate Floors.

(h) Link menu (Building)

BUILDING SETTINGS

"Building Settings" window is shown.

ADD FLOOR

"Add Floor(s)" window is shown.

EDIT ZONES

The screen moves to "BULK EDIT ZONES."

You can change the settings of all Zones in the Building collectively.

(i) [>] button
Shows or hides the subordinate Zones.

(j) Link menu (Floor)

FLOOR SETTINGS

"Floor Settings" window is shown.

ADD ZONE

"Add Zone(s)" window is shown.

EDIT ZONES

The screen moves to "BULK EDIT ZONES."

You can change the settings of all Zones in the Floor collectively.

(k) Zone
By selecting each Zone, the screen moves to the Zone setting screen.

(l) Current temperature icon
Displays the current temperature of Zone Setting.

NOTE: When the indoor unit is set to "Running", the room temperature is displayed. If not controlled by the temperature sensor of wired remote controller, the intake temperature of indoor unit is displayed. In this case, it may differ from the actual room temperature.

(m) Target temperature icon
Displays the target temperature of Zone Setting.

(n) Mode icon
Displays the mode in Zone Setting.

(o) Schedule icon
When there is a running Schedule in Zone, "ON" is displayed.

(p) Link menu

VRF SCAN	To scan the VRF devices connected the Site, select the button. "Detect the connecting devices (VRF Scan)" window is shown.
SPLIT SYSTEMS SCAN	To scan the split system devices connected the Site, select the button. "Split Systems Scan" window is shown.

(q) Device
By selecting each Device, the screen moves to the Device setting screen.

(r) Device condition (for VRF system)

	Normal operation Operates normally.
	Error An error occurs at a unit in card.
	Life safety Connected sensor detects a refrigerant leakage.
	No assignment No Device is allocated.

(s) Device status (for VRF system)

Running	Operating
Standby	Operation is stopped.
Offline	Offline status

(t) Device condition (for split system)

	Normal operation All indoor units in the Split system are online and no errors occur.
	Error Even one indoor unit in the Split system are offline or an error occurs.

(u) Device status (for split system)

All online	All indoor units in the Split system are online.
Mixed status	Some indoor units in the Split system are offline.
All offline	All indoor units in the Split system are offline.

(v) Device condition (for Ventilator)

	Normal status
	Warnig issue
	Critical issue
	Object is in pre-install status

(w) Device status (for Ventilator)

Running	Operating
Standby	Operation is stopped.
Offline	Offline status

(x) Device condition (for Roof Top Unit)

	Normal status
	Warnig issue
	Critical issue
	Object is in pre-install status

(y) Device status (for Roof Top Unit)

Running	Operating
Standby	Operation is stopped.
Offline	Offline status

List display

(a) Site Facilities
Lists for site facilities are displayed.

(b) [▼] button
Displays the model name of the device.

(c) Indoor unit
Indoor units in the same refrigerant system can be displayed under the lists.
