Operation History
The Operation History screen can be displayed by tapping [Operation] tab at the Control area.
The indoor units or outdoor unit operation history is displayed for each unit.

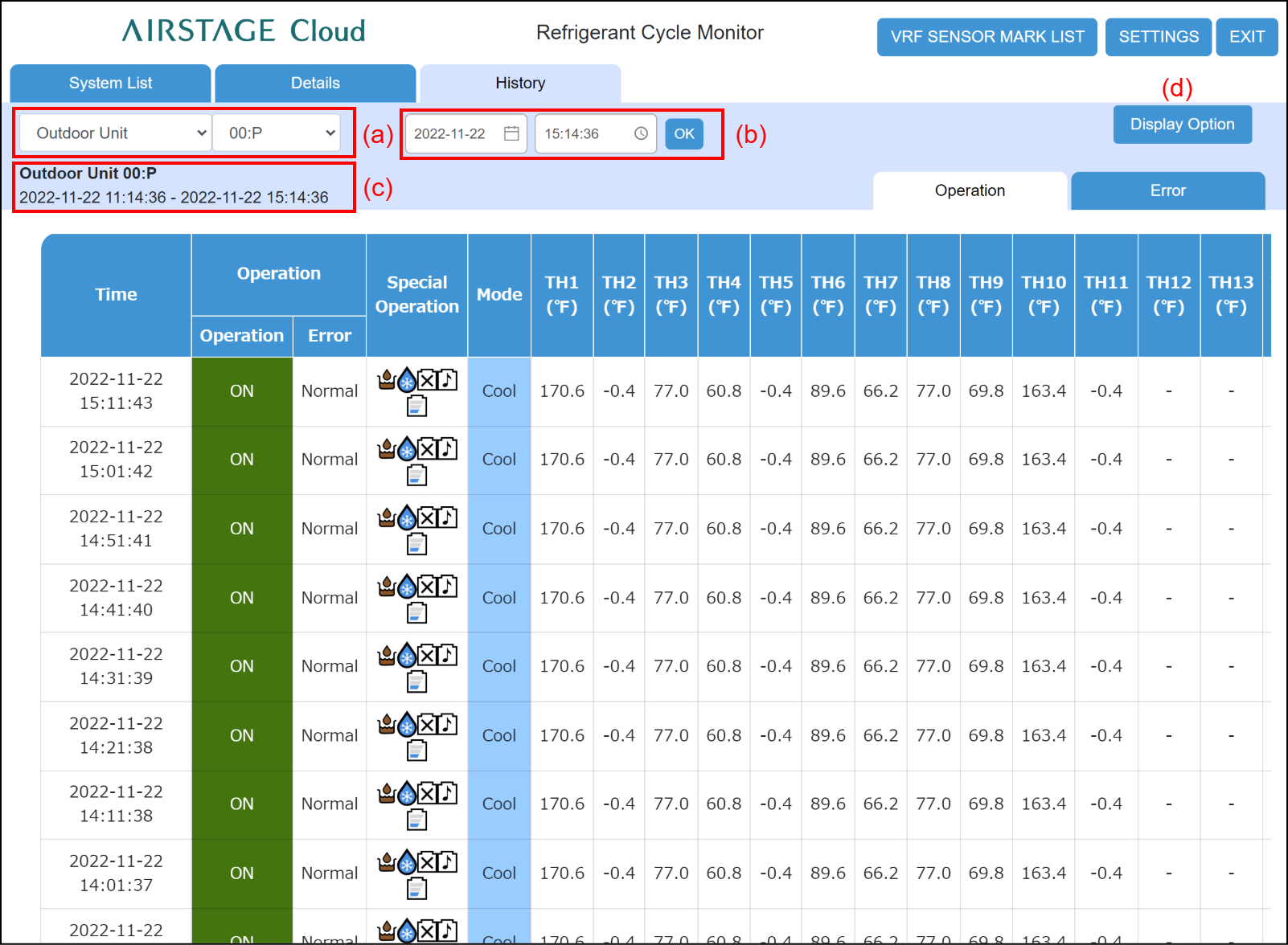

Control area
(a) Unit selection field
Switches outdoor unit/indoor unit and selects the Unit No.
(b) History display range selection field
Select the time for displaying the history. 4-hour histories before the selected time are displayed.
(c) History display range
Displays the unit and time whose histories are displayed.
(d) [Display Option] button
Selects display / hidden for the item displayed at list area.

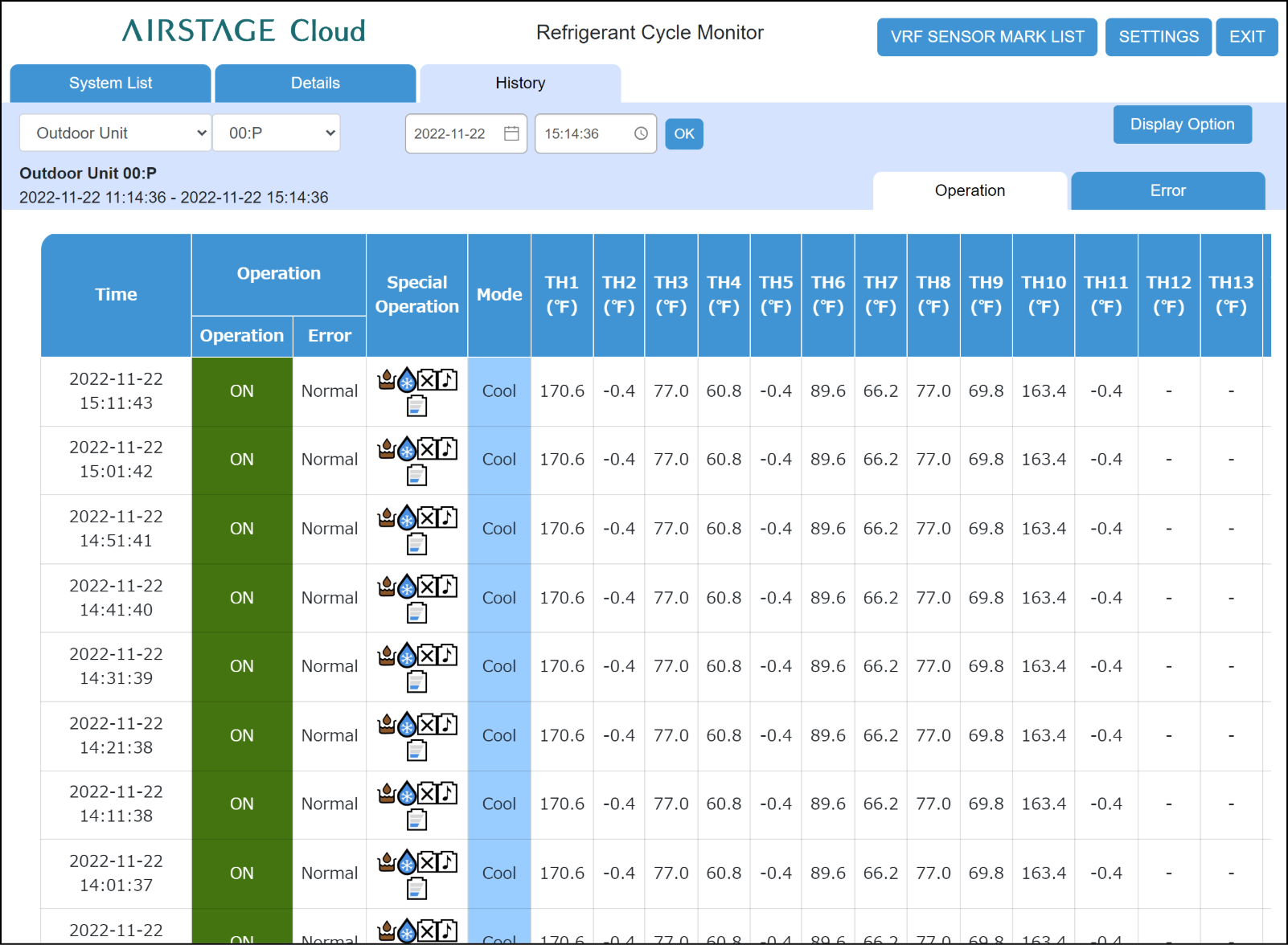

Display item of outdoor unit
| Time | Displays the data acquisition time. (*1) |
| Operation | Displays the operating status (ON/OFF) and unit status (Normal/Error). |
| Special operation icon | Displays the special operation status using icon. Refer to "List of icon for special operation". |
| Mode | Displays the operating mode |
* For each sensor information, tap the [VRF SENSOR MARK LIST] button.

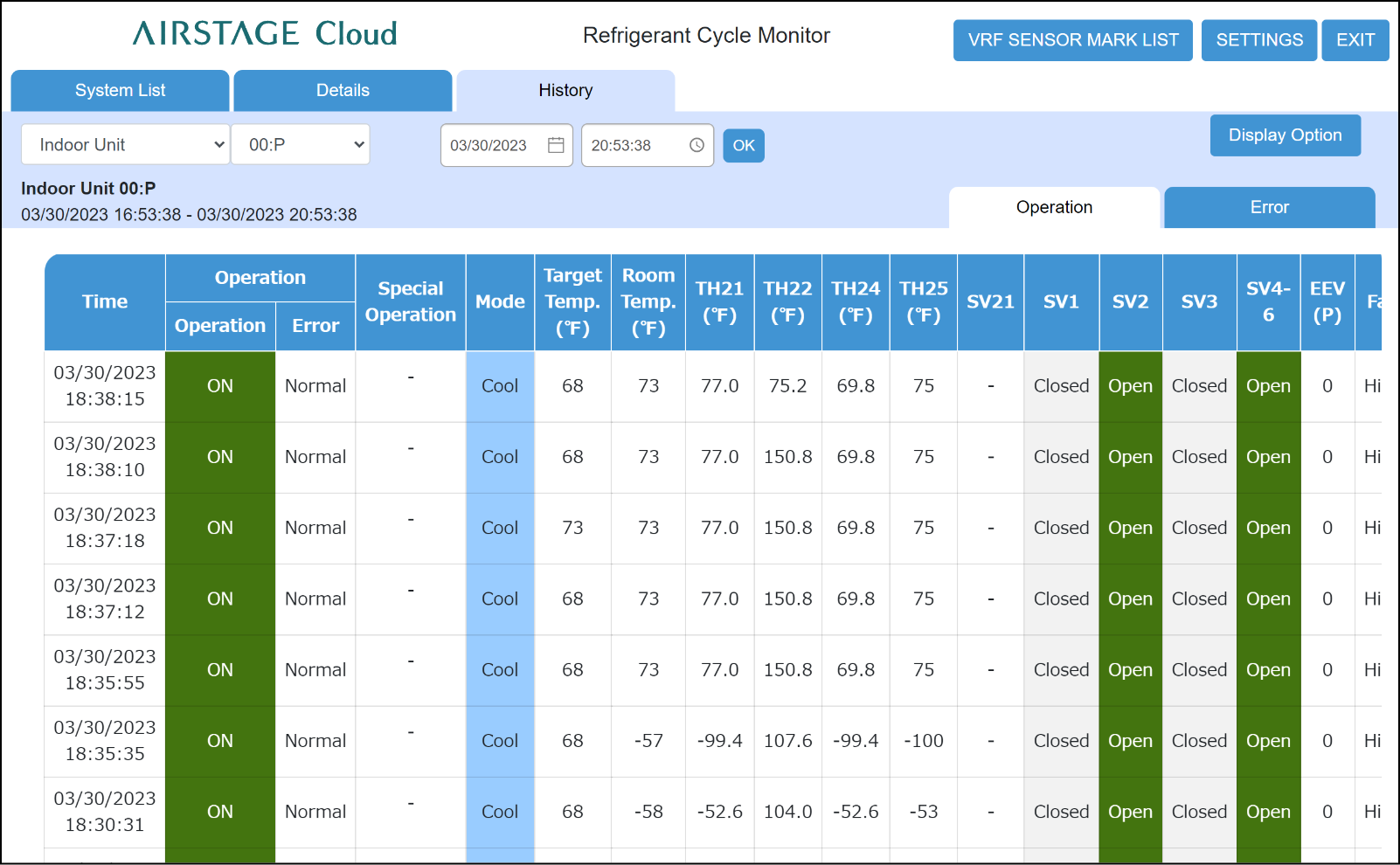

Display item of indoor unit
| Time | Displays the data acquisition time. (*1) |
| Operation | Displays the operating status (ON/OFF) and unit status (Normal/Error). |
| Special operation icon | Displays the special operation status using icon. Refer to "List of icon for special operation". |
| Mode |
Displays the operating mode. [ |
| Target Temp. | Displays the setting temperature. (*2) Units display is [°C] or [°F]. Dual Setpoint Auto: Set the set temperature for cooling and the set temperature for heating separately. During the Dual Setpoint Auto mode operation, when the room temperature exceeds the set temperature for cooling, the cooling operation is performed, and when the room temperature falls below the set temperature for heating, the heating operation is performed. (It can be used only when the setting of the indoor unit compatible with this function is valid.) |
| Room Temp. | Displays the room temperature. (*2) Units display is [°C] or [°F]. |
Up/down Airflow Direction |
Displays up/down airflow louver position. |
Left/right Airflow Direction |
Displays left/right airflow louver position. |
] icon, if displayed, signifies that mode mismatch has occurred due to illegal operation.
