Outdoor unit detail setting screen

Start-up

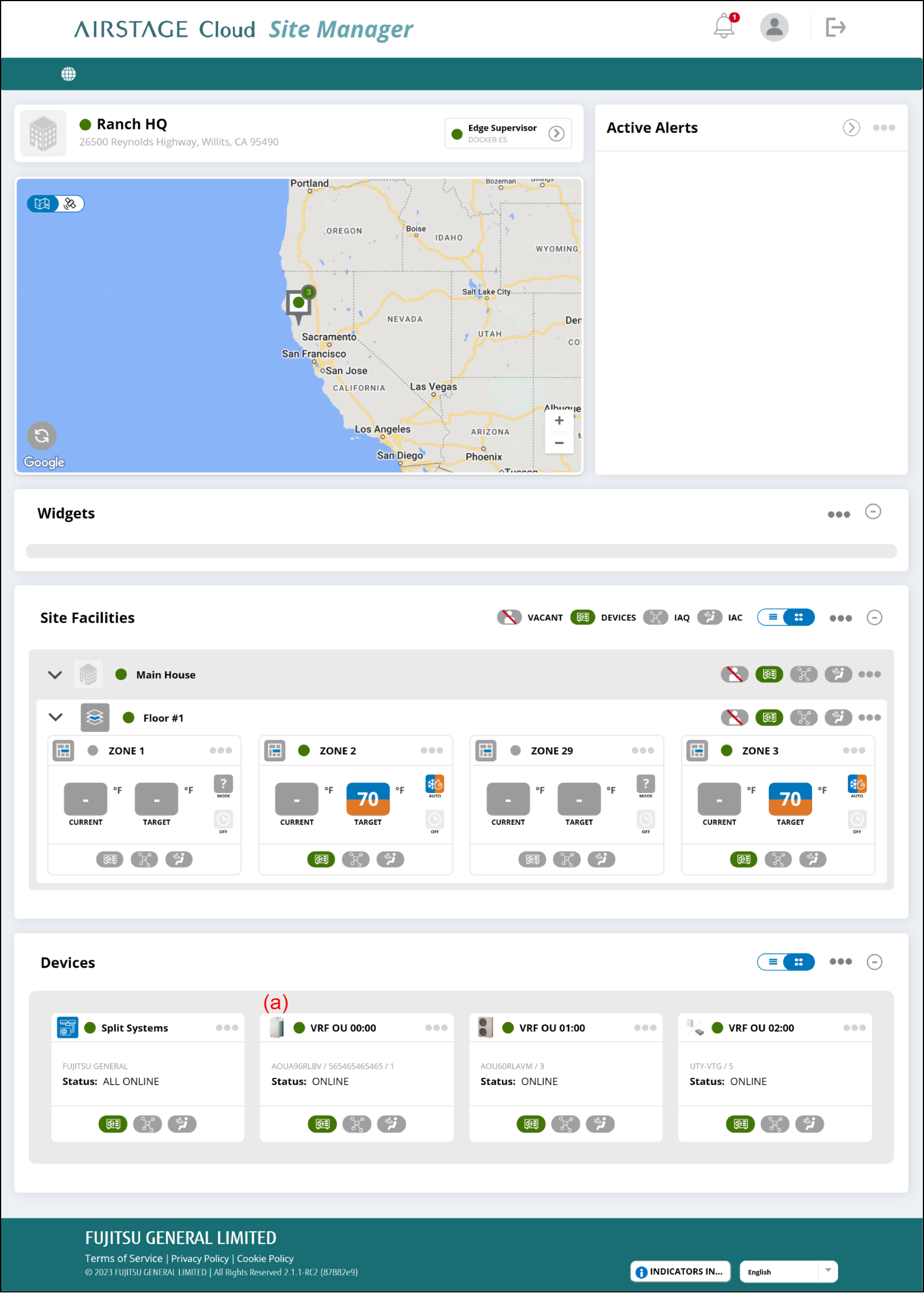

1. Select the Image Link (a) on “Site Dashboard” screen.

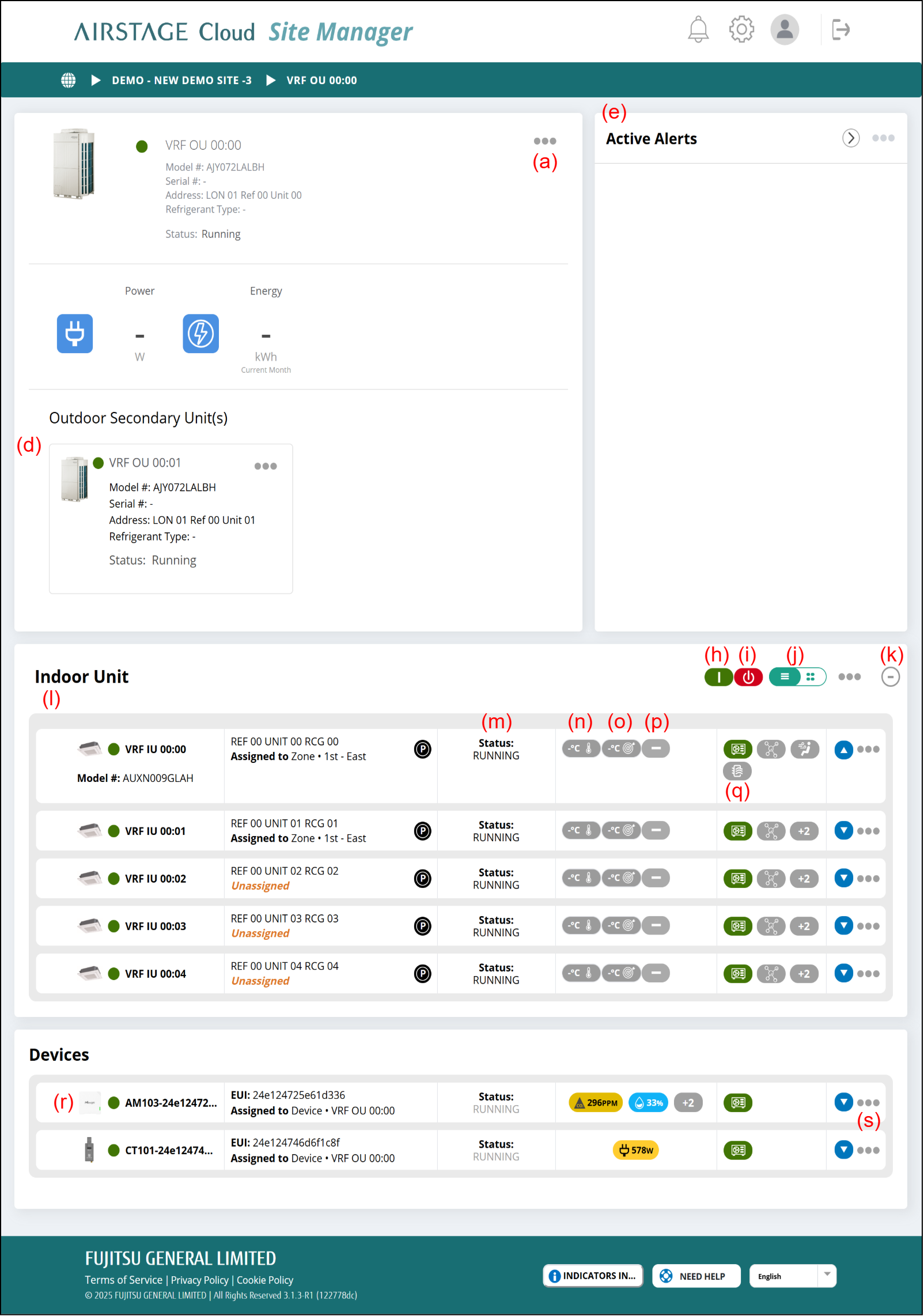

Outdoor unit setting screen

Outdoor unit can be set.

(a) Link menu

• [Configure]
  Displays the "Outdoor Unit Configuration" window.
• [Service]
  Moves to the "Refrigerant Cycle Monitor" screen.

(b) [-+] button
    Expands or collapses the display.

(d) Image link
   Displays "Outdoor Secondary Unit Configuration" window.

(e) Active Alerts screen
   Alerts appears in necessary. For details, refer to "Alert and notification".

(h) Starts the all indoor units.

(i) Stops the all indoor units.

(j) Display switching button

   Switches between card and list display.

(k) [-+] button
    Expands or collapses the display.

(l) Displays the Indoor Unit Detail Setting.

(m) Operating status

(n) Displays the current room temperature.

(o) Displays the target temperature of the indoor unit.

(p) Filter icon
    Displays the status of Filter sign.

(q) Mode icon
    Displays the mode of indoor units.

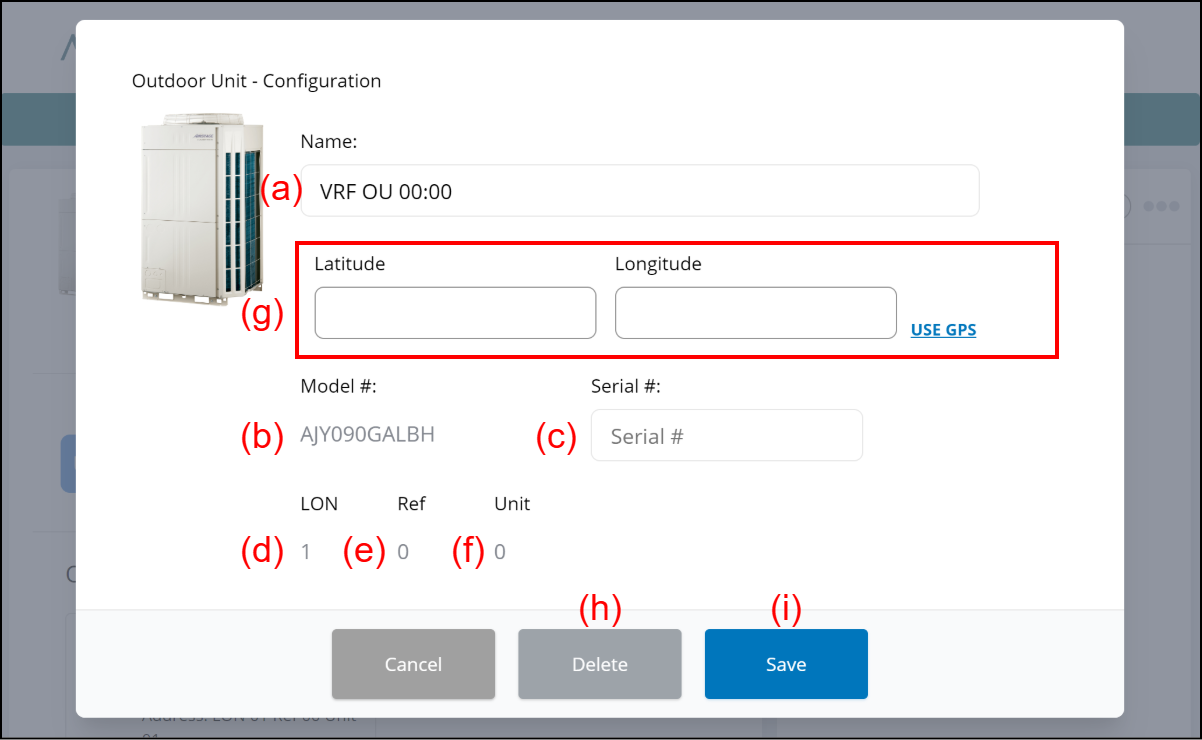

Outdoor Unit Configuration window

(a) Enter the name.

(b) Enter the model name.

(c) Enter the serial No.

(d) Lon address is displayed.

(e) Refrigerant system address is displayed.

(f) Unit address is displayed.

(g) Input the latitude and longitude.
   After setting the coordinates, the location of the outdoor unit is shown on the map of "Site Dashboard" screen.

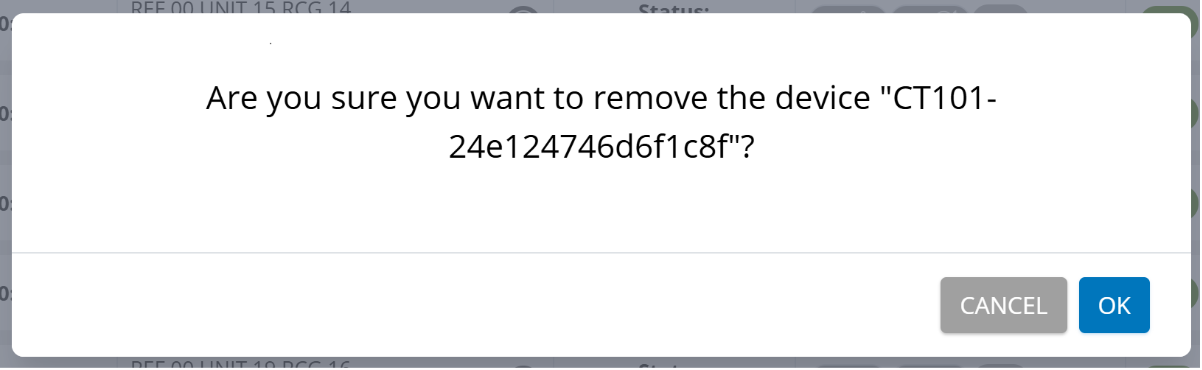

(h) [Delete] button
   Deletes the setting.

(i) [Save] button
   Saves the setting.

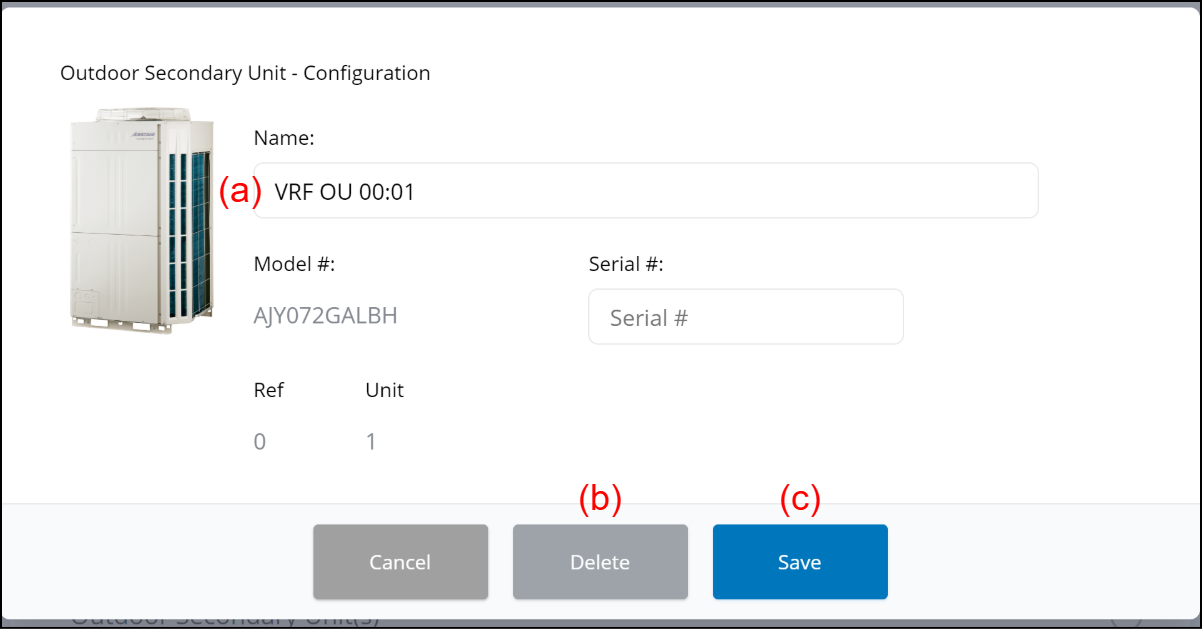

Outdoor Secondary unit Configuration window

(a) Enter the model name.

(b) [Delete] button
   Deletes the setting.

(c) [Save] button
   Saves the setting.
