The Details Report screen can be displayed by tapping [REPORT] tab at the Control area.

Unit information of selected refrigerant system and Check List results of the time set by Control Area are output in PDF file.

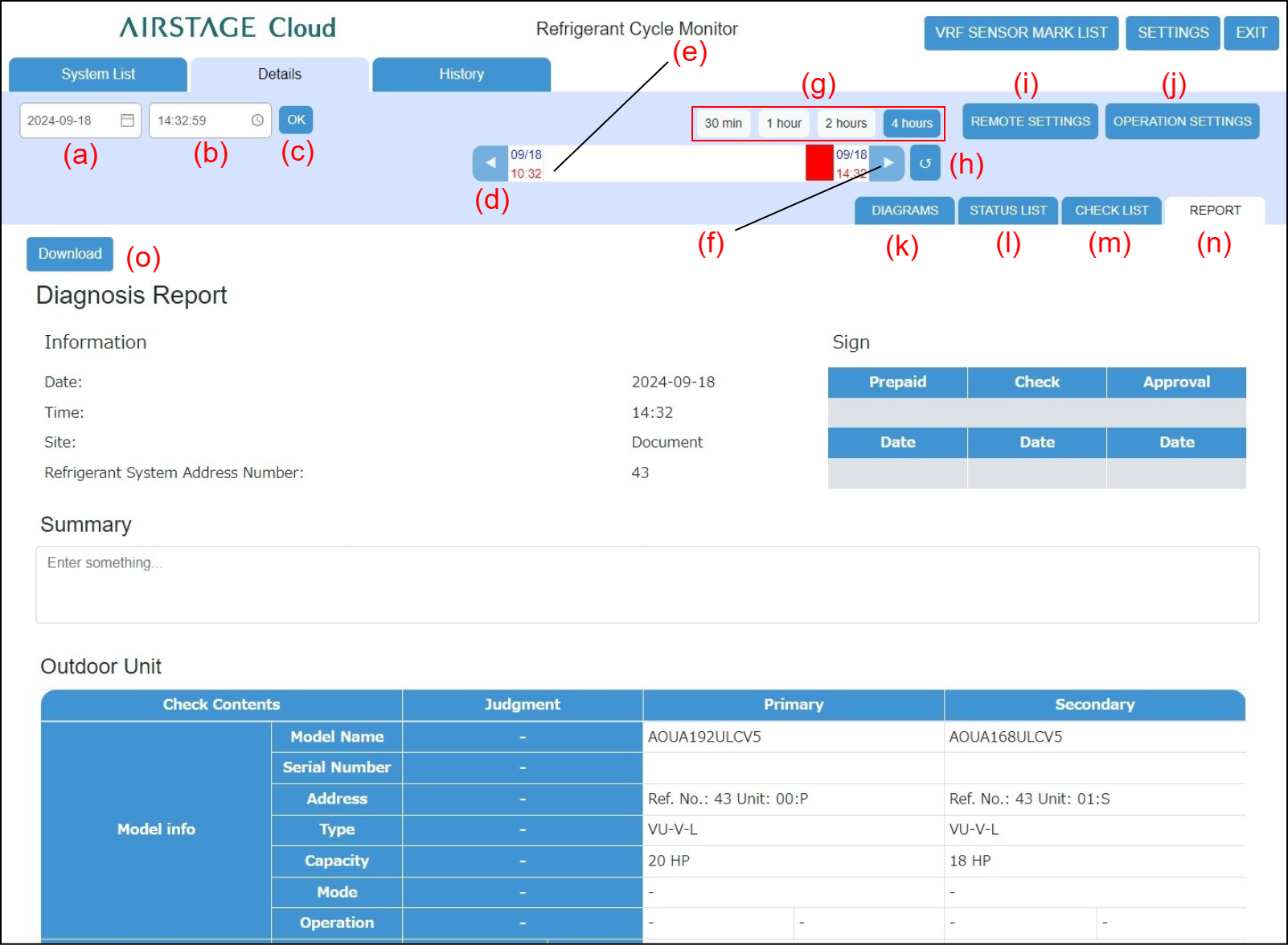

Control area

(a) Date setting field

Sets the date of data you want to display at the Details Report screen.

(b) Time setting field

Sets the time of data you want to display at the Details Report screen.

(c) [OK] button

Confirms the date and time set at (a) and (b) and updates the screen.

(d) [] button

Sets the time displayed on the gauge before the time currently displayed.

(e) 4 hours gauge

Sets the time displayed on Report. The time range that can be displayed on the gauge is set by (g) button.

The date and time are set by moving the probe using the drag and drop of mouse.

(f) [] button

Advances the time displayed on the gauge ahead of the time currently displayed.

(g) [Gauge Time Selection] button

Specifies the X-axis scale (30 min / 1 hour / 2 hours / 4 hours) of the graph.

(h) []  (Auto Refresh) button

Updates the screen to the latest data.

[] (Blue): Updates the screen to the latest data automatically.

[] (Gray): Does not update the screen automatically.

(i) [REMOTE SETTINGS] button

Displays the “Remote Settings” modal. For details, refer to “Remote Function Setting”.

(j) [OPERATION SETTINGS] button

Operates the indoor units for RC group. Tap the [Send] button after operation.

(k) [DIAGRAMS] tab

Displays the Details Diagrams screen.

(l) [STATUS LIST] tab

Displays the Details Status List screen.

(m) [CHECK LIST] tab

Displays the Details Check List screen.

(n) [REPORT] tab

Displays the Details Report screen.

(o) [Download] button

Outputs the PDF file.
