Wall Mounted iMax CETA ASMG36CETA

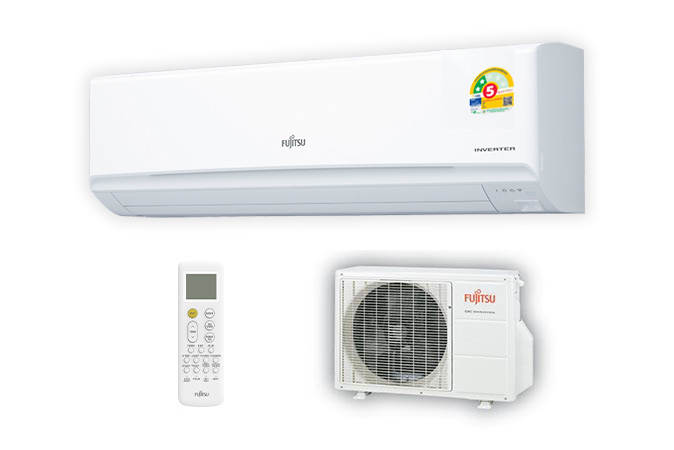

Indoor unit, Remote controller, Outdoor unit

R32 10 Years Warranty 2Star
Indoor Unit :
ASMG36CETA
Outdoor Unit :
AOMG36CETA
Download :
Catalogues

Features

  • Human sensor’s coverage
  • Super MAX Cooling (Fast Cooling)

Feature Icons

Human sensor (Energy Saving): The air conditioner switches to operate on reduced power when it detects no human movement in the room. Vertical swing louver: The louver automatically swings up and down. Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Filter sign: Indicates the filter cleaning period by blinking. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Low noise mode: Reduces the noise level of an outdoor unit. Automatic double swings: Activates complex swing action of the louver in both horizontal and vertical directions. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Weekly timer: Different ON-OFF times can be set for each day. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic. Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air.

Capacity

Cooling   10.6 kW

RANK : 5★★

Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
EGAT Capacity Cooling 36200 (12600 - 36200) BTU/h
SEER 19 BTU/h
Rank 5 ★★
Capacity Cooling 10.6 (3.7 - 10.6) kW
Input Power Cooling 3.470 kW
EER Cooling 3.05 W/W
Starting Current 15.8 A
Max. Operating Current Cooling 18.80 A
Moisture Removal 4.50 l/h
Sound Pressure Level*2 Indoor (Cooling) High 53 dB(A)
Middle 45 dB(A)
Low 40 dB(A)
Quiet 32 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 55 dB(A)
Air Flow Rate Indoor (Cooling) High 1520 m³/h
Outdoor (Cooling) High 4150 m³/h
Net Dimensions
Indoor		 Height 340 mm
Width 1150 mm
Depth 280 mm
Net Dimensions
Outdoor		 Height 788 mm
Width 940 mm
Depth 320 mm
Net Weight Indoor 16.0 kg
Outdoor 53.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Drain Hose Diameter φ13.8(I.D.), φ15 to φ16.8(O.D.) mm
Max Pipe Length (Pre Charge) 50.0 (20.0) m
Max Height Difference 30 m
Operation Range Cooling 18 to 52 °CDB
Refrigerant Type R32
Charge 1700 g
Scroll
*2.
The noise value is the value when measured in an anechoic room. When measured in the actual installed state,surrounding noise and reflections are received and the measured value is usually larger than the indicated value.
