Medium Static Pressure Duct (Compact Size) ARXG30KHTAP / AOYG30KBTB

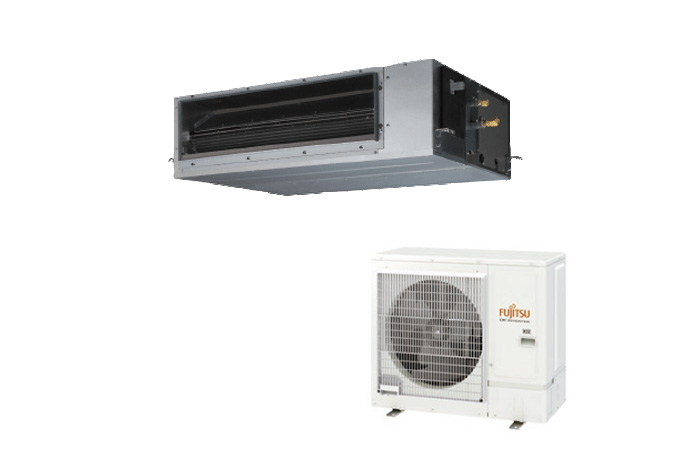

Indoor unit, Remote controller, Outdoor unit

ALL DC I-PAM V-PAM R32 10 Years Warranty EGAT★1 NEW
Indoor Unit :
ARXG30KHTAP
Outdoor Unit :
AOYG30KBTB
Download :
Catalogues

Features

  • Highly efficient and quiet operation
  • Small and lightweight outdoor unit
  • Automatic airflow adjustment
  • Low ambient operation

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Setting temperature range limitation: Sets the minimum and maximum limits on room temperature to establish the right balance between energy saving and a comfortable environment. Set temperature auto return: The setting temperature automatically returns to the previously set temperature. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part. Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation. Weekly timer: Different ON-OFF times can be set for each day. Filter sign: Indicates the filter cleaning period by blinking. External ON/OFF input Special Cooling: Special Cooling Automatic airflow adjustment: Automatically detects required airflow in each application case and adjusts the volume. Drain pump equipped as standard Blue fin

Capacity

Cooling   8.5 kW
Heating   10.0 kW

Specification

Power source Phase Single-phase
Voltage 230 V
Frequency 50 Hz
EGAT Capacity Cooling 30000 (9600 - 34100) BTU/h
SEER 18 BTU/h
Rank 5 ★
Capacity Cooling 8.5 (2.8 - 10.0) kW
Heating 10.0 (2.7 - 11.2) kW
Input Power Cooling 2.650 kW
Heating 2.630 kW
EER Cooling 3.21 W/W
COP Heating 3.80 W/W
Pdesign Cooling 8.5 kW
Heating (-10°C) 8.0 kW
SEER Cooling
SCOP Heating (Average) 4.00 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Starting Current 11.7 A
Max. Operating Current Cooling 22.60 A
Heating 22.60 A
Annual Energy Consumption Cooling 477 kWh/a
Heating 2796 kWh/a
Moisture Removal 2.30 l/h
Sound Pressure Level*2 Indoor (Cooling) High 36 dB(A)
Middle 33 dB(A)
Low 30 dB(A)
Quiet 29 dB(A)
Indoor (Heating) High 36 dB(A)
Middle 33 dB(A)
Low 30 dB(A)
Quiet 29 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 53 dB(A)
Outdoor (Heating) High 55 dB(A)
Sound Power Level Indoor (Cooling) High 63 dB(A)
Indoor (Heating) High 65 dB(A)
Outdoor (Cooling) High 68 dB(A)
Outdoor (Heating) High 69 dB(A)
Air Flow Rate Indoor (Cooling) High 1700 m³/h
Outdoor (Cooling) High 3750 m³/h
Static pressure range (Standard) 30 - 200 (47) Pa
Net Dimensions
Indoor		 Height 300 mm
Width 1000 mm
Depth 700 mm
Net Dimensions
Outdoor		 Height 788 mm
Width 940 mm
Depth 320 mm
Net Weight Indoor 36.0 kg
Outdoor 52.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max Pipe Length (Pre Charge) 50.0 (30.0) m
Max Height Difference 30 m
Operation Range Cooling -15 to 46 °CDB
Heating -15 to 24 °CDB
Refrigerant Type R32
Global Warming Potential 675
Charge 1900 g (1.283 CO2eq–T)
Scroll
*2.
The noise value is the value when measured in an anechoic room. When measured in the actual installed state,surrounding noise and reflections are received and the measured value is usually larger than the indicated value.

Dimensions

Indoor Unit : ARXG30KHTAP

Indoor unit
