Wall Mounted iMax CGTA ASMG12CGTA

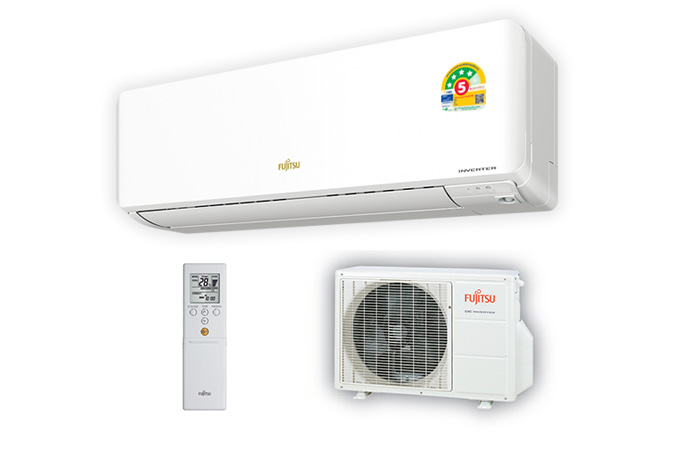

Indoor unit, Remote controller, Outdoor unit

R32 10 Years Warranty 4Star
Indoor Unit :
ASMG12CGTA
Outdoor Unit :
AOMG12CGTA
Download :
Catalogues

Features

  • Human sensor’s coverage
  • Air conditioner filter features

Feature Icons

Human sensor (Energy Saving): The air conditioner switches to operate on reduced power when it detects no human movement in the room. Vertical swing louver: The louver automatically swings up and down. Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Filter sign: Indicates the filter cleaning period by blinking. Powerful mode: The air conditioner operates at the maximum airflow level and compressor speed to cool or warm the room quickly. Low noise mode: Reduces the noise level of an outdoor unit. Automatic double swings: Activates complex swing action of the louver in both horizontal and vertical directions. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Sleep timer: A micro-computer gradually changes the room temperature automatically to promote a comfortable night's sleep. Weekly timer: Different ON-OFF times can be set for each day. Ion deodorization filter: The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by an ultra-fine-particle ceramic. Apple-catechin filter: The Apple-catechin filter uses static electricity to clean fine particles and dust from the air.

Capacity

Cooling   3.5 kW

RANK : 5★★★★

Specification

Power source Phase Single-phase
Voltage 220 V
Frequency 50 Hz
EGAT Capacity Cooling 12165 (3100 - 15400) BTU/h
SEER 23.27 BTU/h
Rank 5 ★★★★
Capacity Cooling 3.5 (0.9 - 4.5) kW
Input Power Cooling 0.830 kW
EER Cooling 4.22 W/W
Starting Current 4.2 A
Max. Operating Current Cooling 9.00 A
Moisture Removal 1.80 l/h
Sound Pressure Level*2 Indoor (Cooling) High 43 dB(A)
Middle 36 dB(A)
Low 30 dB(A)
Quiet 20 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 49 dB(A)
Air Flow Rate Indoor (Cooling) High 770 m³/h
Outdoor (Cooling) High 1680 m³/h
Net Dimensions
Indoor		 Height 270 mm
Width 834 mm
Depth 222 mm
Net Dimensions
Outdoor		 Height 542 mm
Width 799 mm
Depth 290 mm
Net Weight Indoor 10.0 kg
Outdoor 32.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(I.D.), φ15 to φ16.8(O.D.) mm
Max Pipe Length (Pre Charge) 20.0 (15.0) m
Max Height Difference 15 m
Operation Range Cooling 18 to 46 °CDB
Refrigerant Type R32
Charge 850 g
Scroll
*2.
The noise value is the value when measured in an anechoic room. When measured in the actual installed state,surrounding noise and reflections are received and the measured value is usually larger than the indicated value.
