Compact Grid Standard Type AUXB007GLEH
2.2 kW
2.8 kW
Specification
| Power source | Phase | Single phase |
|---|---|---|
| Voltage | ~230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 2.2 kW |
| Heating | 2.8 kW | |
| Input Power | 25 W | |
| Air Flow Rate | High | 540 m3/h |
| Middle | 450 m3/h | |
| Low | 350 m3/h | |
| Sound Pressure Level*2 | High | 34 dB(A) |
| Middle | 30 dB(A) | |
| Low | 25 dB(A) | |
| Net Dimensions | Height | 245 mm |
| Width | 570 mm | |
| Depth | 570 mm | |
| Net Weight | 15 kg (33 lbs) | |
| Connection Pipe Diameter | Liquid (Flare) | 6.35 mm |
| Gas (Flare) | 9.52 mm | |
| Drain Hose Diameter | Indoor | 25 mm |
| Outdoor | 32 mm | |
Scroll
| Cassette Grille Model Name | UTG-UFYC-W | ||
|---|---|---|---|
| Net Dimensions Cassette Grille |
Height | 50 mm | |
| Width | 700 mm | ||
| Depth | 700 mm | ||
| Net Weight Cassette Grille |
2.6 kg (6 lbs) | ||
Scroll
- Note:
- Specifications are subject to the following conditions:
- Cooling:
- Indoor temperature of 27°C DB/19°C WB; outdoor temperature of 35°C DB/24°C WB
- Heating:
- Indoor temperature of 20°C DB/(15°C WB); outdoor temperature of 7°C DB/6°C WB
- Pipe length:
- 7.5 m Height difference between outdoor unit and indoor unit: 0 m
- Voltage:
- 230 V

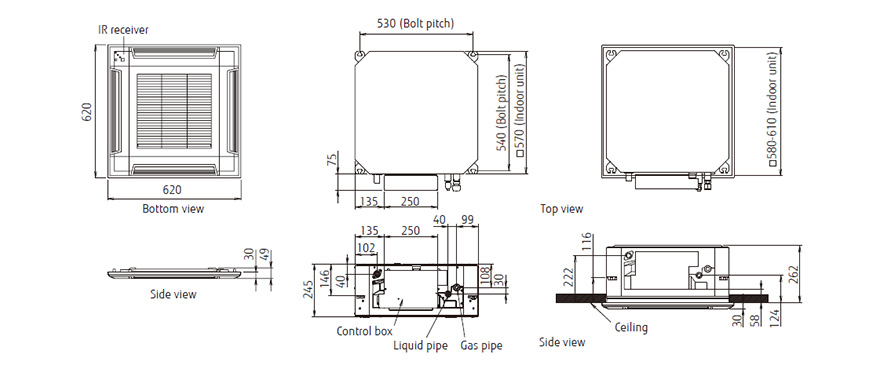

Dimensions
Indoor Unit : AUXB007GLEH
