Airstage (VRF Systems) Indoor Unit Compact Cassette
![](/shared/us/img-0000-vrf-indoor-c-cassette-grid-02.png)
- Download :
-
Catalog
Model
208/230V Single-Phase | |
---|---|
AUUA4TLAV1 / TLAV2 | |
AUUA7TLAV / TLAV2 | |
AUUA9TLAV / TLAV2 | |
AUUA12TLAV / TLAV2 | |
AUUA14TLAV / TLAV2 | |
AUUA18TLAV / TLAV2 | |
AUUA24TLAV / TLAV2 |

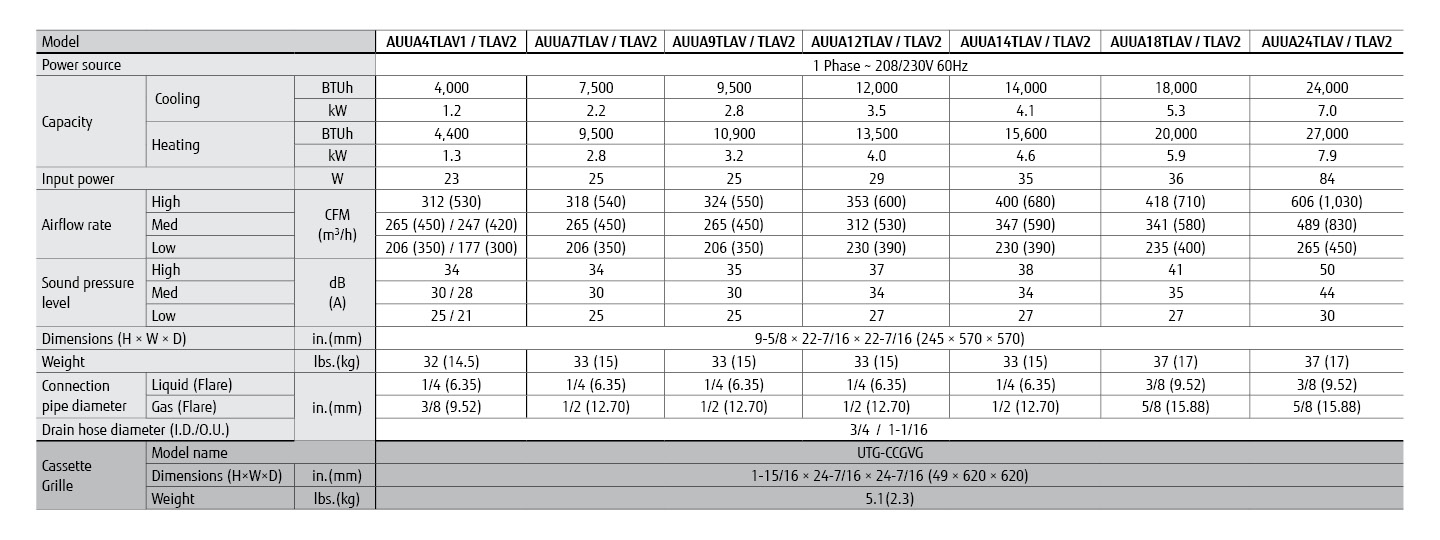

Specifications
- Note :
- Specifications are based on the following conditions.
Built-in protective functions may limit capacity or shut off unit if unit is operated outside of unit design operating temperature ranges. - Cooling :
- Indoor temperature of 80°F(26.7°C)DB/67°F(19.4°C)WB,and outdoor temperature of 95.0°F(35°C)DB/75°F(23.9°C)WB.
- Heating :
- Indoor temperature of 70°F(21.1°C)DB/60°F(15.6°C)WB,and outdoor temperature of 47°F(8.3°C)DB/43°F(6.1°C)WB.
- Pipe length :
- 25ft.(7.5 m), Height difference : 0ft.(0 m) (Outdoor unit - Indoor unit).
- * :
- This value is “cooling operation / heating operation”.
Dimensions
![](/shared/us/img-fcus-vrf-indoor-c-cassette-grid-dimensions-01.jpg)
Feature
Compact and stylish panel design
![](/shared/us/img-fcus-vrf-indoor-c-cassette-grid-stylish-panel-design-01.jpg)

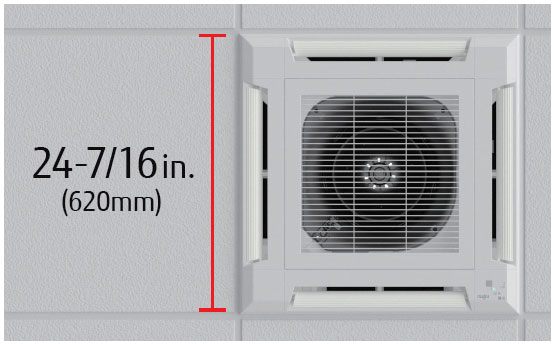

Compact and stylish panel design fits the grid type ceiling. It is a linear design suitable for grid shape of 24-7/16in.(620mm) × 24-7/16in.(620mm) grid ceiling.
Evenly spread air distribution across the heat exchanger is possible due to the new 2 stage turbo fan which producestwo separate airflow streams.
Easy maintenance
![](/shared/us/img-fcus-vrf-indoor-c-cassette-easy-maintenance01-01.jpg)

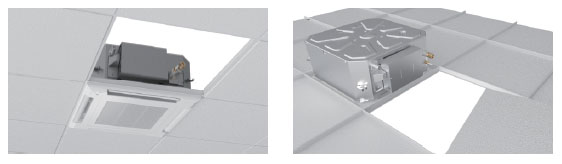

Maintenance is easier by removing the ceiling panel next to the grill, maintenance can be done, and new installation of inspection hole is unnecessary, so construction costs can be suppressed.
![](/shared/us/img-fcus-vrf-indoor-c-cassette-easy-maintenance02-01.jpg)

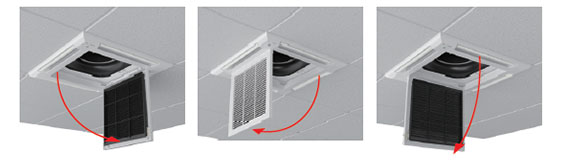

The air inlet grill can be installed in various directions, so maintenance is easy.
Flexible installation
![](/shared/us/img-fcus-vrf-indoor-c-cassette-grid-flexible-installation-01.jpg)

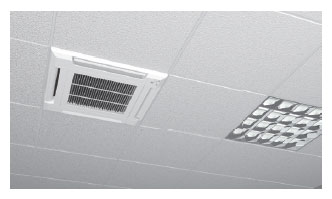

It is suitable for ceiling of grid type and it has high degree of freedom of installation and it can be installed beside light ingand ventilation opening.
Flexible installation
![](/shared/us/img-fcus-vrf-indoor-c-cassette-drain-pump-01.jpg)
High ceiling mode
![](/shared/us/img-fcus-vrf-indoor-c-cassette-grid-high-ceiling-mode-01.jpg)
The compact cassette can be installed up to a height of 9’ 10-1/8”(3.0m) (AUUA12/14/18/24).
Optional parts
- Air Outlet Shutter Plate :
- UTR-YDZB
- Insulation Kit for High Humidity :
- UTZ-KXGC
- Fresh Air Intake Kit :
- UTZ-VXAA
