Heat Recovery Type VR-II Series AOUA264TLCVG [3Phase]
Features
- High Operating Energy Efficiency
- Space saving combination
- Energy efficiency combination
- All inverter compressor
- Ideal heat exchanger path control
- Sophisticated operation control
- Flexible piping connection
- Flexible installation of Refrigerant Branch unit
Capacity
264,000 BTU/h
297,000 BTU/h
Specification
| Rating Capacity Range | 22 |
|---|---|
| Maximum Connectable Indoor Unit | 41 |
Scroll
| Power source | Phase | 3-phase |
|---|---|---|
| Voltage | 460 V | |
| Frequency | 60 Hz | |
| Capacity | Cooling | 264,000 BTU/h |
| 77.4 kW | ||
| Heating | 297,000 BTU/h | |
| 87.0 kW | ||
| Input Power | Cooling | 22.35 kW |
| Heating | 23.25 kW | |
| EER (Non-Ducted/Ducted) | Cooling | 10.9 / 10.9 Btu/hW |
| IEER (Non-Ducted/Ducted) | Cooling | 20.8 / 20.1 Btu/hW |
| COP (Non-Ducted/Ducted) | Heating | 3.45 / 3.40 W/W |
| SCHE (Non-Ducted/Ducted) | 22.0 / 22.0 Btu/hW | |
| Air Flow Rate | 3×6,533 CFM (3×11,100 m³/h) | |
| Sound Pressure Level | Cooling | 63 dB(A) |
| Heating | 63 dB(A) | |
| Maximum external static pressure | 0.32 in.WG (80 Pa) | |
| Compressor motor output | 3×7.5 kW | |
| Net Dimensions | Height | 66-9/16 inch (1,690 mm) |
| Width | 3×(36-5/8) inch (3×930 mm) | |
| Depth | 30-1/8 inch (765 mm) | |
| Net Weight | 3×597 lbs (3×271 kg) | |
| Refrigerant | Type | R410A |
| Charge | 3×26.01 lbs (3×11.8 kg) | |
| Connection Pipe Diameter | Liquid | 5/8 inch (15.88 mm) |
| Discharge Gas | 1-1/8 inch (28.58 mm) | |
| Suction Gas | 1-3/8 inch (34.92 mm) | |
| Operation Range | Cooling | 14 to 115 °FDB (-10 to 46 °CDB) |
| Heating | -4 to 70 °FDB (-20 to 21 °CDB) | |
Scroll
- Note :
- Specifications are based on the following conditions.
- Cooling :
- Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB, and outdoor temperature of 95°F (35.0°C) DB / 75°F (23.9°C) WB.
- Heating :
- Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB / 43°F (6.1°C) WB.
- Pipe length :
- 25ft. (7.5 m); Height difference between outdoor unit and indoor unit : 0ft. (0 m).
- *1
- Electrical data is only for outdoor unit.
Dimensions

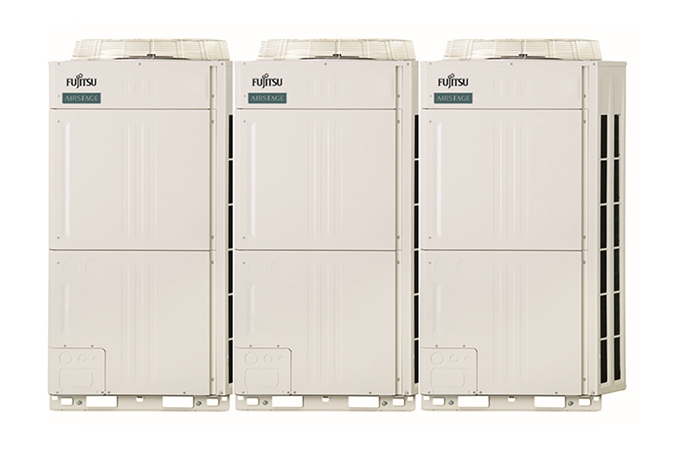

Outdoor Unit : AOUA264TLCVG
