Heat Pump for Small Capacity Type J-IVS Series AOU36RLAVS4
Specification
| Rating Capacity Range | 3 Ton HP |
|---|
Scroll
| Power source | Phase | Single-phase 1 |
|---|---|---|
| Voltage | 208/230 V | |
| Frequency | 60 Hz | |
| Air Flow Rate |
2,472 CFM
4200 m³/h |
|
| Sound Pressure Level | Cooling | 52 dB(A) |
| Heating | 54 dB(A) | |
| Maximum external static pressure |
0.10 in.WG
25 Pa |
|
| Compressor motor output | 2.1 kW | |
| Heat exchanger fin | Blue fin | |
| Net Dimensions | Height |
39- 5/16 inch
998 mm |
| Width |
38- 3/16 inch
970 mm |
|
| Depth |
14- 9/16 inch
370 mm |
|
| Net Weight |
196 lbs
89 kg |
|
| Refrigerant | Type | R410A |
| Charge |
8.82 lbs
4.0 kg |
|
| Connection Pipe Diameter | Liquid |
φ3/8 inch
φ9.52 mm |
| Gas |
φ5/8 inch
φ15.88 mm |
|
| Total pipe length |
262 ft.
80 m |
|
| Max. height difference (Outdoor Unit: Upper/Lower) |
98 / 98 ft.
30 / 30 m |
|
| Operation Range | Cooling |
23 to 115 °FDB
-5 to 46 °CDB |
| Heating |
-15 to 70 °FDB
-26 to 21 °CDB |
|
Scroll
- *
- There is no change from the conventional model.
- Note :
- Specifications are based on the following conditions.
- Cooling:
- Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB, and outdoor temperature of 95°F (35.0°C) DB / 75°F (23.9°C) WB.
- Heating:
- Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB / 43°F (6.1°C) WB.
- Pipe length:
- 25ft. (7.5 m); Height difference between outdoor unit and indoor unit : 0ft. (0 m).
Dimensions

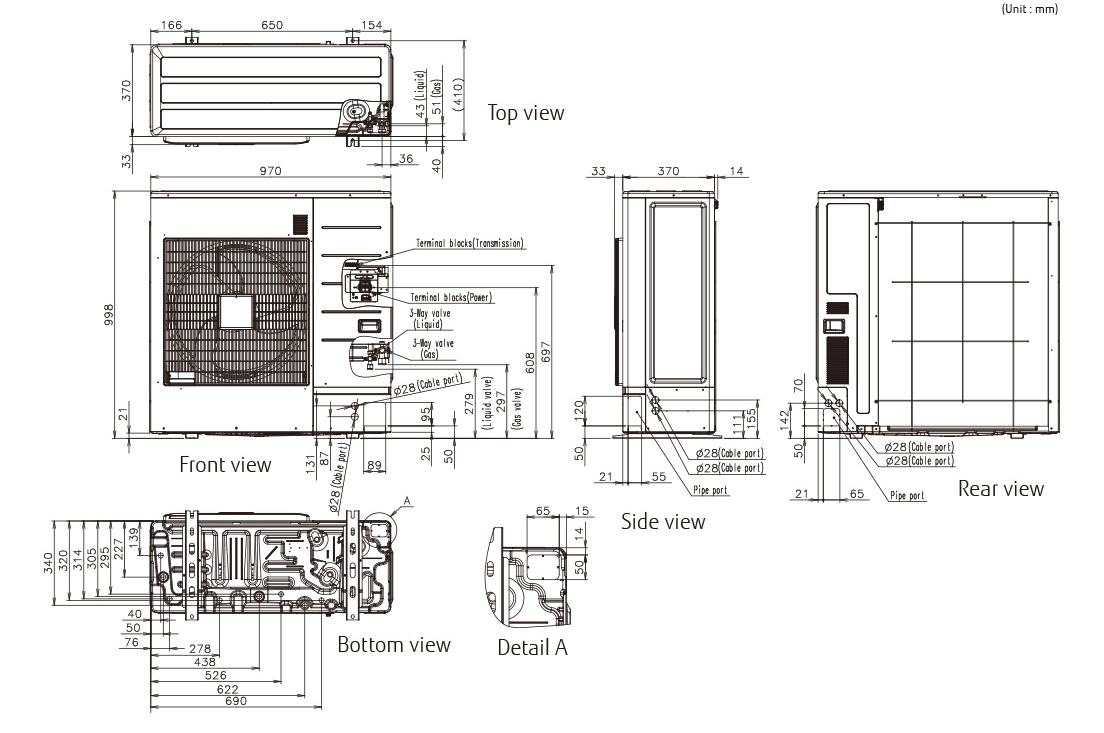

Outdoor Unit : AOU36RLAVS4
