Heat Recovery Type VR-II Series AOUA192TLCVG  [3Phase]

Outdoor unit

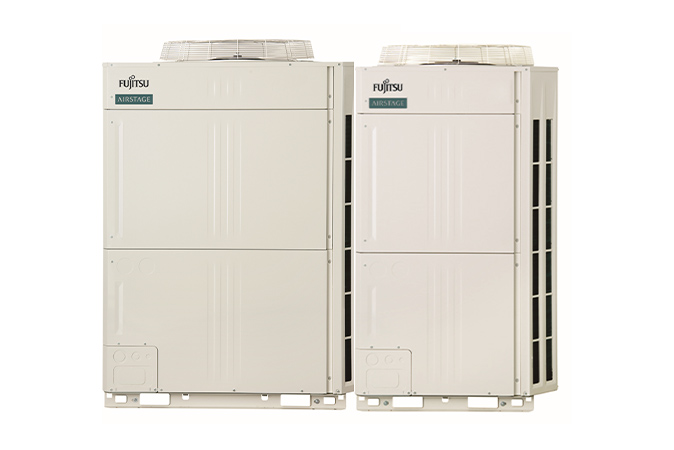

Outdoor Unit :
AOUA192TLCVG
Download :
Catalog

Features

  • High Operating Energy Efficiency
  • Space saving combination
  • Energy efficiency combination
  • All inverter compressor
  • Ideal heat exchanger path control
  • Sophisticated operation control
  • Flexible piping connection
  • Flexible installation of Refrigerant Branch unit

Capacity

Cooling  192,000 BTU/h
Heating  216,000 BTU/h


Specification

Rating Capacity Range 16
Maximum Connectable Indoor Unit 30
Scroll
Power source Phase 3-phase
Voltage 460 V
Frequency 60 Hz
Capacity Cooling 192,000 BTU/h
56.2 kW
Heating 216,000 BTU/h
63.3 kW
Input Power Cooling 15.87 kW
Heating 15.53 kW
EER (Non-Ducted/Ducted) Cooling 11.2 / 11.1 Btu/hW
IEER (Non-Ducted/Ducted) Cooling 24.3 / 20.5 Btu/hW
COP (Non-Ducted/Ducted) Heating 3.75 / 3.57 W/W
SCHE (Non-Ducted/Ducted) 27.1 / 25.0 Btu/hW
Air Flow Rate 6,533+7,652 CFM (11,100+13,000 m³/h)
Sound Pressure Level Cooling 62 dB(A)
Heating 63 dB(A)
Maximum external static pressure 0.32 in.WG (80 Pa)
Compressor motor output 7.5 + 11.0 kW
Net Dimensions Height 66-9/16 inch (1,690 mm)
Width (36-5/8)+(48-13/16) inch (930+1,240 mm)
Depth 30-1/8 inch (765 mm)
Net Weight 597+639 lbs (271+290 kg)
Refrigerant Type R410A
Charge 2×26.01 lbs (2×11.8 kg)
Connection Pipe Diameter Liquid 5/8 inch (15.88 mm)
Discharge Gas 7/8 inch (22.22 mm)
Suction Gas 1-1/8 inch (28.58 mm)
Operation Range Cooling 14 to 115 °FDB (-10 to 46 °CDB)
Heating -4 to 70 °FDB (-20 to 21 °CDB)
Scroll
Note :
Specifications are based on the following conditions.
Cooling :
Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB, and outdoor temperature of 95°F (35.0°C) DB / 75°F (23.9°C) WB.
Heating :
Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB / 43°F (6.1°C) WB.
Pipe length :
25ft. (7.5 m); Height difference between outdoor unit and indoor unit : 0ft. (0 m).
*1
Electrical data is only for outdoor unit.

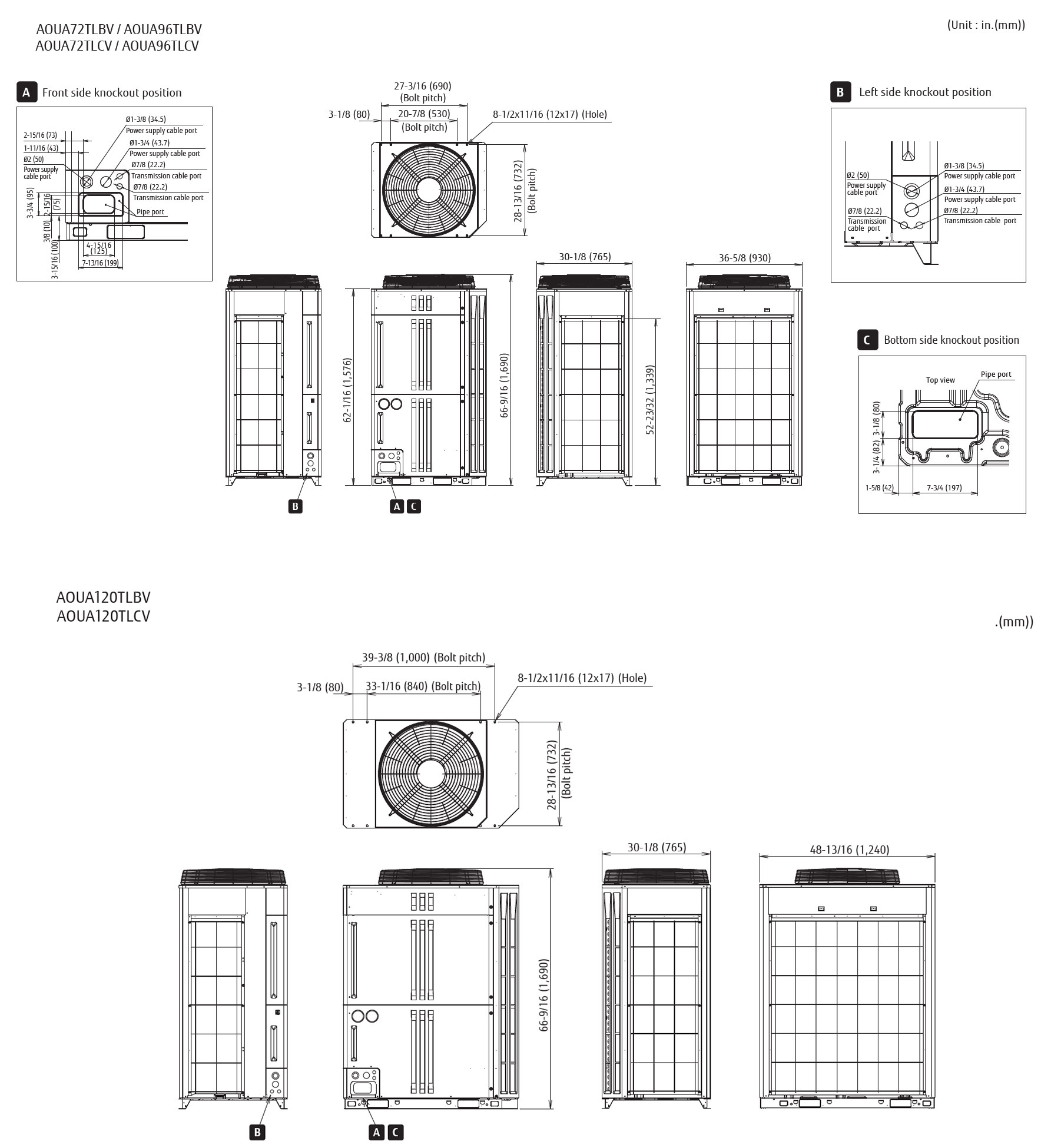

Dimensions

Outdoor Unit : AOUA192TLCVG

Outdoor unit
