HRV/ERV Solutions VS400 CMe
![](/shared/us/img-fcus-vrf-ventacity-vs250-cmh-01.png)
- Download :
-
Catalog
Dimensions
![](/shared/us/img-fcus-vrf-ventacity-vs400-cmh-dimensions-01.jpg)
Parts
![](/shared/us/img-fcus-vrf-ventacity-vs400-cmh-parts-01.jpg)
Feature
PERFORMANCE
![](/shared/us/img-fcus-vrf-ventacity-vs250-cmh-icon1-01.png)
Exceptional energy performance thanks to its aluminum counterflow heat exchanging core.
![](/shared/us/img-fcus-vrf-ventacity-vs250-cmh-icon2-01.png)
Significant cost of operation savings.
![](/shared/us/img-fcus-vrf-ventacity-vs250-cmh-icon3-01.png)
Quiet operation with fans that use electronically commutated motors (ECM) and backward curving fan blades.
FAN OPERATING RANGE
![](/shared/us/img-fcus-vrf-ventacity-vs400-cmh-fan-operating-range-01.jpg)
FAN VOLUME & POWER RANGE
Ext. Static Pressure(in. W.C.) (in. W.C.) |
0.52 | 1.27 | 2.01 | 2.70 |
---|---|---|---|---|
Maximum Flow (CFM) | 400 | 300 | 200 | 100 |
System Power (Watts) | 815 | 390 | 389 | 357 |
Scroll
LATENT EFFICIENCY
![](/shared/us/img-fcus-vrf-ventacity-vs400-cme-latent-efficiency-01.jpg)

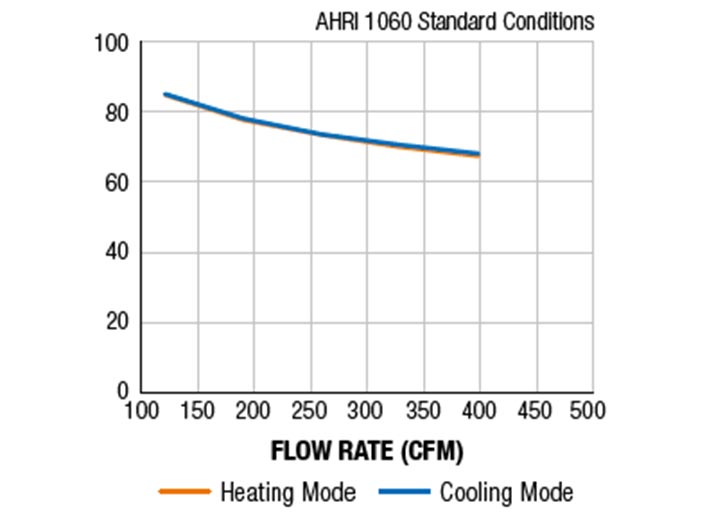

SENSIBLE EFFICIENCY
![](/shared/us/img-fcus-vrf-ventacity-vs400-cme-sensible-efficiency-01.jpg)
TOTAL EFFICIENCY
![](/shared/us/img-fcus-vrf-ventacity-vs400-cme-total-efficiency-01.jpg)
Specifications
Ventilation Flow – Max | 467 cfm |
---|---|
Ventilation Flow – Typical | 120 to 480 cfm |
Ventilation Type | Energy Recovery Ventilator (ERV) |
Heat Exchanger | Counterflow Polymer Static Plate |
Fan Type | Backward Curved, Centrifugal, EC |
Heat Recovery – Max | 79.2% |
Temperature Range | 41° F to 104° F |
Humidity | 90% RH |
Operation Modes | CAV, DCV, VAV, BMS, Economizer |
MECHANICAL
Weight | 203 lbs |
---|---|
Shipping Weight | 260 lbs |
Dimensions | 42.52" L x 12.2" W x 55.12" H |
Shipping Dimensions | 51" L x 18" W x 67" H |
OA Filter Dimensions | 18" x 9.25" W x 3.75" D Filter Class: MERV13 |
RA Filter Dimensions | 18" x 9.25" W x 3.75" D Filter Class: MERV9 |
ELECTRICAL
*Preheater | Inactive | Inactive | Active | Active |
---|---|---|---|---|
Voltage | 240 VAC | 208 VAC | 240 VAC | 208 VAC |
Phase | 1Φ | 1Φ | 1Φ | 1Φ |
Power Supply | 360 W | 360 W | 3.29 kW | 2.57 kW |
FLA – Max | 1.5 A | 1.7 A | 13.7 A | 12.2 A |
MCA | 1.6 A | 1.8 A | 16.8 A | 15.1 A |
MOP | 5 A | 5 A | 20 A | 15 A |
De-Ice Preheater | – | – | 2.93 kW | 2.21 kW |
Preheater Temp Rise | – | – | 12.5° C | 9.4° C |
Fan Motor Type | EC | |||
Maximum Power – 1 Fan | 170 W (0.23 hp) |
- *
- Preheater recommended for below-freezing outdoor temperatures.
