Heat Recovery Type VR-II Series AOUA120TLBV  [3Phase]

Outdoor unit

Outdoor Unit :
AOUA120TLBV
Download :
Catalog

Features

  • High Operating Energy Efficiency
  • Space saving combination
  • Energy efficiency combination
  • All inverter compressor
  • Ideal heat exchanger path control
  • Sophisticated operation control
  • Flexible piping connection
  • Flexible installation of Refrigerant Branch unit

Capacity

Cooling  120,000 BTU/h
Heating  135,000 BTU/h


Specification

Rating Capacity Range 10
Maximum Connectable Indoor Unit*1 18
Scroll
Power source Phase 3-phase
Voltage 208 / 230 V
Frequency 60 Hz
Capacity Cooling 120,000 BTU/h
35.2 kW
Heating 135,000 BTU/h
39.6 kW
Input Power Cooling 9.75 kW
Heating 10.11 kW
EER (Non-Ducted/Ducted) Cooling 11.3 / 11.3 Btu/hW
IEER (Non-Ducted/Ducted) Cooling 23.8 / 20.1 Btu/hW
COP (Non-Ducted/Ducted) Heating 3.61 /3.49 W/W
SCHE (Non-Ducted/Ducted) 25.4 / 25.8 Btu/hW
Air Flow Rate 7,652 CFM (13,000 m/³h)
Sound Pressure Level*2 Cooling 61 dB(A)
Heating 62 dB(A)
Maximum external static pressure 0.32 in.WG (80 Pa)
Compressor motor output 11.0 kW
Net Dimensions Height 66-9/16 inch (1,690 mm)
Width 48-13/16 inch (1,240 mm)
Depth 30-1/8 inch (765 mm)
Net Weight 639 lbs (290 kg)
Refrigerant Type R410A
Charge 26.01 lbs (11.8 kg)
Connection Pipe Diameter Liquid 1/2 inch (12.70 mm)
Discharge Gas 3/4 inch (19.05 mm)
Suction Gas 1-1/8 inch (28.58 mm)
Operation Range Cooling 14 to 115 °FDB (-10 to 46 °CDB)
Heating -4 to 70 °FDB (-20 to 21 °CDB)
Scroll
Note :
Specifications are based on the following conditions.
Cooling :
Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB, and outdoor temperature of 95°F (35.0°C) DB / 75°F (23.9°C) WB.
Heating :
Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB / 43°F (6.1°C) WB.
Pipe length :
25ft. (7.5 m); Height difference between outdoor unit and indoor unit : 0ft. (0 m).
*1
Electrical data is only for outdoor unit.

Dimensions

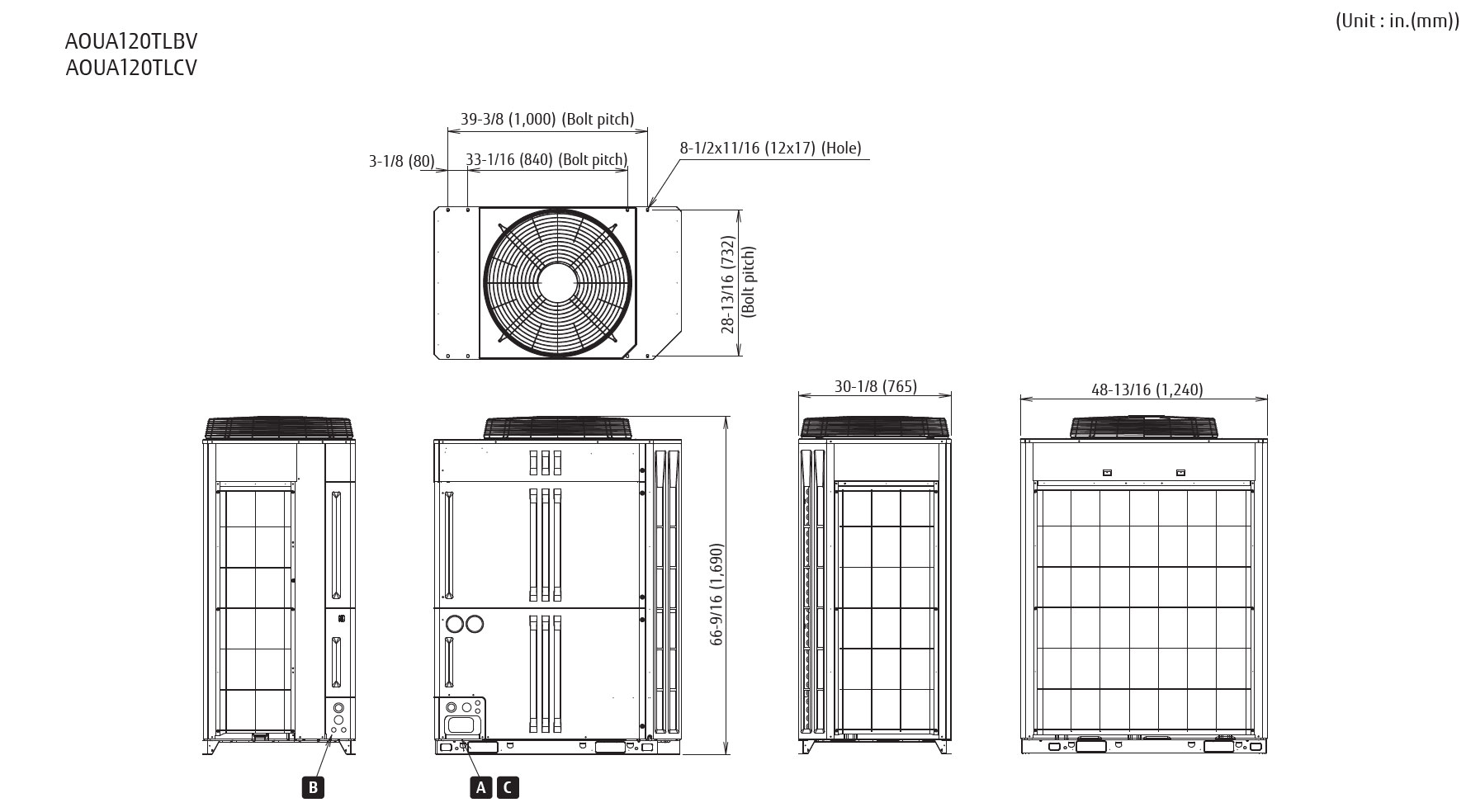

Outdoor Unit : AOUA120TLBV

Outdoor unit
