Individual fan
NOTE |
It can be set only for models with "All fan/Individual fan switching” (equipped with side fans) |
Fan Speed and Airflow Direction can be set for the main fan and side fans, respectively.
- Tap (a) to open the Airflow screen.
When the following screen is displayed, tap (b) to set “Comfort airflow” to “OFF.”

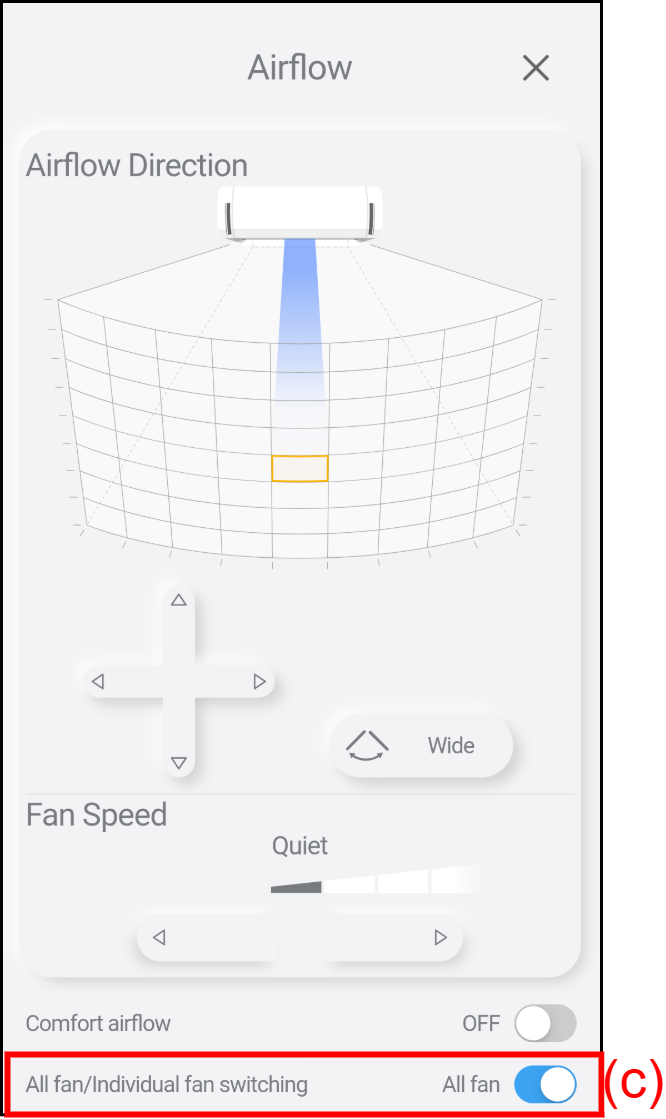

- Tap (c) to set “All fan/Individual fan switching” to “Individual fan.”
Fan Speed and Airflow Direction can be set for the main fan (d) and side fans (e), respectively.
Fan Speed

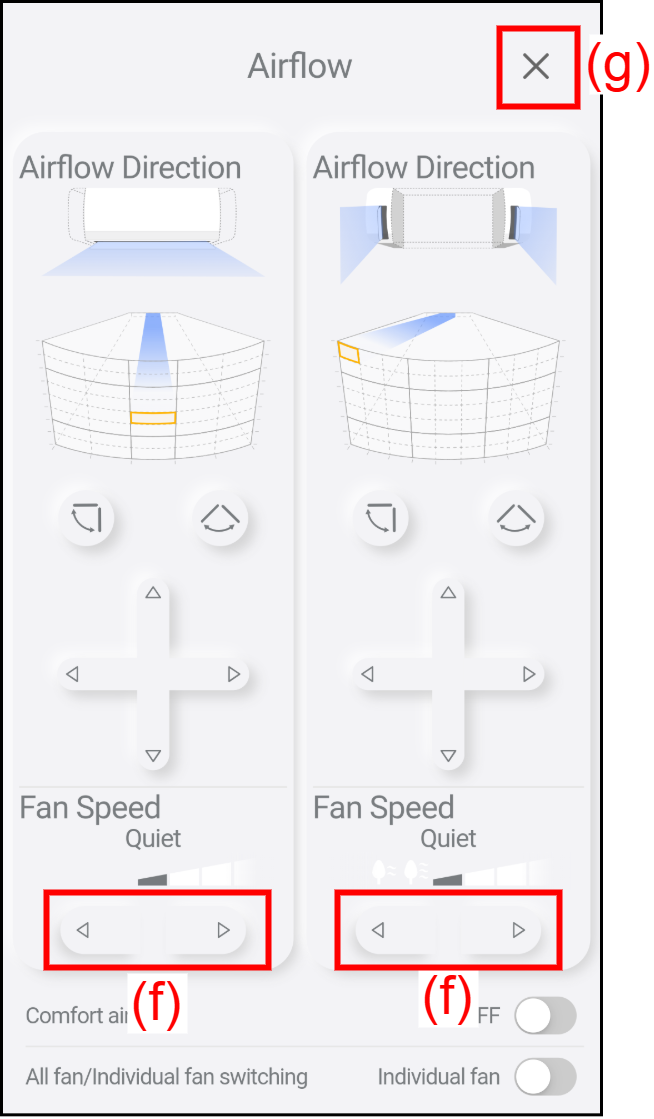

Tap (f) to set Fan Speed.
| Available Fan Speed settings*1 |
|
| When the main fan is selected | Quiet, Low, Med, High, Auto |
| When the side fans are selected | Natural weak*2, Natural*2, Quiet, Low, Med, High |
*1: Available Fan Speed settings differ depending on the model of the air conditioner. For details, refer to the air conditioner instruction manual.
*2: “Natural weak” and “Natural” settings send soft wind by changing the fan speed with a comfortable rhythm (1/f fluctuation) that people feel comfortable with, such as the calm sound of the sea and fresh wind on the plateau.
Tap (g) to close the Airflow screen.
Airflow Direction

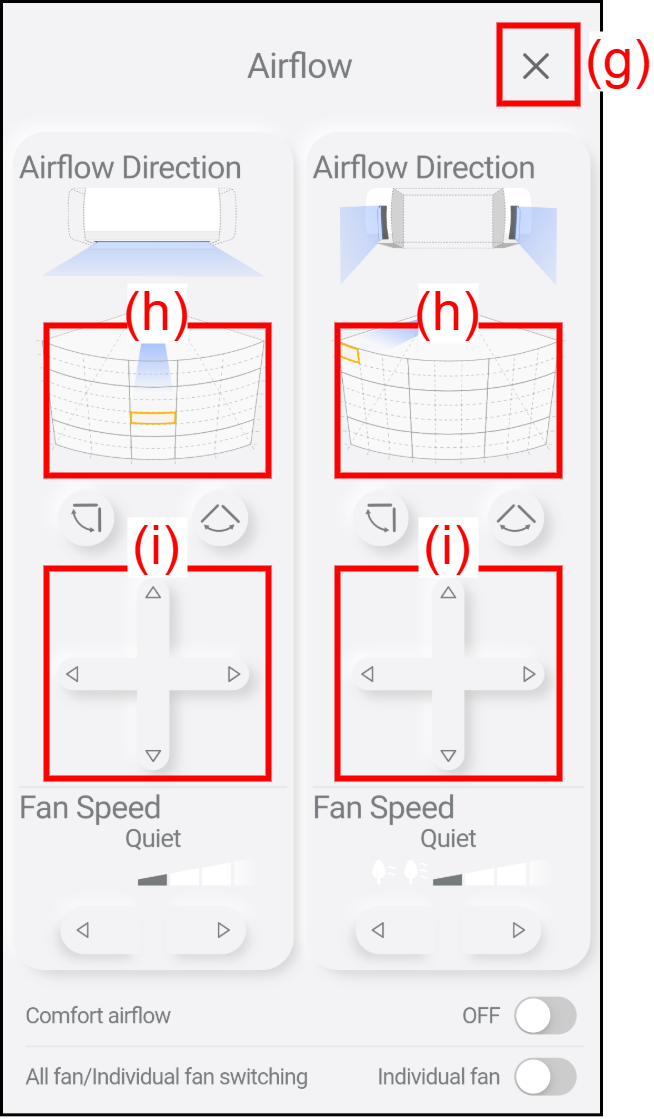

Tap (h) or (i) to set Airflow Direction.
Tap (g) to close the Airflow screen.

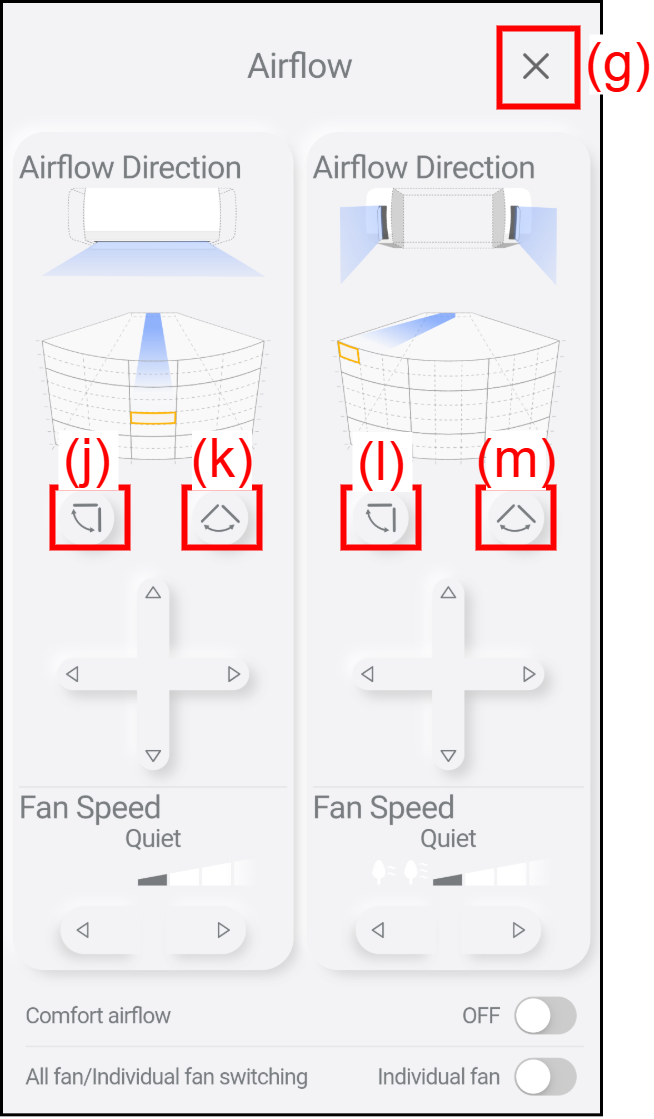

Swing, Wide, Auto
Tap the item to set swing, wide, and auto.
Available Airflow Direction settings*1 |
|
| (j) | Tap to set the “Up/Down Swing” of the main fan. |
| (k) | Tap to set the “Left/Right Swing” and “Wide” of the main fan. |
| (l) | Tap to set the “Automatic Up/Down*2” of the side fans. |
| (m) | Tap to set the “Automatic Left/Right*2” and “Wide” of the side fans. |
*1: Available Airflow Direction settings differ depending on the model of the air conditioner. For details, refer to the air conditioner instruction manual.
*2: Setting “Automatic Up/Down” or “Automatic Left/Right” switches the airflow direction position of the side fans at regular intervals.
Tap (g) to close the Airflow screen.
NOTE |
Some functions might not be displayed depending on the air conditioner. |
