NOTE

It can be set only for models equipped with (Fan Speed/Airflow Direction button). Swing and Wide cannot be set for models equipped with (Fan Speed button).

Swing

<Up/Down Swing>
The vertical louver swings in the range according to the type of operation, such as cooling and heating.

<Left/Right Swing>
The horizontal louver swings in the range according to the setting of the installation position of the indoor unit.

Wide

The horizontal louver opens to the maximum to send air over a wide range.

Swing

1. Tap (a) to open the Airflow screen.


   When the following screen is displayed, tap (b) to set “Comfort airflow” to “OFF.”




2. According to the screen displayed, set Swing.

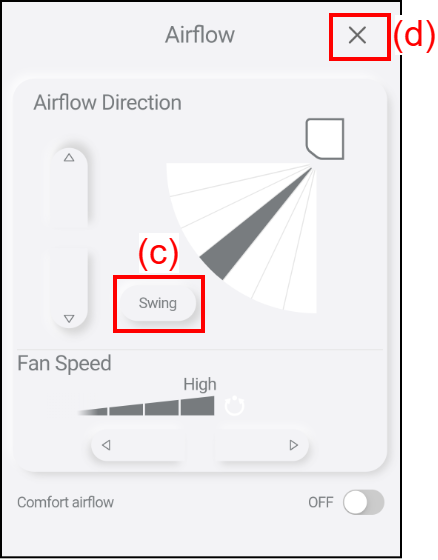

   For models with up/down airflow settings only

   Tap (c). Tap (d) to close the Airflow screen.

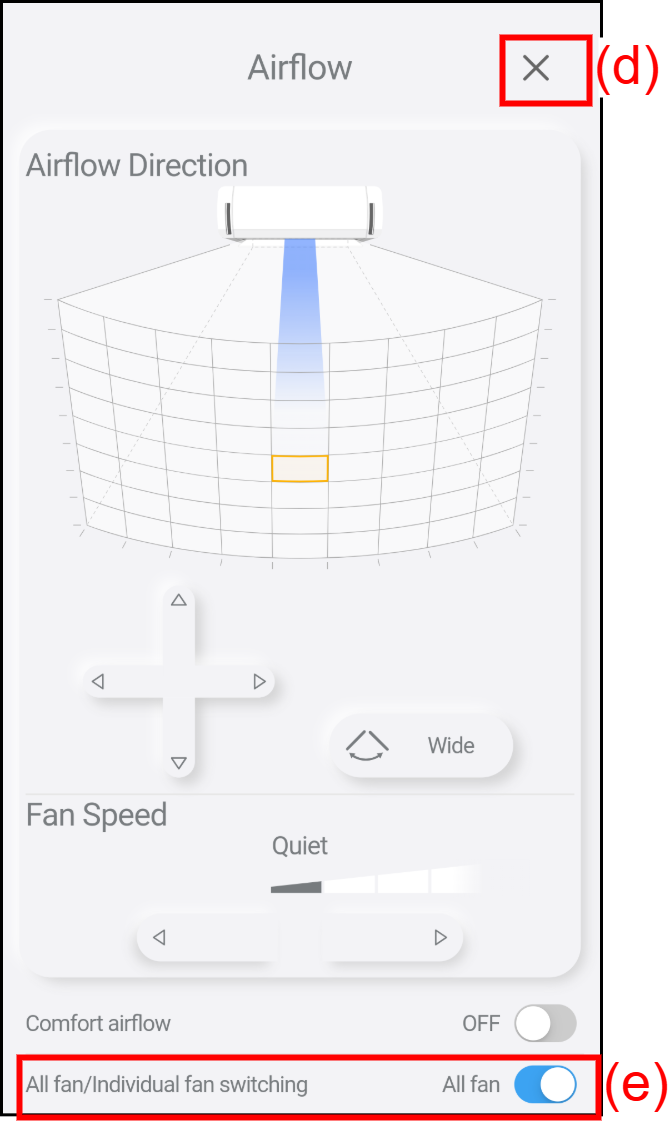

   For models with "All fan/Individual fan switching” (equipped with side fans)

   Only the main fan can be swung. Tap (e) to switch to “Individual fan” and then set Swing from the airflow direction of the main fan. Tap (d) to close the Airflow screen.

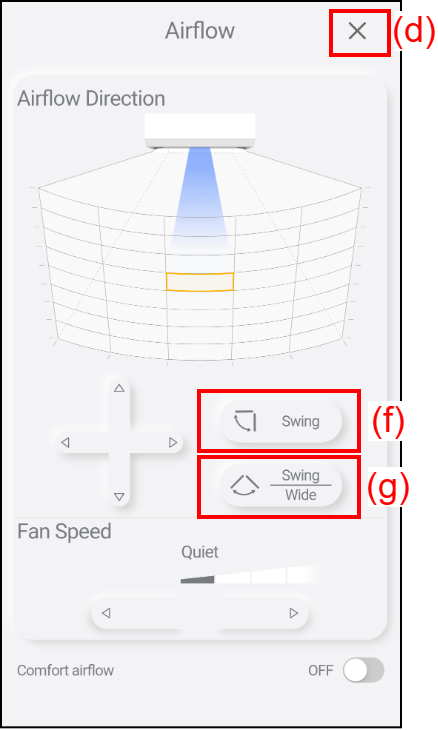

   For models with up/down and left/right settings

   Tap (f) to swing up/down, and tap (g) to swing left/right. Tap (d) to close the Airflow screen.

Wide

1. Tap (a) to open the Airflow screen.


   When the following screen is displayed, tap (b) to set “Comfort airflow” to “OFF.”

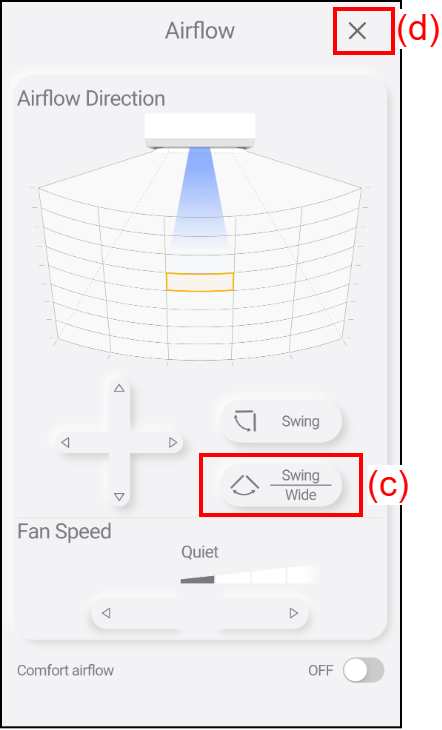

1. Tap (c) until Wide is enabled.

   Tap (d) to close the Airflow screen.
