FGLair™ app SET UP - STEP4: Pairing USB: RC type 5- Manual connection
1
Tap [＋] to add a new air conditioner.
2
Select the adapter type of your air conditioner.
3
Select a [Remote Controller Type 5].
Page scroll
4
Read the note and tap [Next].
5
Select a [Manual connection].
6 * Remote controller shown is a representative model.
【RC type 5】
Press down [TIMER] on the remote controller for more than 5 seconds.
- *
- Make sure to set the remote controller to the OFF state before starting.
7
【RC type 5】
[Ln] will be displayed on the remote controller display.
8
Press
.
9
Select [01] using
.
10
Press .
on the indoor unit will blink.
11
WLAN indicator lamp on the indoor unit will blink.
12

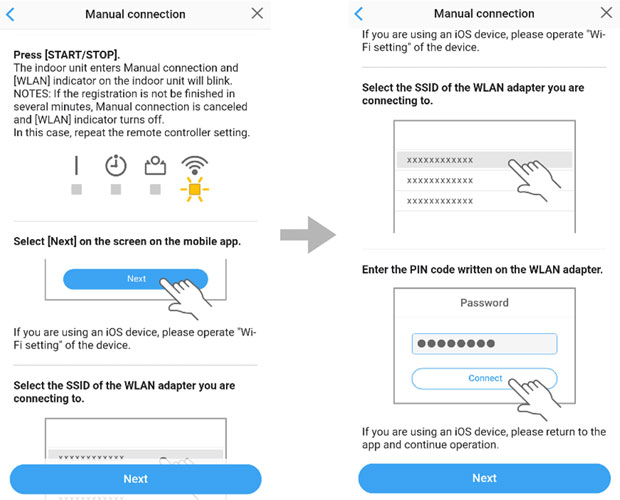

Select [Next] on the mobile app screen.
Page scroll
Open [Setting] -> Wi-Fi by following the instructions on the mobile app.
Select the SSID of the air conditioner you are connecting to.
Enter the PIN code written on the WLAN adapter then press [Join].
Depending on the type of WLAN adapter, you may not need to enter a password.
"Open in FGLair?" pop-up will be displayed, tap [Open].
When pop-up is not displayed, return to app screen manually.
Tap [Continue].
Select the SSID of the WLAN adapter you are connecting to.
For iOS, it is necessary to select the SSID of the adapter on the device's Wi-Fi setting screen.
Enter the PIN code written on the WLAN adapter then press [Connect].
Depending on the type of WLAN adapter, you may not need to enter a PIN code.
If the device connection screen is displayed, tap the SSID displayed.
13
Select [Next] on the mobile app screen.
Page scroll
14
Select the WLAN Access Point you are connecting to.
15
Enter the WLAN Access Point password then press [Connect].
16
on the indoor unit will turn on.The setting is completed.
- *
- The time to complete the setting is different depending on the communication environment.
- *
- It takes max 15 minutes to complete the setting.
- *
- "FGLair" is a trademark of FUJITSU GENERAL LIMITED.
- *
- The company names and brand names referred to in this page are themselves the trademarks, registered trademarks, and products of the respective companies.
- *
- Screens, figures and movies are only for explanation.
