AIRSTAGE Mobile app SET UP - STEP3: PAIRING USB: RC type 5 - Easy connection

1

Tap [＋] to add a new air conditioner.

Tap [＋] to add a new air conditioner.

2

Tap [Registration Started].

Tap [Registration Started].

3

Read the note and tap [Connected].

Tap [Registration Started].

4

Select a [Easy connection].

Select a [Easy connection].

5

Select a [Unit Type 1]

Select a [Unit Type 1]

6

Select a [Remote Controller Type 5].

Page scroll

Select a [Remote Controller Type 3].
Select a [Remote Controller Type 3].
Select a [Remote Controller Type 5].

7

Press the WPS button on the WLAN router that you are connecting to. Refer to the operating manual of the WLAN router for the location of the button and how to press it.

Page scroll

Press the WPS button on the WLAN router that you are connecting to. Refer to the operating manual of the WLAN router for the location of the button and how to press it.
Press the WPS button on the WLAN router that you are connecting to. Refer to the operating manual of the WLAN router for the location of the button and how to press it.
Press the WPS button on the WLAN router that you are connecting to. Refer to the operating manual of the WLAN router for the location of the button and how to press it.
Press the WPS button on the WLAN router that you are connecting to. Refer to the operating manual of the WLAN router for the location of the button and how to press it.

8

【RC type 5】

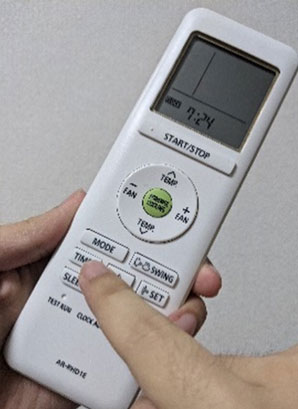

Press down [TIMER] on the remote controller for more than 5 seconds.

*
Make sure to set the remote controller to the OFF state before starting.
*
Remote controller shown is a representative model.
【RC Type 5】 Press down [TIMER] on the remote controller for more than 5 seconds.

9

【RC type 5】

[Ln] will be displayed on the remote controller display.

【RC Type 5】 [Ln] will be displayed on the remote controller display.

10

Press START/STOP button.

Press START/STOP button.

11

Select [02] using TEMP button.

Select [02] using TEMP button.

12

Press START/STOP button.

WI-FI on the indoor unit will blink.

Press START/STOP button. WI-FI on the indoor unit will blink.

13

When the WLAN adapter find a connectable WLAN router, WLAN indicator lamp on the indoor unit will turn on.

When the WLAN adapter find a connectable WLAN router, WLAN indicator lamp on the indoor unit will turn on.

14

Press [Register started] on the screen on the mobile app to start the connection with the WLAN router.

Check that the your mobile device is linked to the WLAN router you are connecting the air conditioner.

Press [Register started] on the screen on the mobile app to start the connection with the WLAN router. Check that the your mobile device is linked to the WLAN router you are connecting the air conditioner.

15

The setting is completed.

*
The time to complete the setting is different depending on the communication environment.
*
It takes max 10 minutes to complete the setting.
The setting is completed.
The setting is completed.
