FGLair™ app SET UP - STEP4: Pairing USB: RC type 4 - Manual connection

1

Tap [＋] to add a new air conditioner.

Tap [＋] to add a new air conditioner

2

Select the adapter type of your air conditioner.

Select the adapter type of your air conditioner

3

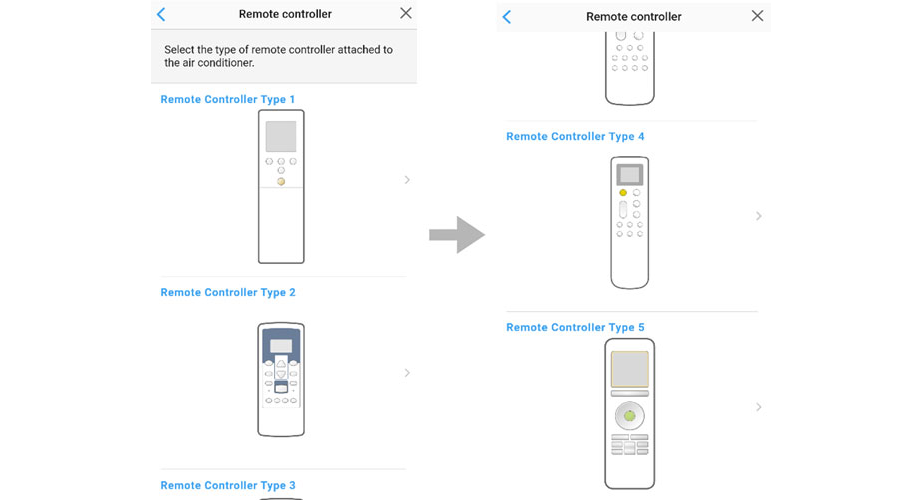

Select a [Remote Controller Type 4].

Page scroll

Select_a_[Remote_Controller_Type_4]

4

Read the note and tap [Next].

Read the note and tap [Next]

5

Select a [Manual connection].

Select a [Manual connection]

6

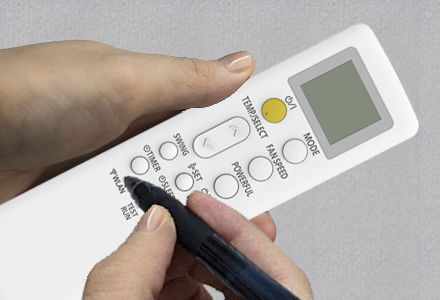

Press [WLAN] 2 times on the remote controller.

Press [WLAN]
*
Make sure to set the remote controller to the OFF state before starting.
*
Remote controller shown is a representative model.

7

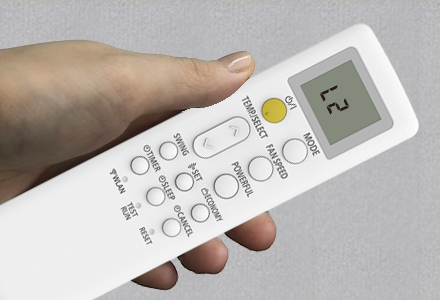

[L2] will be displayed on the remote controller display.

[L2] will be displayed

8

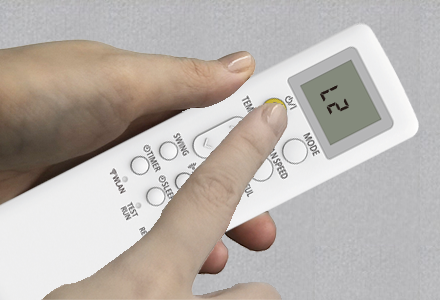

Press ON/OFF button.

Press ON/OFF button

9

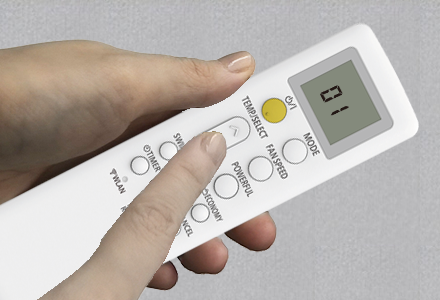

Select [01] using [TEMP ˄] or [TEMP ˅].

Select [01]

10

Press ON/OFF button.

WLAN indicator lamp on the indoor unit will blink.

Press ON/OFF button

11

WLAN indicator lamp on the indoor unit will blink.

WLAN indicator lamp on the indoor unit will blink

12

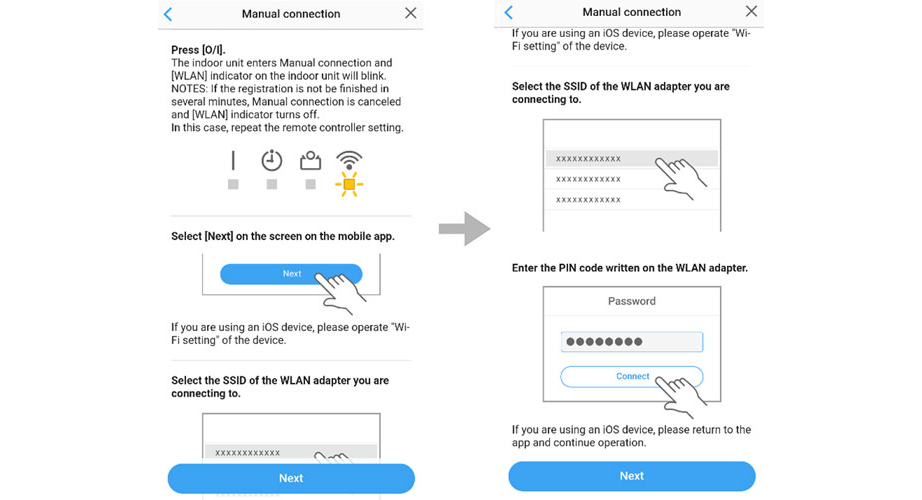

Select [Next] on the mobile app screen.

Page scroll

Select [Next] on the mobile app screen
iOS flow

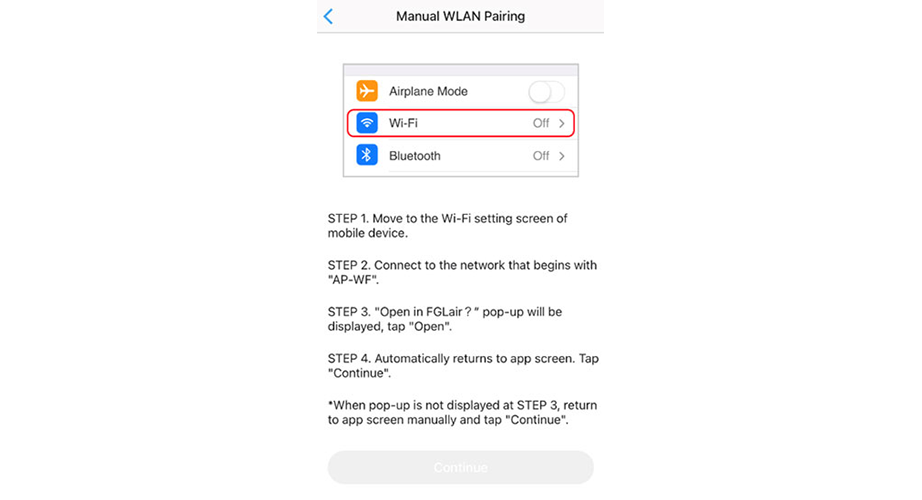

Open [Setting] -> Wi-Fi by following the instructions on the mobile app.

Open [Setting]

Select the SSID of the air conditioner you are connecting to.

Select the SSID

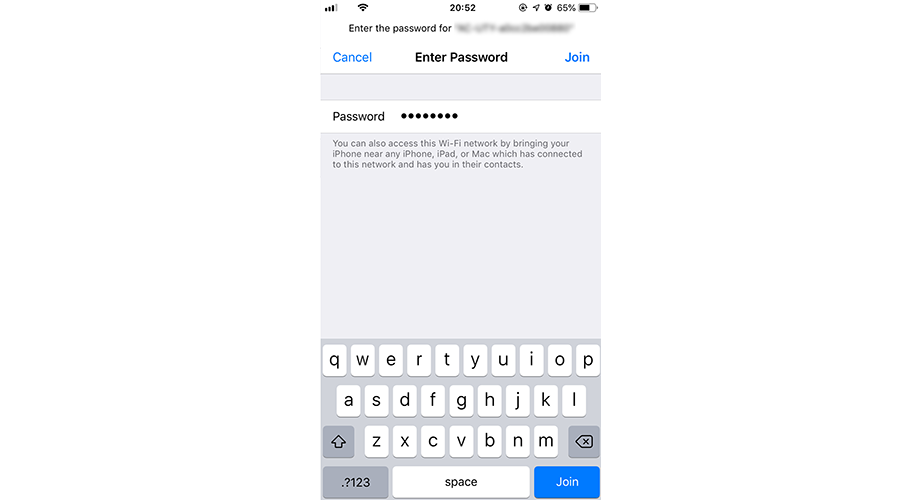

Enter the PIN code written on the WLAN adapter then press [Join].

Depending on the type of WLAN adapter, you may not need to enter a password.

Enter the PIN code

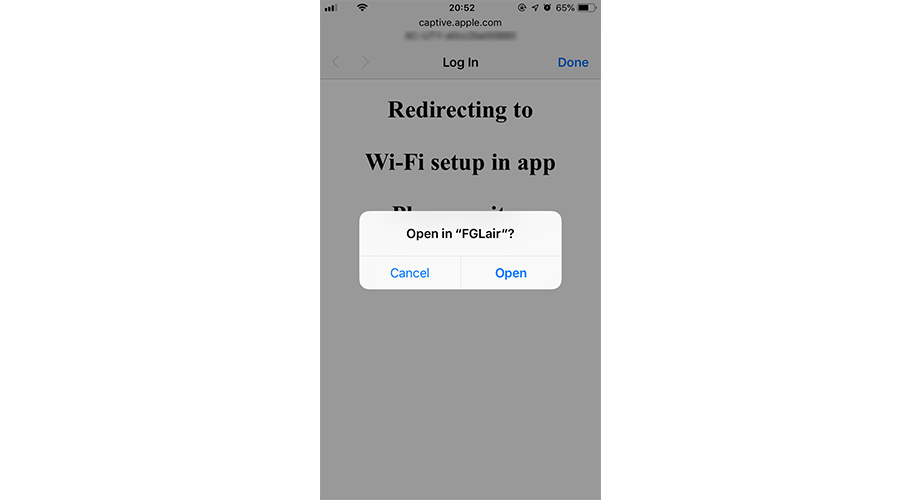

"Open in FGLair?" pop-up will be displayed, tap [Open].

When pop-up is not displayed, return to app screen manually.

Open in FGLair?

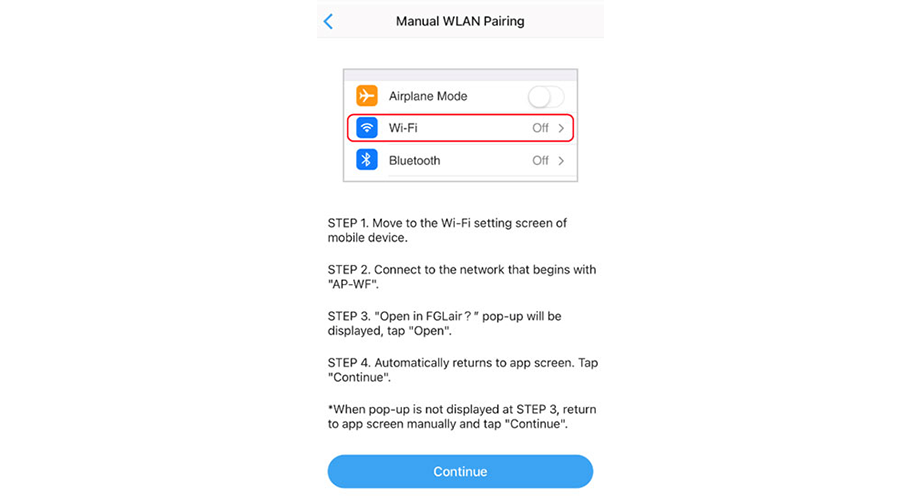

Tap [Continue].

Tap [Continue]
Android flow

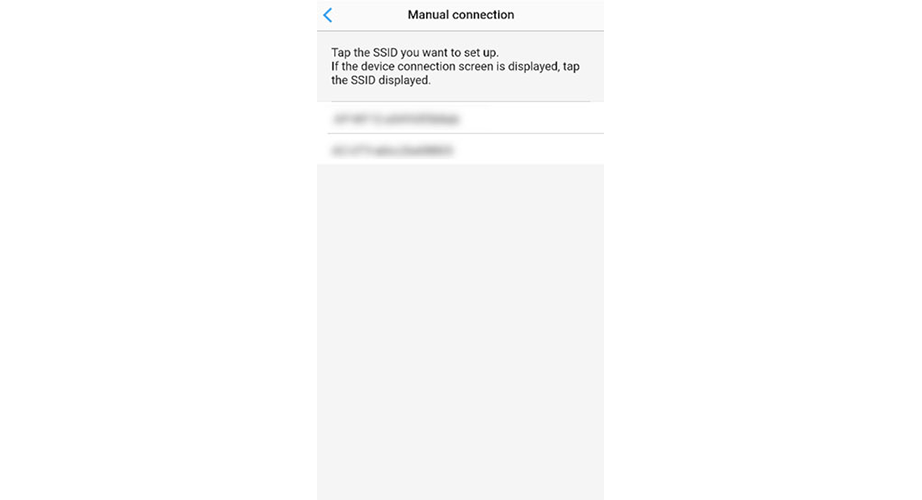

Select the SSID of the WLAN adapter you are connecting to.

For Android, it is necessary to select the SSID of the adapter on the device's WLAN setting screen.

Select the SSID

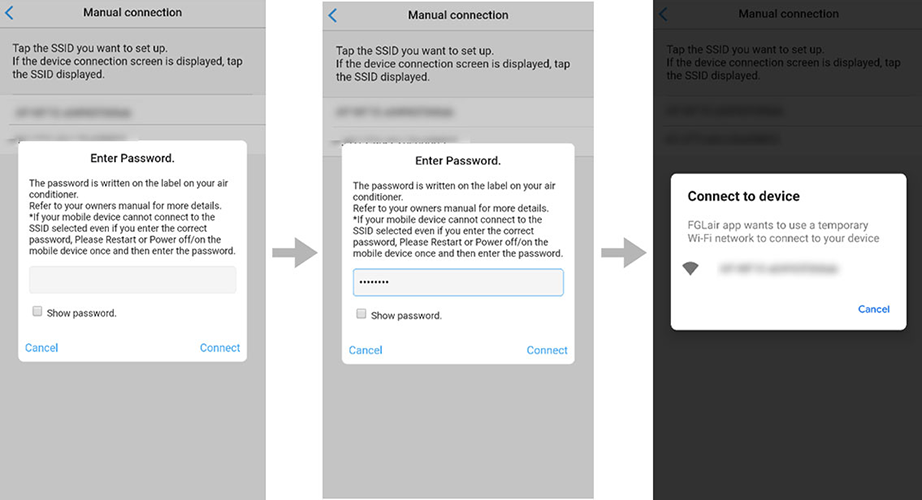

Enter the PIN code written on the WLAN adapter then press [Connect].

Depending on the type of WLAN adapter, you may not need to enter a PIN code.

If the device connection screen is displayed, tap the SSID displayed.

Enter the PIN code

13

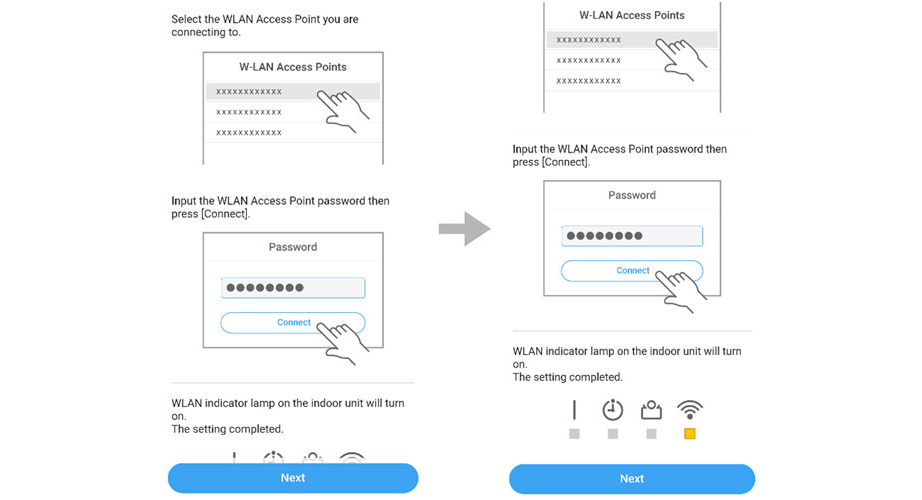

Select [Next] on the mobile app screen.

Page scroll

Select [Next]

14

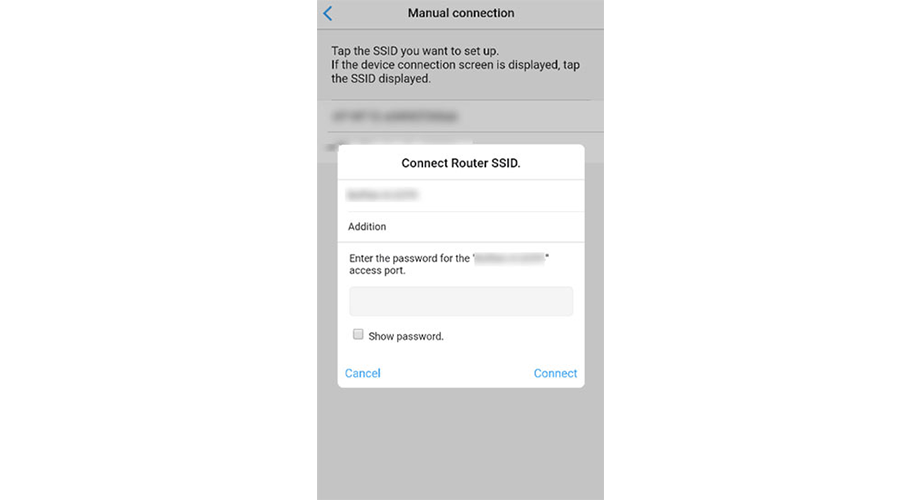

Select the WLAN Access Point you are connecting to.

Select the WLAN Access Point

15

Enter the WLAN Access Point password then press [Connect].

Enter the WLAN Access Point

16

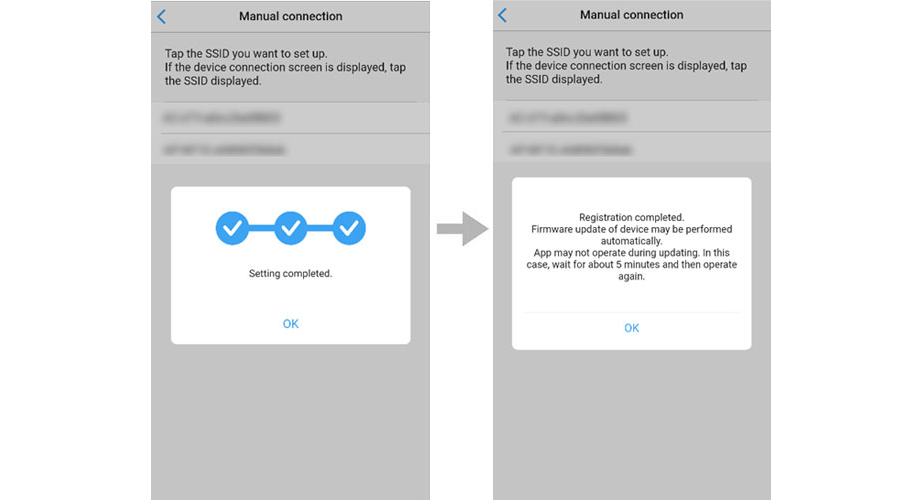

WLAN indicator lamp on the indoor unit will turn on.

The setting is completed.

The setting is completed
*
The time to complete the setting is different depending on the communication environment.
*
It takes max 15 minutes to complete the setting.
STEP1
STEP2
STEP3
STEP4

*
FGLair is a trademark of Fujitsu General Limited.
*
App Store and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.
*
Android is registered trademarks of Google LLC.
*
The company names and brand names referred to in this page are themselves the trademarks, registered trademarks, and products of the respective companies.
*
Screens, figures and movies are only for explanation.
