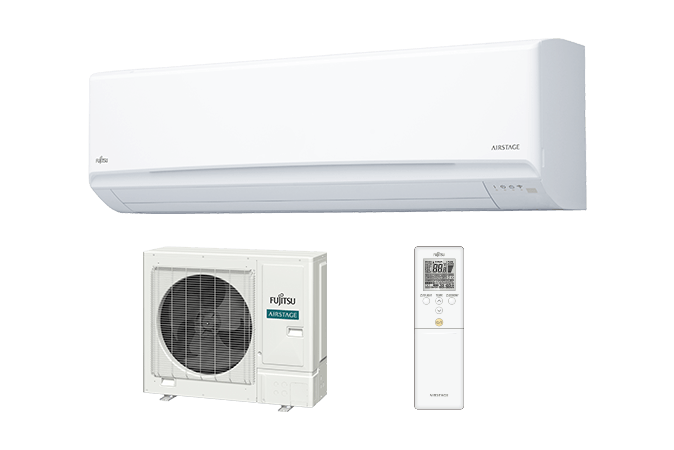

AIRSTAGE SINGLE-ROOM MINI-SPLIT SYSTEMS Wall Mounted LMAS Series High SEER 24LMAS1

AIRSTAGE

Indoor Unit Systems: ASUH24LMAS,Outdoor Unit: AOUH24LMAS1

Indoor Unit:
ASUH24LMAS
Outdoor Unit:
AOUH24LMAS1
Downloads:
Warranty
Up to 22.5 SEER
  • INVERTER 7 year compressor 5year parts Warranty. Refrigerant R410A ENERGY STAR®

Features

  • Indoor unit with HCRC (High Corrosion Resistant Copper) coils
  • Compatible with 2-wire wired remote controllers
  • 2 communication (UART) ports
  • Service monitoring menu through UTY-RNRUZ5
  • High efficiency, Energy Star rated systems
  • Washable filter factory provided with IDU
  • Large cross-flow fan with sound pressure levels as low as 30dB(A)
  • Compatible with optional wireless LAN module UTY-TFSXF1
  • Third-party thermostat compatible with optional interface UTY-TTRXZ1

Sleep Timer: Automatically adjusts the temperature while you sleep to make you more comfortable. Auto Louver: Up/Down: Redirects airflow automatically with seven position up and down motion which can be set to auto swing. 24 Hour Timer: Allows for one on/off cycle during a 24 hour period. Auto Restart/Reset: Following a power failure, systems will automatically restart in the same operating mode as before, once power has been restored. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Cold Prevention: Indoor coil will warm prior to fan operating, preventing cold air during heating mode. Low Ambient Cooling: Can operate in cooling mode even when outdoor ambient is 0°F, 14°F or 32°F, depending on model, without modification. Operation outside of factory specification is not recommended. Dry Mode: Allows for moisture removal in low load conditions of up to 50% of rated moisture removal capacity.

Cooling  22,000BTU/h
Heating  25,200BTU/h
