AIRSTAGE SINGLE-ROOM MINI-SPLIT SYSTEMS Cassette 18LUAS1U

AIRSTAGE

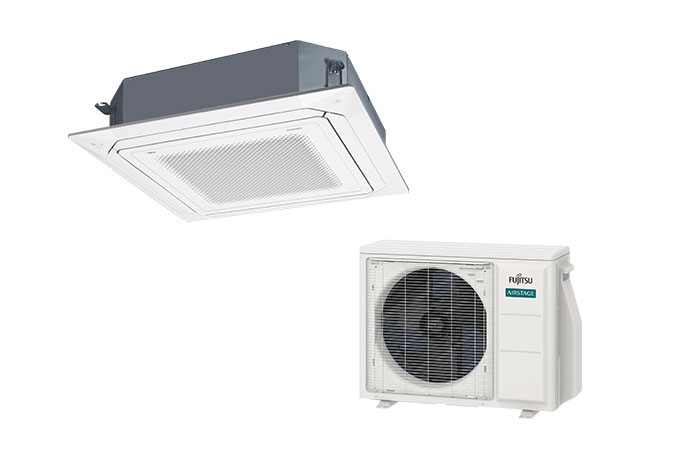

Indoor Unit Systems: AUUH18RGLX, Outdoor Unit: AOU18LUAS

Indoor Unit:
AUUH18LUAS
Outdoor Unit:
AOUH18LUAS1
Downloads:
Operation Manual
Warranty
23.5 SEER2
  • INVERTER 7 year compressor 5year parts Warranty. Refrigerant R410A

Features

  • Better Air Distribution Using 360-degree Louvers
  • High Energy Efficiency
  • Individual Louver Control
  • Quiet Operation and 4 Fan Speed Control
  • Use WIFI Interface Module UTY-TFSXJ4 to control your unit with Fujitsu’s AIRSTAGE Mobile smartphone app
  • Occupancy / Human Sensor Setting (Optional)

Auto Restart/Reset: Following a power failure, systems will automatically restart in the same operating mode as before, once power has been restored. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. High Ceiling Mode: Temperature at the top of a high ceiling room may be warmer than the space occupied; this mode adjusts for this difference. Cold Prevention: Indoor coil will warm prior to fan operating, preventing cold air during heating mode. Low Ambient Cooling: Can operate in cooling mode even when outdoor ambient is 0°F, 14°F or 32°F, depending on model, without modification. Operation outside of factory specification is not recommended.

Cooling  18,000 BTU/h
Heating  21,600 BTU/h
Specification
Power Source Voltage/Frequency/Phase 208-230/60/1
Capacity Cooling BTU/h 22,200(5,000~27,300)
Heating 24,200(5,000~29,000)
Low Temp. Heating 17°F BTU/h 14,600
HSPF BTU/hW 8.5
SEER BTU/hW 15.0
EER Cooling/Heating W/W 10.6 / 10.2
Operation Range Cooling °F(°C) 0~115 (-18~46)
Heating 14~75 (-10~24)
Moisture Removal Pt./h(l/h) 6.4 (3.0)
MAX.CRT.BKR A 20
Air Circ. C.F.M. Hi (m³/h) 618 (1,050)
Medium 536 (910)
Low 436 (740)
Noise Level Hi dB(A)
15RLS3		 45/43 (Clg/Htg)
Medium 43/39 (Clg/Htg)
Low 38/35 (Clg/Htg)
Outdoor Fan Speed RPM 850/900
Outdoor Noise Level dB(A)
Clg/Htg		 53/55 (Clg/Htg)
Current Cooling A 9.2/12.5
Heating 10.4/12.5
Power Use Cooling kw 2.10/2.88
Heating 2.37/2.88
Fan Speeds Stage 3 + Auto
Air Direction Vertical Automatic
Air Filter Washable
Front Grille Removable
Connection Method Flare
Combined Min.Lgth Ft (m) 16 (5)
Max.Lgth 165 (50) Each
(pre-charge: 49’)
Max. Vertical Diff. Ft (m) 66 (20)
Conn. Pipe Diameter Indoor Inch Suc. 5/8
Outdoor Dis. 3/8
Net Weight Indoor lbs.(kg) 75 (34)
Outdoor 141 (64)
Dimensions Height Indoor Inch (mm) 9-3/4 (246)
Outdoor Inch (mm) 32-3/4(830)
Width Indoor Inch (mm) 32-3/4(830)
Outdoor Inch (mm) 35-1/2 (900)
Depth Indoor Inch (mm) 32-3/4 (830)
Outdoor Inch (mm) 13 (330)
Refrigerant (Global Warming Potential) R410A
Scroll
Dimensions

Indoor Unit: AUUH18LUAS

Indoor Units: Dimensions

Outdoor Unit: AOUH24LUAS1

Outdoor Units: Dimensions
