AIRSTAGE SINGLE-ROOM MINI-SPLIT SYSTEMS Ceiling Suspended 18LUAS1B

AIRSTAGE

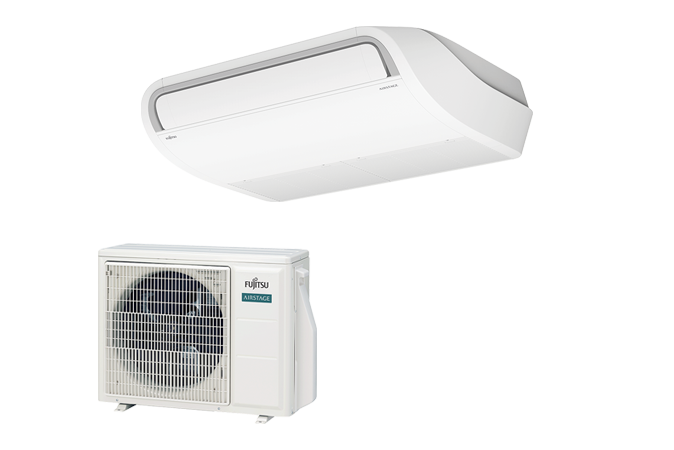

Indoor Unit Systems: ABUH18LUAS, Outdoor Unit: AOUH18LUAS1

Indoor Unit:
ABUH18LUAS
Outdoor Unit:
AOUH18LUAS1
Downloads:
Operation Manual
Warranty
22.5 SEER2
  • INVERTER Refrigerant R410A

Features

  • Light elegant design
  • Flexible and easy installation
  • Easy maintenance

Economy Mode:Thermostat setting automatically changes according to the temperature to avoid unnecessary cooling and heating. Minimum Heat Mode: Sets room temperature to 50°F, keeping temperatures above freezing and reducing power consumption. Auto Changeover (heating to cooling or vice-versa): Automatically alternates between heating or cooling if the room temperature falls 4 ̊F below the set temperature when cooling or rises 4 ̊F above set temperature when heating.* Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Auto Louver: 4 Way: Redirects airflow automatically with up/down and left/right motion. Auto Restart: Following a power failure, systems will automatically restart in the same operating mode as before, once power has been restored. Dry Mode: Can operate in cooling mode even when outdoor ambient is 0°F, 14°F or 32°F, depending on model, without modification. Operation outside of factory specification is not recommended. Fresh Air Intake: Outside air can be introduced by attaching field supplied flexible duct to fresh air knockouts. Cold Prevention:Indoor coil will warm prior to fan operating, preventing cold air during heating mode. High Ceiling Mode:Temperature at the top of a high ceiling room may be warmer than the space occupied; this mode adjusts for this difference. Pump Down Operation:Collects all refrigerant in system back into the outdoor unit when the unit is to be moved or before servicing the refrigerant circuit. Remote Temperature Sensor:Room temperature sensor is located in optional wired remote controller only. Third Party Control:Turns system on or off using a normally closed circuit. Interface with third party devices such as home automation. Daisy Chain:Ability to connect up to 16 identical style indoor units to one wired remote. 24 Hour Timer:Allows for one on/off cycle during a 24 hour period.

Cooling  18,000 BTU/h
Heating  21,600 BTU/h
Specification
Power Source Voltage/Frequency/Phase 208-230/60/1
Capacity Cooling BTU/h 17,800(5,000~21,600)
Heating 21,500(5,000~25,600)
Low Temp. Heating 17°F BTU/h 13,000
HSPF BTU/hW 8.5
SEER BTU/hW 16.0
EER Cooling/Heating W/W 10.9/9.6
Operation Range Cooling °F(°C) 0~115 (-18~46)
Heating 14~75 (-10~24)
Moisture Removal Pt./h(l/h) 5.3 (2.5)
MAX.CRT.BKR A 20
Air Circ. C.F.M. Hi (m³/h) 459 (780)
Medium 383 (650)
Low 324 (550)
Noise Level Hi dB(A)
15RLS3		 43/43 (Clg/Htg)
Medium 39/39 (Clg/Htg)
Low 35/35 (Clg/Htg)
Outdoor Fan Speed RPM 780/780
Outdoor Noise Level dB(A)
Clg/Htg		 51/53
Current Cooling A 7.1/12.5
Heating 9.8/12.5
Power Use Cooling kw 1.63/2.88
Heating 2.25/2.88
Fan Speeds Stage 3 + Auto
Air Direction Horizontal Automatic
Vertical Automatic
Air Filter Washable
Front Grille Permanent
Connection Method Flare
Combined Min.Lgth Ft (m) 16 (5)
Max.Lgth 165 (50)
(pre-charge: 49’)
Max. Vertical Diff. Ft (m) 66 (20)
Conn. Pipe Diameter Indoor Inch Suc.1/2
Outdoor Dis. 1/4
Net Weight Indoor lbs.(kg) 62 (28)
Outdoor 141 (64)
Dimensions Height Indoor Inch (mm) 7-7/8(199)
Outdoor Inch (mm) 32-3/4(830)
Width Indoor Inch (mm) 39-1/8(990)
Outdoor Inch (mm) 35-1/2(900)
Depth Indoor Inch (mm) 25-7/8 (655)
Outdoor Inch (mm) 13(330)
Refrigerant (Global Warming Potential) R410A
Scroll
Dimensions

Indoor Unit: ABU18LUAS1B

Indoor Units: Dimensions

Outdoor Unit: AOU18RLX

Outdoor Units: Dimensions
