Ceiling ABEG45KRTA  [3Phase]

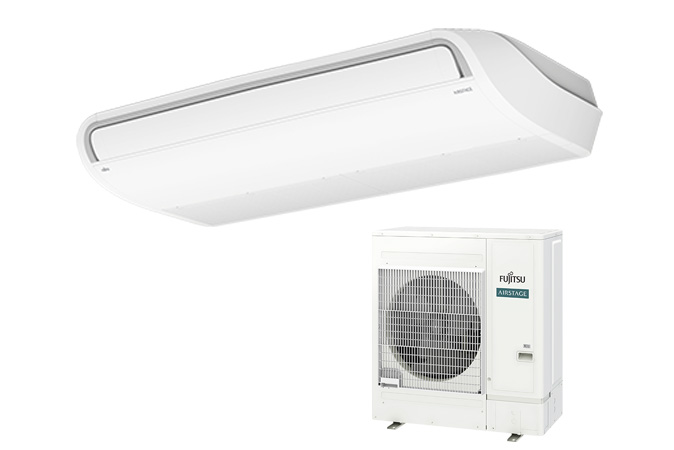

Indoor unit, Remote controller, Outdoor unit

ALL DC
Indoor Unit :
ABEG45KRTA
Outdoor Unit :
AOEG45KRTA
Download :
Catalogues

Features

  • Light elegant design
  • Flexible and easy installation
  • Easy maintenance

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Set temperature auto return: The setting temperature automatically returns to the previously set temperature. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Vertical swing louver: The louver automatically swings up and down. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Connectable fresh air duct: Outside air can be introduced by attaching a locally purchased duct to the fresh air knockout and an optional part. Auto-off timer: Automatically stops operation when a fixed time has elapsed from the start of operation. Weekly timer: Different ON-OFF times can be set for each day. Filter sign: Indicates the filter cleaning period by blinking. External ON/OFF input Special Cooling: Special Cooling

Capacity

Cooling   12.1 kW
Heating   13.5 kW


Specifications

Power Source Phase 3 phase 3N
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 12.1 (4.0 - 13.5) kW
Heating 13.5 (4.2 - 16.2) kW
Input Power Cooling 4.220 kW
Heating 3.840 kW
EER Cooling 2.87 W/W
COP Heating 3.52 W/W
Max. Operating Current Cooling 14.00 A
Heating 14.00 A
Moisture Removal 4.50 l/h
Sound Pressure Level*2 Indoor (Cooling) High 45 dB(A)
Middle 41 dB(A)
Low 39 dB(A)
Quiet 34 dB(A)
Indoor (Heating) High 45 dB(A)
Middle 41 dB(A)
Low 39 dB(A)
Quiet 34 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 57 dB(A)
Outdoor (Heating) High 57 dB(A)
Sound Power Level Indoor (Cooling) High 60 dB(A)
Indoor (Heating) High 60 dB(A)
Outdoor (Cooling) High 71 dB(A)
Outdoor (Heating) High 71 dB(A)
Airflow Rate Indoor (Cooling) High 1900 m³/h
Outdoor (Cooling) High 4450 m³/h
Net Dimensions
Indoor
Height 235 mm
Width 1700 mm
Depth 705 mm
Net Dimensions
Outdoor
Height 998 mm
Width 940 mm
Depth 320 mm
Net Weight Indoor 38.0 kg
Outdoor 67.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 50.0 (30.0) m
Max. Height Difference 30 m
Operation Range Cooling -15 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 2700 g (1.823 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ABEG45KRTA

Indoor unit
