Wall Mount ECO Series (Comfort for Large Rooms) ASEG18KLCA

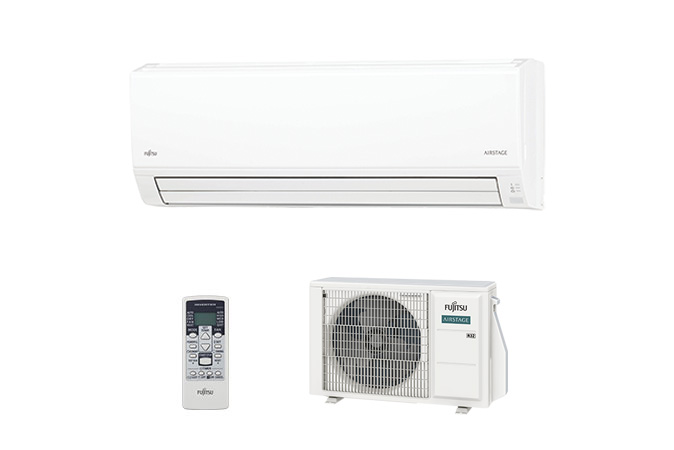

Indoor unit, Remote controller, Outdoor unit

ALL DC Refrigerant R32
Indoor Unit :
ASEG18KLCA
Outdoor Unit :
AOEG18KLCA
Download :
Catalogues

Features

  • Reduced width and compact design
  • On/Off Program timer
  • Powerful operation
  • Economy operation
  • Low ambient operation

Capacity

Cooling   5.2 kW
Heating   6.3 kW


Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 5.2 (0.9 - 5.5) kW
Heating 6.3 (0.6 - 7.6) kW
Input Power Cooling 1.685 kW
Heating 1.800 kW
EER Cooling 3.09 W/W
COP Heating 3.50 W/W
Pdesign Cooling 5.2 kW
Heating (-10°C) 4.8 kW
SEER Cooling 7.20 W/W
SCOP Heating (Average) 4.30 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 9.5 A
Heating 13.5 A
Annual Energy Consumption Cooling 253 kWh/a
Heating 1563 kWh/a
Moisture Removal 1.9 l/h
Sound Pressure Level*2 Indoor (Cooling) High 47 dB(A)
Middle 44 dB(A)
Low 40 dB(A)
Quiet 35 dB(A)
Indoor (Heating) High 50 dB(A)
Middle 45 dB(A)
Low 41 dB(A)
Quiet 37 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 50 dB(A)
Outdoor (Heating) High 56 dB(A)
Sound Power Level Indoor (Cooling) High 60 dB(A)
Indoor (Heating) High 65 dB(A)
Outdoor (Cooling) High 61 dB(A)
Outdoor (Heating) High 66 dB(A)
Airflow Rate Indoor (Cooling) High 865 m³/h
Outdoor (Cooling) High 1830 m³/h
Net Dimensions
Indoor
Height 293 mm
Width 790 mm
Depth 249 mm
Net Dimensions
Outdoor
Height 542 mm
Width 799 mm
Depth 290 mm
Net Weight Indoor 9.5 kg
Outdoor 33.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ9.52 mm
Drain Hose Diameter φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm
Max. Pipe Length (Pre Charge) 25 (15.0) m
Max. Height Difference 20 m
Operation Range Cooling -10 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 850 g (0.574 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ASEG18KLCA

Indoor unit
