Wall Mount ECO Series (Comfort for Large Rooms) ASEG24KLCA

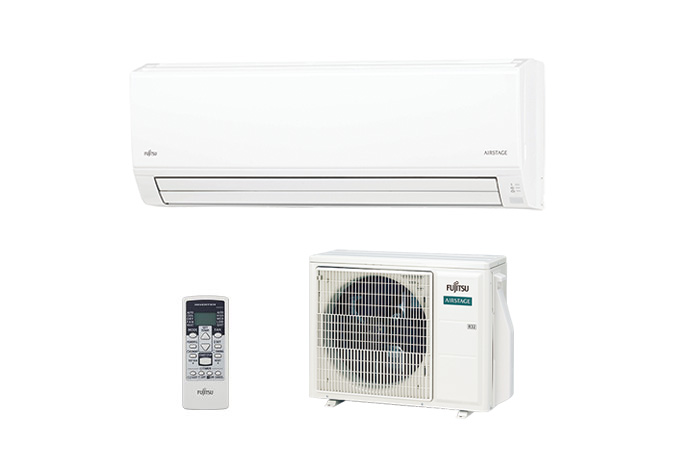

Indoor unit, remote controller, outdoor unit

All DC R32 refrigerant
Indoor Unit :
ASEG24KLCA
Outdoor Unit :
AOEG24KLCA
Download :
Catalogues

Features

  • Reduced width and compact design
  • On/Off Program timer
  • Powerful operation
  • Economy operation
  • Low ambient operation

Capacity

Cooling   7.1 kW
Heating   8.0 kW


Specifications

Power Source Phase Single phase
Voltage 230 V
Frequency 50 Hz
Capacity Cooling 7.1 (0.9 - 7.7) kW
Heating 8.0 (0.9 - 9.0) kW
Input Power Cooling 2.420 kW
Heating 2.225 kW
EER Cooling 2.93 W/W
COP Heating 3.60 W/W
Pdesign Cooling 7.1 kW
Heating (-10°C) 7.1 kW
SEER Cooling 7.10 W/W
SCOP Heating (Average) 4.00 W/W
Energy Efficiency Class Cooling A++
Heating (Average) A+
Max. Operating Current Cooling 13.5 A
Heating 17.5 A
Annual Energy Consumption Cooling 350 kWh/a
Heating 2485 kWh/a
Moisture Removal 3.1 l/h
Sound Pressure Level*2 Indoor (Cooling) High 51 dB(A)
Middle 45 dB(A)
Low 38 dB(A)
Quiet 33 dB(A)
Indoor (Heating) High 52 dB(A)
Middle 45 dB(A)
Low 41 dB(A)
Quiet 37 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 55 dB(A)
Outdoor (Heating) High 57 dB(A)
Sound Power Level Indoor (Cooling) High 64 dB(A)
Indoor (Heating) High 65 dB(A)
Outdoor (Cooling) High 65 dB(A)
Outdoor (Heating) High 67 dB(A)
Airflow Rate Indoor (Cooling) High 1040 m³/h
Outdoor (Cooling) High 2885 m³/h
Net Dimensions
Indoor
Height 293 mm
Width 790 mm
Depth 249 mm
Net Dimensions
Outdoor
Height 632 mm
Width 799 mm
Depth 290 mm
Net Weight Indoor 10.0 kg
Outdoor 38.0 kg
Connection Pipe Diameter Liquid φ6.35 mm
Gas φ12.7 mm
Drain Hose Diameter φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm
Max. Pipe Length (Pre Charge) 30 (15.0) m
Max. Height Difference 25 m
Operation Range Cooling -10 to 46 °C DB
Heating -15 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 1100 g (0.743 CO2eq–T)
Scroll

Dimensions

Indoor Unit : ASEG24KLCA

Indoor unit
