Heat Pump for Small Capacity Type J-IV Series AJY045LELDH [3Phase]
Features
- Efficiency in actual operation
- Long piping length
- Up to 14 units* can be connected
Capacity
14.0 kW
14.0 kW
(Nominal) /
16.0 kW
(Max.)
Specifications
| Rated Capacity Range | 5 HP |
|---|---|
| Max. Number of Connectable Indoor Units*1 | 1 - 12 |
| Connectable Capacity of Indoor Units | 7.0 - 21.0 kW |
Scroll
| Power Source | Phase | 3 phase 3N |
|---|---|---|
| Voltage | 400 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 14.0 kW |
| Nominal Heating | 14.0 kW | |
| Max. Heating | 16.0 kW | |
| Input Power | Cooling | 4.15 kW |
| Heating | 3.60 kW | |
| Nominal Heating | 3.60 kW | |
| Max. Heating | 4.50 kW | |
| EER | Cooling | 3.37 W/W |
| COP | Nominal Heating | 3.88 W/W |
| Max. Heating | 3.55 W/W | |
| Airflow Rate | 6600 m³/h | |
| Sound Pressure Level*2 | Cooling | 52 dB(A) |
| Heating | 55 dB(A) | |
| Sound Power Level | Cooling | 66 dB(A) |
| Heating | 69 dB(A) | |
| Max. External Static Pressure | 30 Pa | |
| Compressor Motor Output | 3.75 kW | |
| Heat Exchanger Fin | Blue fin | |
| Net Dimensions | Height | 1334 mm |
| Width | 970 mm | |
| Depth | 370 mm | |
| Net Weight | 119 kg | |
| Refrigerant | Type | R410A |
| Global Warming Potential | 2088 | |
| Charge | 5.3 kg (11.1 CO2eq–T) | |
| Connection Pipe Diameter | Liquid | φ9.52 mm |
| Gas | φ15.88 mm | |
| Total Pipe Length | 180 m | |
| Max. Height Difference (Outdoor Unit: Upper/Lower) |
50 / 40 m | |
| Operation Range | Cooling | -5 to 46 °CDB |
| Heating | -20 to 21 °CDB | |
Scroll
- Note:
- Specifications are based on the following conditions.
- Cooling:
- Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
- Heating:
- Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
- Pipe length:
- 7.5 m; Height difference between outdoor unit and indoor unit : 0 m. The protective function may work when using it outside the operation range.

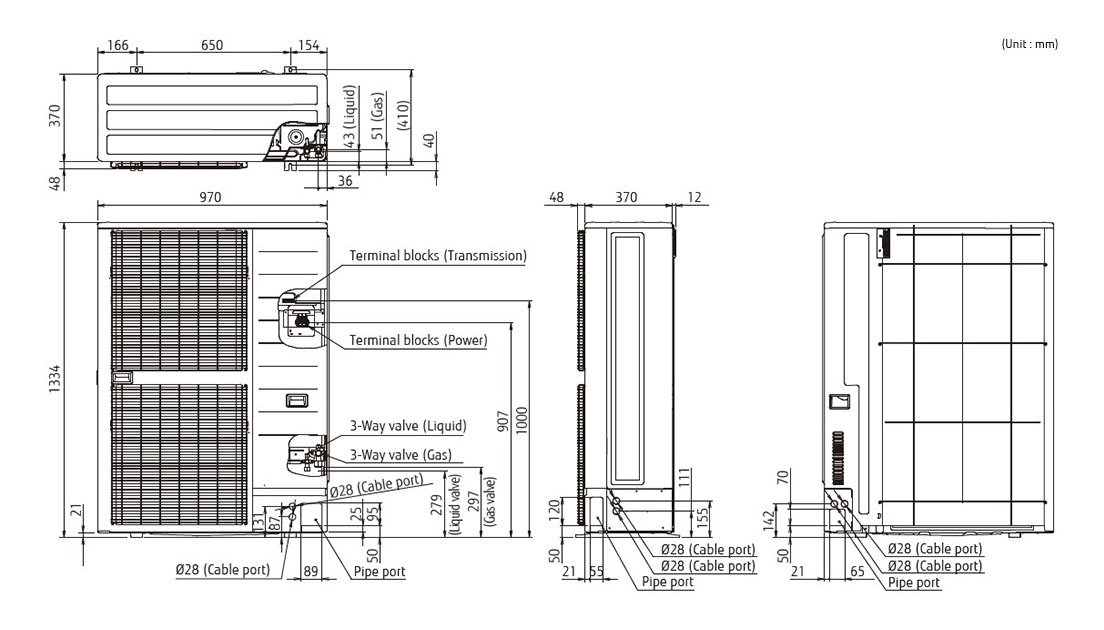

Dimensions

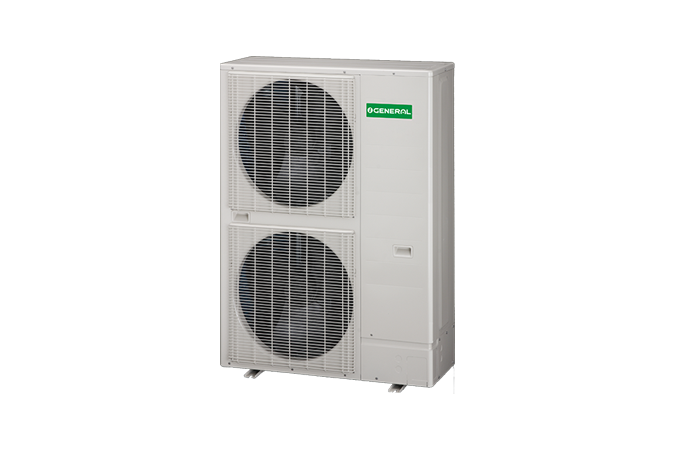

Outdoor Unit : AJY045LELDH
