1. Realizing industry's top class^(*1) energy-saving performance COP4.07 at cooling operation/4.37 at heating operation (8HP)

1） Realizing high efficiency by adopting “round-corner type high density multi path heat exchanger”
2） Realizing high efficiency operation of compressor and low noise operation of fan by adopting sign-wave driving system DC inverter
3） Energy-saving control function according to the use condition

2.  Improving installation easiness and design flexibility

1） Realizing space-saving installation (reducing installation space by 16%^(*3) compared with conventional model) by adopting new type heat exchanger and “corner cut air inhaling structure” for outdoor unit
2） Enhancing design flexibility considerably by adopting long piping designing up to 1,000m total pipe length and maximum external static pressure 80Pa

3. Remote centralized control system easier for users to control

1） Touch-panel type centralized controller by which various control functions can be easily operated
2） System controller strengthening remote control function

4. Product lineup corresponding to customers' request

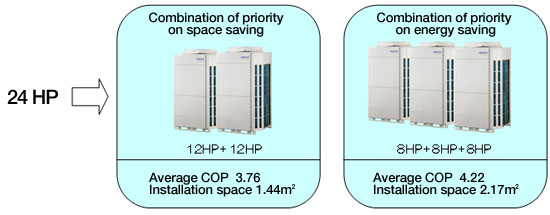

1） Modular type lineups (33 outdoor unit models) enabling combination of such features as space-saving installation and energy-saving performance

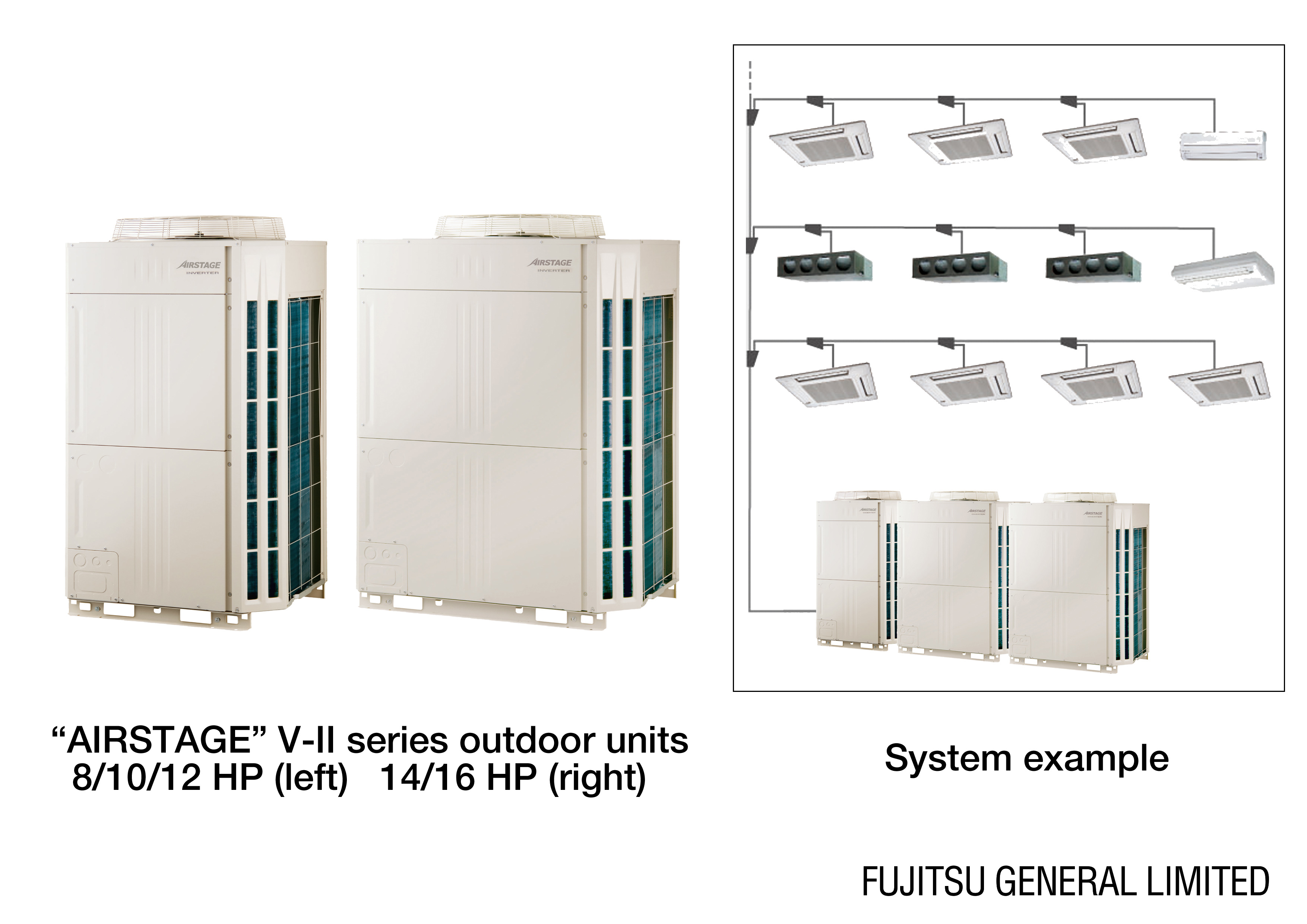

“AIRSTAGE” V-II series achieved industry's top class^(*1) COP4.07 at cooling operation/4.37 at heating operation (8HP) by various own energy-saving technology and enhanced heat exchange efficiency by 27% at cooling operation and 18% at heating operation compared with conventional model.

At cooling operation

At heating operation

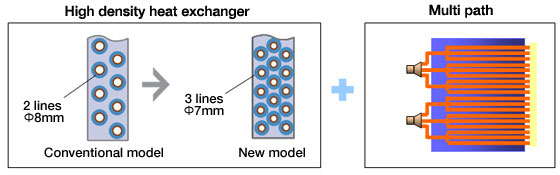

1）Realizing high efficiency by adopting “round-corner type high density multi path heat exchanger”

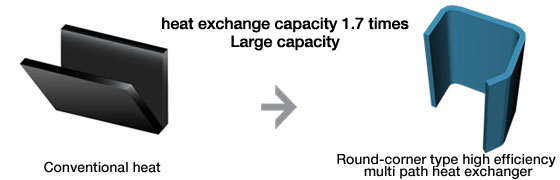

High efficiency operation was realized by the development of heat exchanger of round-corner shape which increases heat exchange capacity 1.7 times compared with conventional model in spite of reducing installation space.

Also, heat exchange efficiency has substantially improved by the high density multi path heat exchanger adopting thin copper pipe of Φ7mm realizing high energy-saving performance.

Furthermore, by the round-corner shape, total air inhaling is possible even at multiple connection maintaining high performance.

2）Realizing high efficiency operation of compressor and low noise operation of fan by adopting sine-wave driving system DC inverter

The low noise air blowing fan was realized by improving efficiency of efficient DC twin rotary compressor and equipping DC fan motor as well as adopting DC inverter control of sine-wave drive system with less rotation loss.

3）Energy-saving control function according to the use condition

Various energy-saving functions are equipped to save electricity charge such as function of “setting upper and lower limit of room temperature” to prevent excessive cooling and heating, “peak cut” function to cut power consumption rising at the peak in hot season and function of “timer to prevent failure to turn off power” in corridors or meeting rooms where the failure tends to occur at the end of working time.

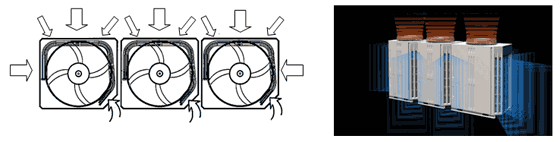

1）Realizing space-saving installation (reducing installation space by 16%^(*3) compared with conventional model) by adopting new type heat exchanger and “corner cut air inhaling structure” for outdoor unit

In the new outdoor unit, while improving the efficiency, considerable space-saving installation has been realized by adopting “corner cut air inhaling structure” optimizing the design of housing and cutting the corner of housing in order to make use of the feature of “round-corner type high density multi path heat exchanger”.

Installation easiness was enhanced by reducing total installation space by 16% and 44% compared with conventional models of 8/10 HP class and 16 HP class respectively, which produced surplus space on the roof and each floor.

8 / 10 HP class

16 HP class

2）Enhancing design flexibility considerably by adopting long piping designing up to 1,000m total pipe length and maximum external static pressure 80Pa

Design flexibility for the installation in large scale offices and hotels was enhanced by extending total pipe length up to 1,000m and pipe length after the first branching up to 60m.

Furthermore, industry's top class^(*1) external static pressure 80Pa was realized and the designing of installation in each floor of high-rise building and balcony was made easy by dealing with the connection with long air blowing hood.

Designing to meet diversified needs is made possible

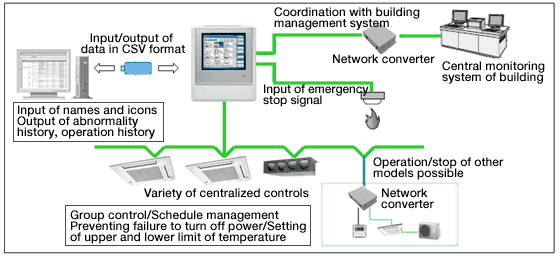

1）Touch-panel type centralized controller by which various control functions can be easily operated

2）System controller strengthening remote control function (Software)

Centralized control and remote control possible with one PC

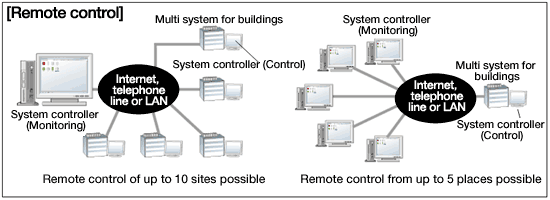

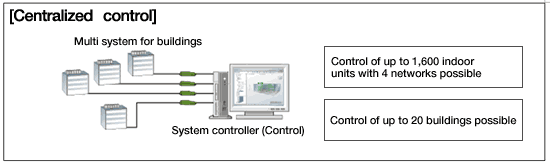

The control of up to 1,600 indoor units with 4 networks is possible with one system controller. Centralized control of up to 20 buildings such as business office and facility with multiple buildings is possible.

Furthermore, by adopting Web function, remote control of up to 10 sites can be made such as centrally controlling air conditioners installed in retail shops and restaurants at multiple areas. Also, it helps to establish flexible control system such as changing surveillance system at day and night by monitoring air conditioners of one building from 5 different places.

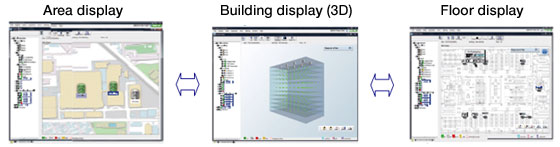

Variety of centralized controls by simple operation

Checking and operation of each equipment can be made simply according to the floor to be controlled by setting screen display of area/whole building/floor/individual room of the building in which air conditioning is controlled. Especially, industry's first 3D picture display of building makes it possible to check operating condition of each equipment and abnormality at a glance. Besides, variety of centralized controls such as operation setting of each equipment, electricity distribution function, system setting by zone can easily be made.
