Airstage (VRF Systems) Indoor Unit Wall Mounted

Download :
Catalog

Model

208/230V Single-Phase
ASUB18TLAV1
ASUB24TLAV1
ASUA30TLAV2
ASUA36TLAV1 / TLAV2

Specifications

Note :
Specifications are based on the following conditions: Built-in protective functions may limit capacity or shut off unit if unit is operated outside of unit design operating temperature ranges.
Cooling :
Indoor temperature of 80°F(26.7°C)DB/67°F(19.4°C)WB; and outdoor temperature of 95°F(35°C)DB/75°F(23.9°C)WB.
Heating :
Indoor temperature of 70°F(21.1°C)DB/60°F(15.6°C)WB, and outdoor temperature of 47°F(8.3°C)DB/43°F(6.1°C)WB.
Pipe Length :
25ft. (7.5m),
Height difference :
0ft.(0m)(Outdoor unit - indoor unit).

*Cooling / Heating

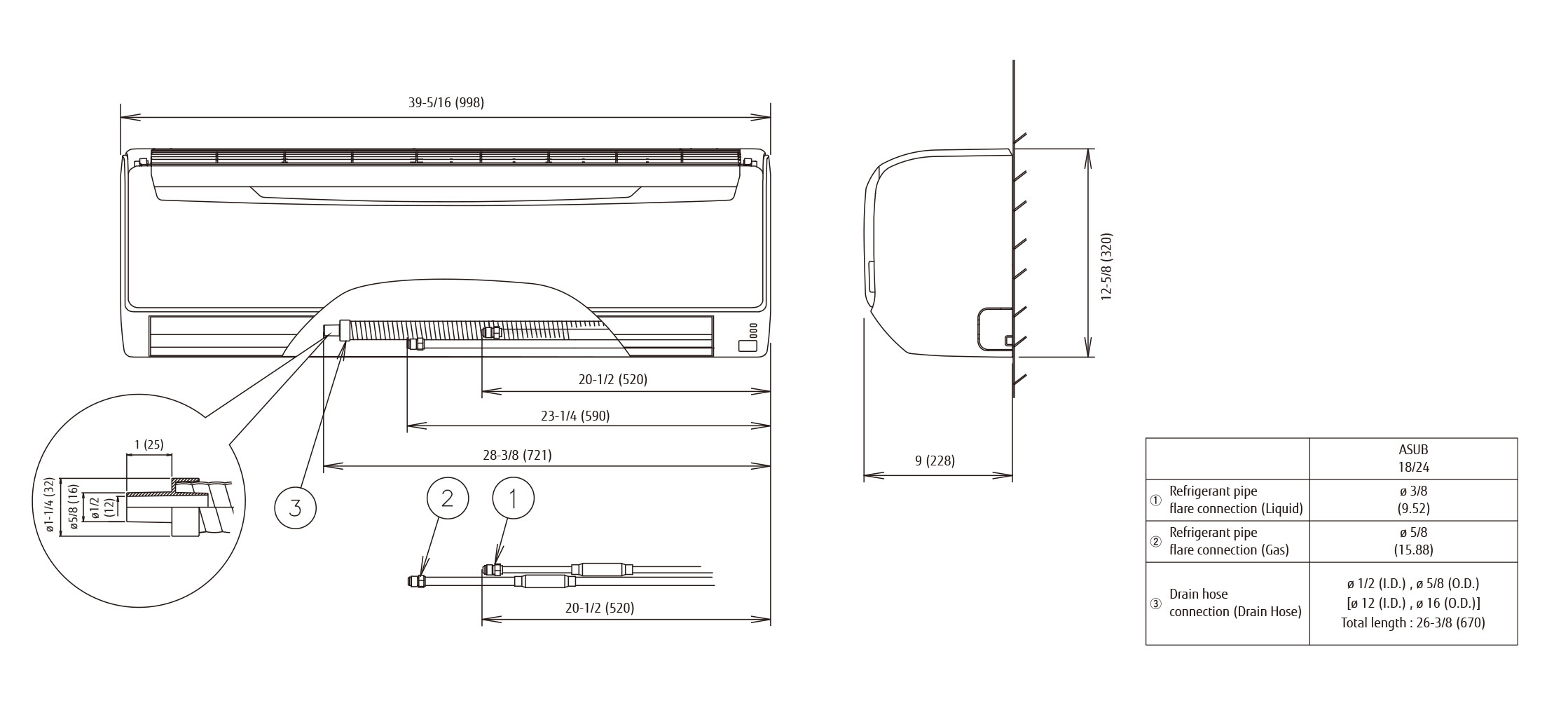

Dimensions

Feature

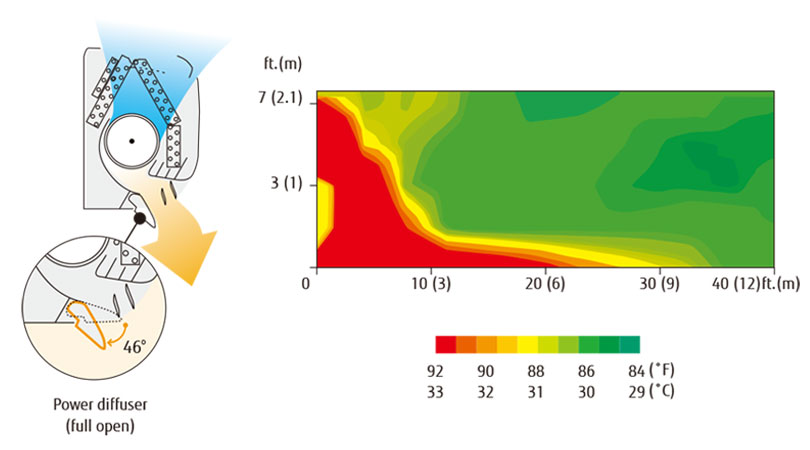

More comfortable airflow by adopting power diffuser

"Vertical airflow" provides powerful floor level heating.

Outside air conditions:
35.6˚F (2˚C) 60%
Operation contents:
Heating
Set temperature (Max set temp)
86˚F (30˚C), Air flow Hi
Vertical flap :
Downward
Horizontal flap :
Center

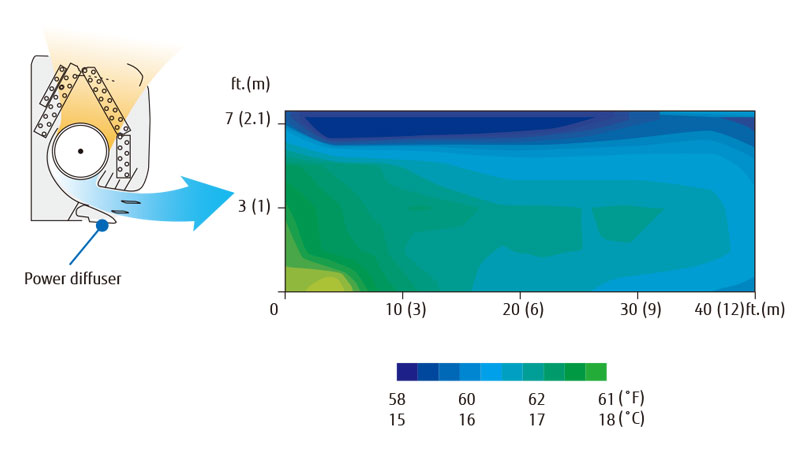

“Horizontal airflow” does not blow cool air directly at the occupants in the room

Outside air conditions:
95˚F (35˚C) 40%
Operation contents:
Cooling
Set temperature (Min set temp)
64˚F (18˚C), Air flow Hi
Vertical flap :
Downward
Horizontal flap :
Center

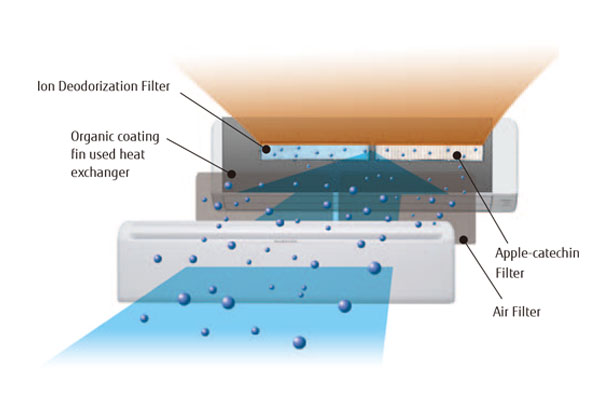

Air conditioner filter features

Antibacterial deodorizing pre-filter with special ceramic powder

Long-life* Ion Deodorization Filter

The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by the ultra-fineparticle ceramic.

Apple-catechin Filter*

Fine dust, invisible mold spores, and harmful microorganisms are absorbed onto the filter by static electricity, and further growth is inhibited and deactivated by the polyphenol extracted from apples.

Compact & Slim design

Stylish, slim and elegant, these popular wall mounted units are perfect for smaller rooms where a clean, aesthetic design is preferred. Variable speed DC fan motors deliver heating or cooling quietly and comfortably.

Easy maintenance

Simplification of drain pan cleaning improves maintenance-ability.
