Airstage (VRF Systems) Indoor Unit Floor
![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-02.png)
- Download :
-
Catalog
Model

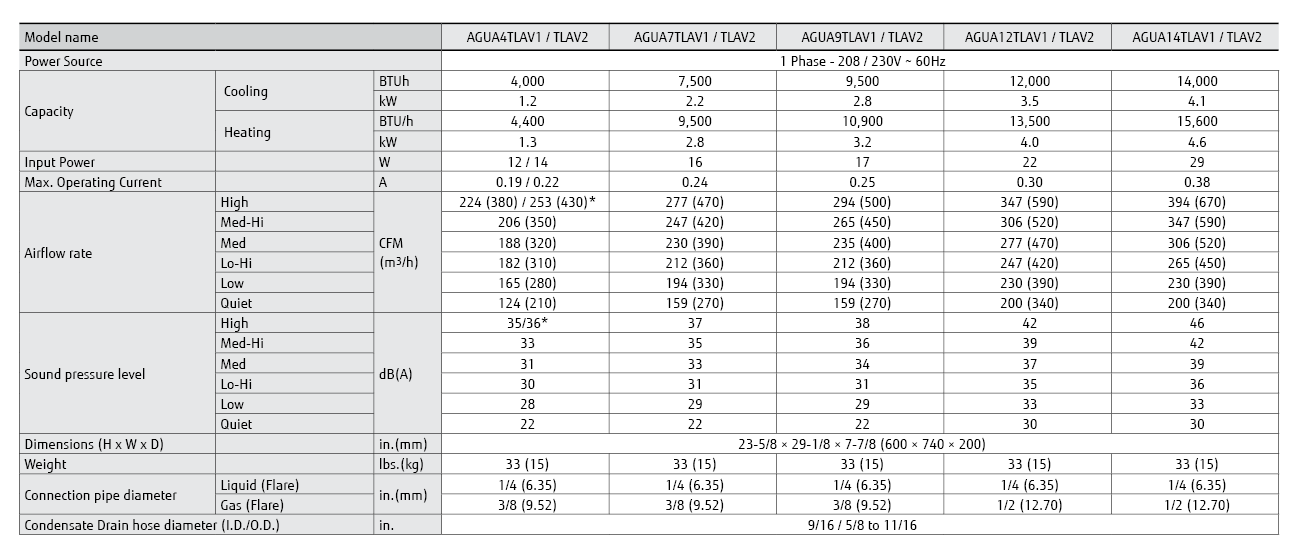

208/230V Single-Phase | |
---|---|
AGUA4TLAV1 / TLAV2 | |
AGUA7TLAV1 / TLAV2 | |
AGUA9TLAV1 / TLAV2 | |
AGUA12TLAV1 / TLAV2 | |
AGUA14TLAV1 / TLAV2 |
- Note :
- Specifications are based on the following conditions.
Built-in protective functions may limit capacity or shut off unit if unit is operated outside of unit design operating temperature ranges. - Cooling :
- Indoor temperature of 80°F(26.7°C)DB/67°F(19.4°C)WB,and outdoor temperature of 95.0°F(35°C)DB/75°F(23.9°C)WB.
- Heating :
- Indoor temperature of 70°F(21.1°C)DB/60°F(15.6°C)WB,and outdoor temperature of 47°F(8.3°C)DB/43°F(6.1°C)WB.
- Pipe length :
- 25ft.(7.5 m), Height difference : 0ft.(0 m) (Outdoor unit - Indoor unit).
- *:
- This value is “cooling operation / heating operation”.
Dimensions

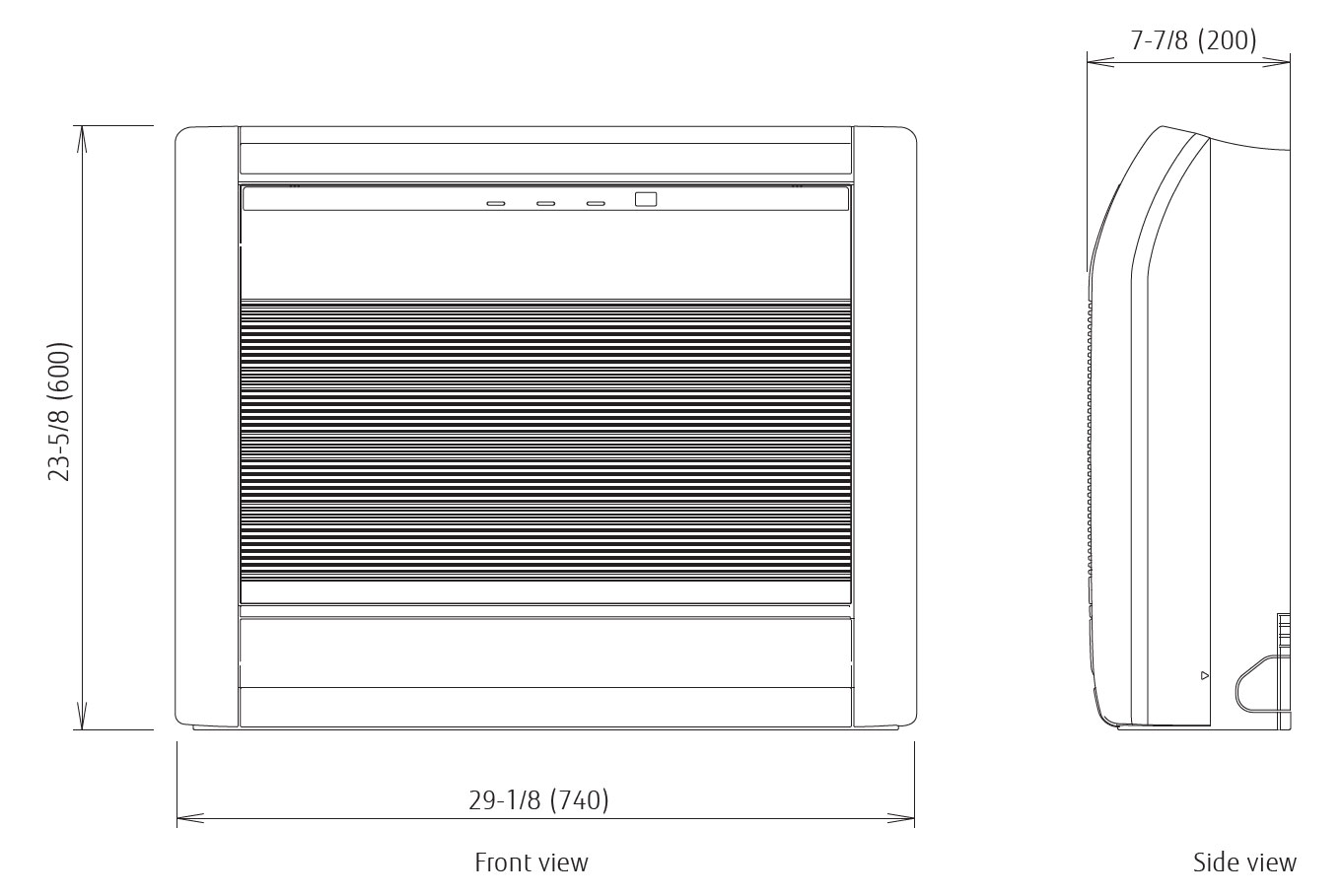

![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-01-dimensions-01.jpg)
Feature
2-Fan & Wide airflow
Individual vertical airflow by 2-fan can control the whole room comfortably.
Cooling
![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-wide-airflow-cooling-01.jpg)

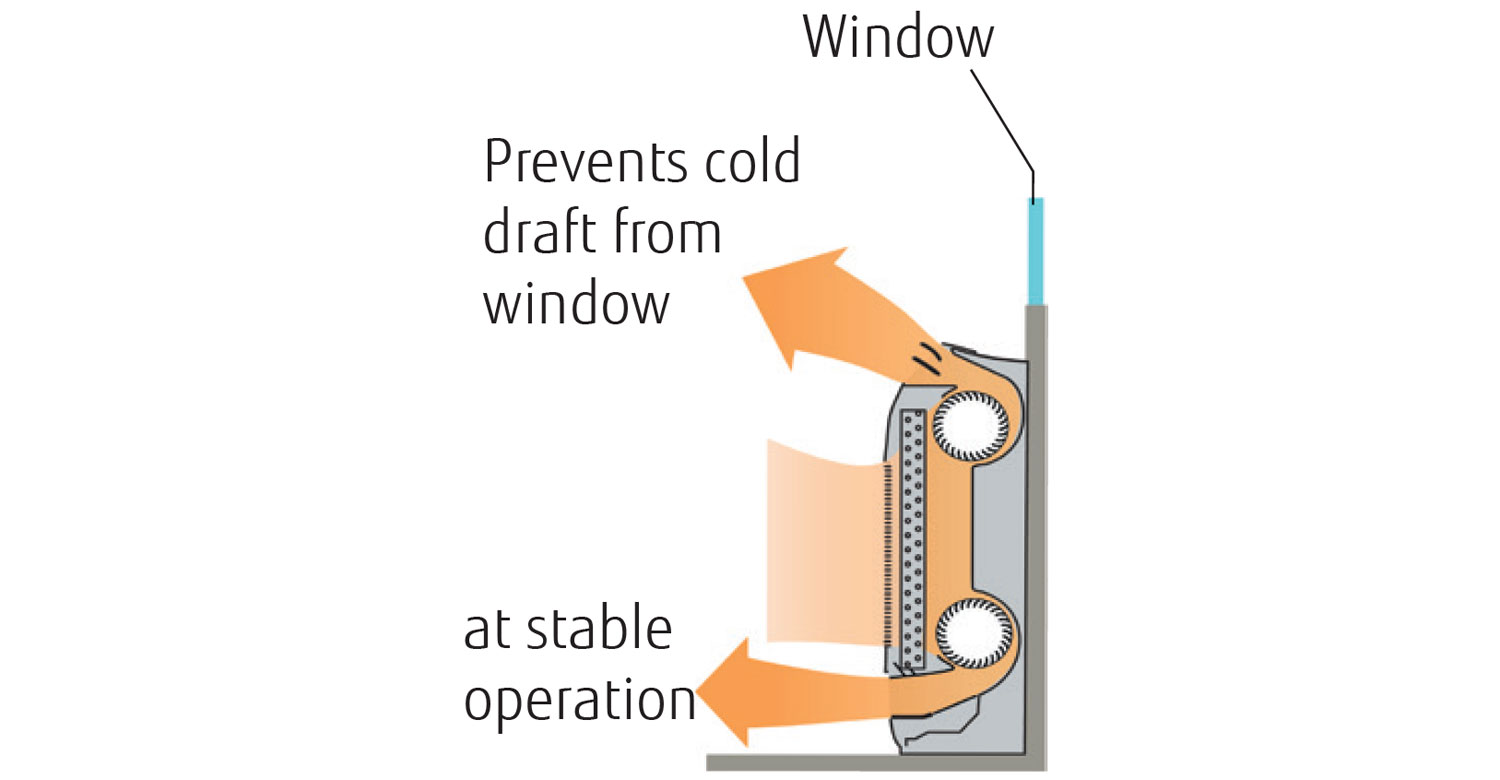

Heating
![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-wide-airflow-heating-01.jpg)
Flexible piping connection 6 direction of drain & piping
Due to compact and whole surface suction method model, floor, concealed, half concealed, or wall mounted installation can be available to match the room layout.

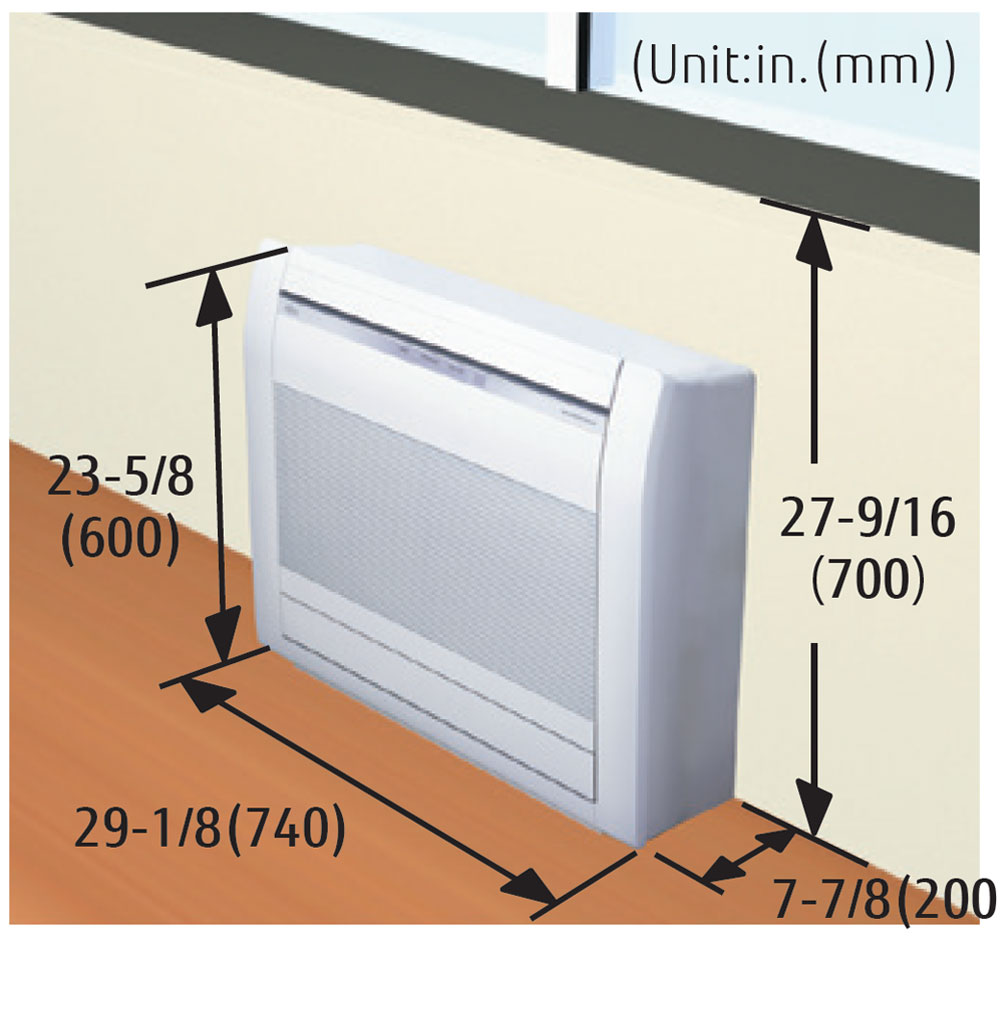

![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-beneath-standard-window-01.jpg)
Beneath standard window

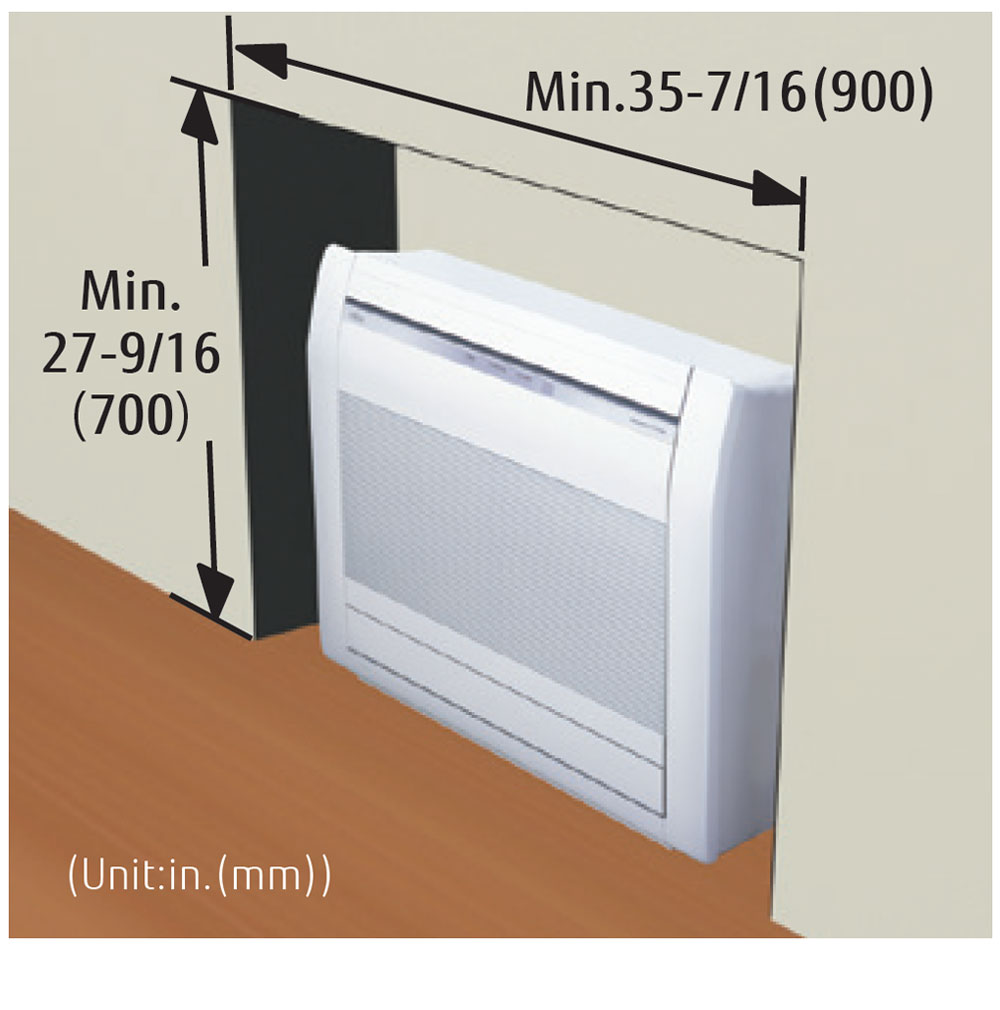

![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-standard-concave-portion-01.jpg)
Standard concave portion

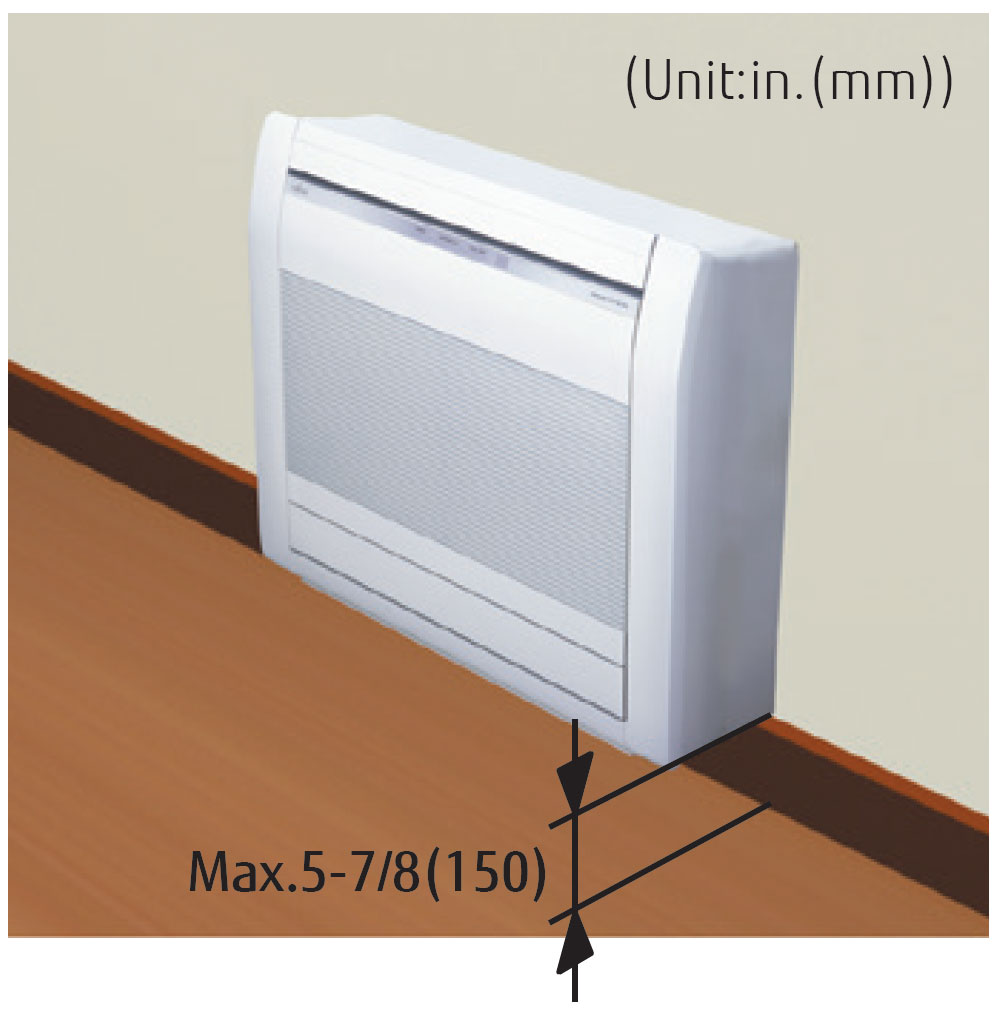

![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-wall-01.jpg)
Wall
![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-half-concealed-01.jpg)
Half concealedbr
(Optional parts necessary)
Quiet operation
6-Step Speed
![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-quiet-operation-01.jpg)
Quiet operation is realized by 6 fan speed control. (via 2 wire controller)
- * Compatible Remote Controller is as follows :
- UTY-RNRUZ5 / UTY-RSRY / UTY-RHRY / UTY-DCGY / UTY-DTGYZ1 / UTY-ALGXZ1 / UTY-APGXZ1
- Low noise :
- 22 dB(A) (AGUA4/7/9)
Flexible piping connection 6 direction of drain & piping
Back view

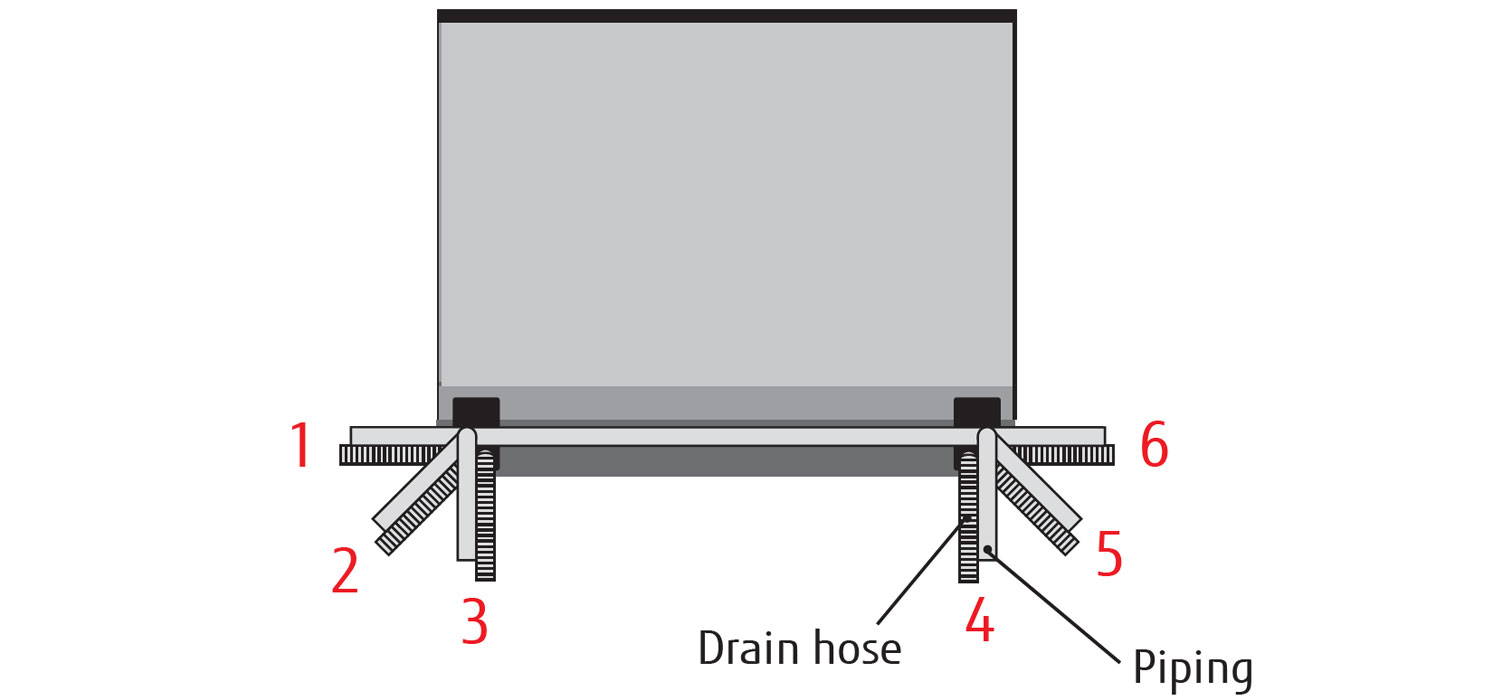

![](/shared/us/img-fcus-vrf-indoor-floor-agua04-14-piping-connection-01.jpg)
Drain hose and piping can be drawn flexibly in the right, left, side, and down directions.
Optional parts
- Half Concealed Kit :
- UTR-STA
