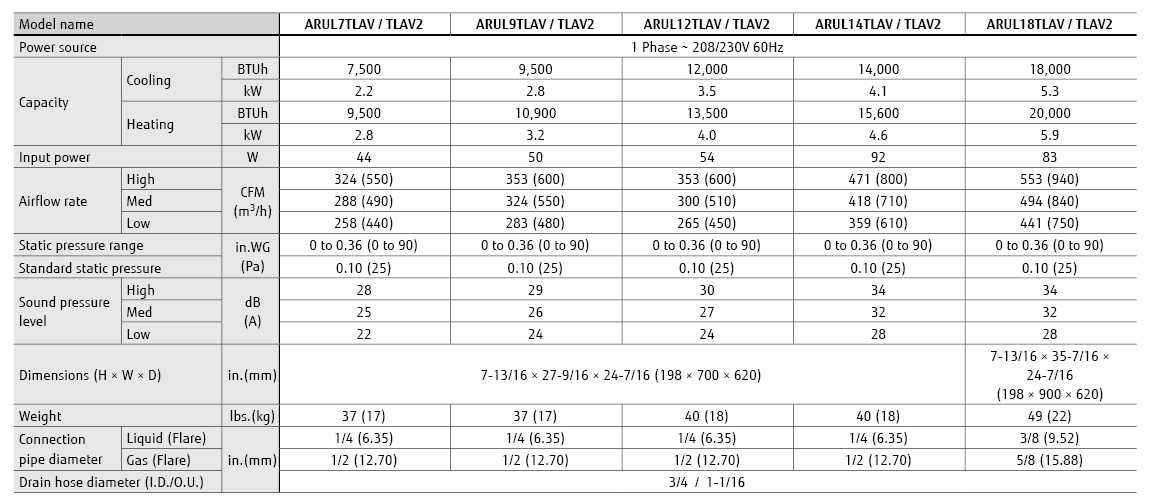

Specifications

Note :

Specifications are based on the following conditions.
Built-in protective functions may limit capacity or shut off unit if unit is operated outside of unit design operating temperature ranges.

Cooling :

Indoor temperature of 80°F(26.7°C)DB/67°F(19.4°C)WB,and outdoor temperature of 95.0°F(35°C)DB/75°F(23.9°C)WB.

Heating :

Indoor temperature of 70°F(21.1°C)DB/60°F(15.6°C)WB,and outdoor temperature of 47°F(8.3°C)DB/43°F(6.1°C)WB.

Pipe length :

25ft.(7.5 m), Height difference : 0ft.(0 m) (Outdoor unit - Indoor unit).

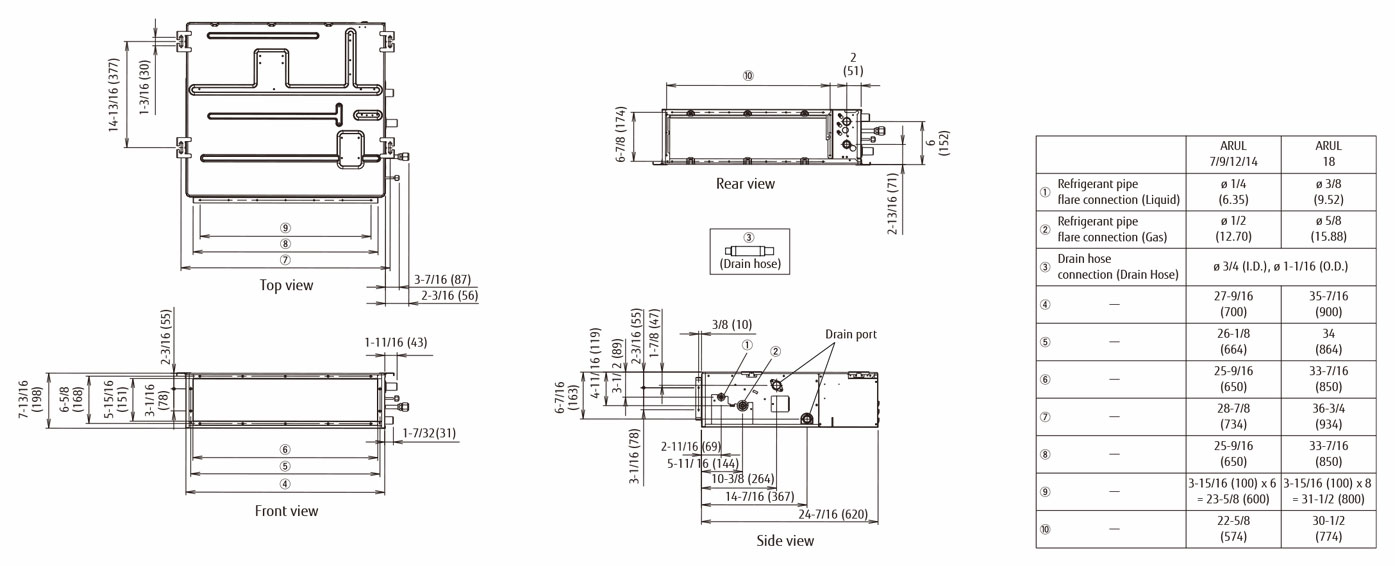

Dimensions

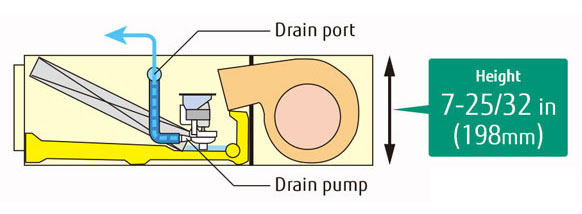

2-stage turbo fan

This model has a slim design so it can be installed in narrow ceilings.

Selectable External Static Pressure

The external static pressure can be selected for any value from 0 to 0.36 in.WG. (0 to 90 Pa). Static pressure setting can be changed using the remote controller.

Flexible installation

Slim Compact Duct units can be mounted horizontally or vertically and can deliver up to 0.36” external static pressure providing the power and flexibility to meet the needs of most applications.

Air-intake

Air intake direction can be selected to match the installation site.

In locations where fan noise may be a concern, do not use bottom inlet without providing an elbow to prevent line of sight to the fan.

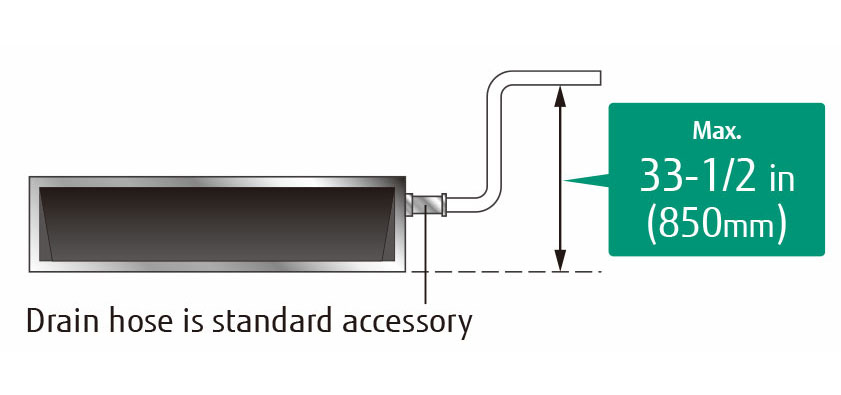

High lift drain pump

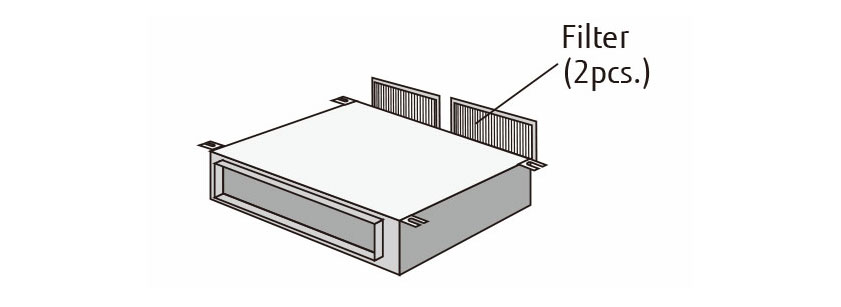

Filter (Accessory)

Auto Louver Grille Kit (Option)

Simple flat Auto Louver will provide comfortable airflow and fit well with most decors.

• Operation with indoor unit
• UP and Down auto swing
• Auto-closing louver

Optional parts

Remote Sensor Unit :

UTY-XSZX

IR Receiver Unit :

UTB-YWC

Auto Louver Grille Kit :

UTD-GXSA-W (for ARUL7/9/12/14TLAV)

UTD-GXSB-W (for ARUL18TLAV)
