Airstage (VRF Systems) Indoor Unit 4-way Flow Cassette

Download :
Catalog

Model

208/230V Single-Phase
AUUB18TLAV
AUUB24TLAV
AUUB30TLAV
AUUB36TLAV

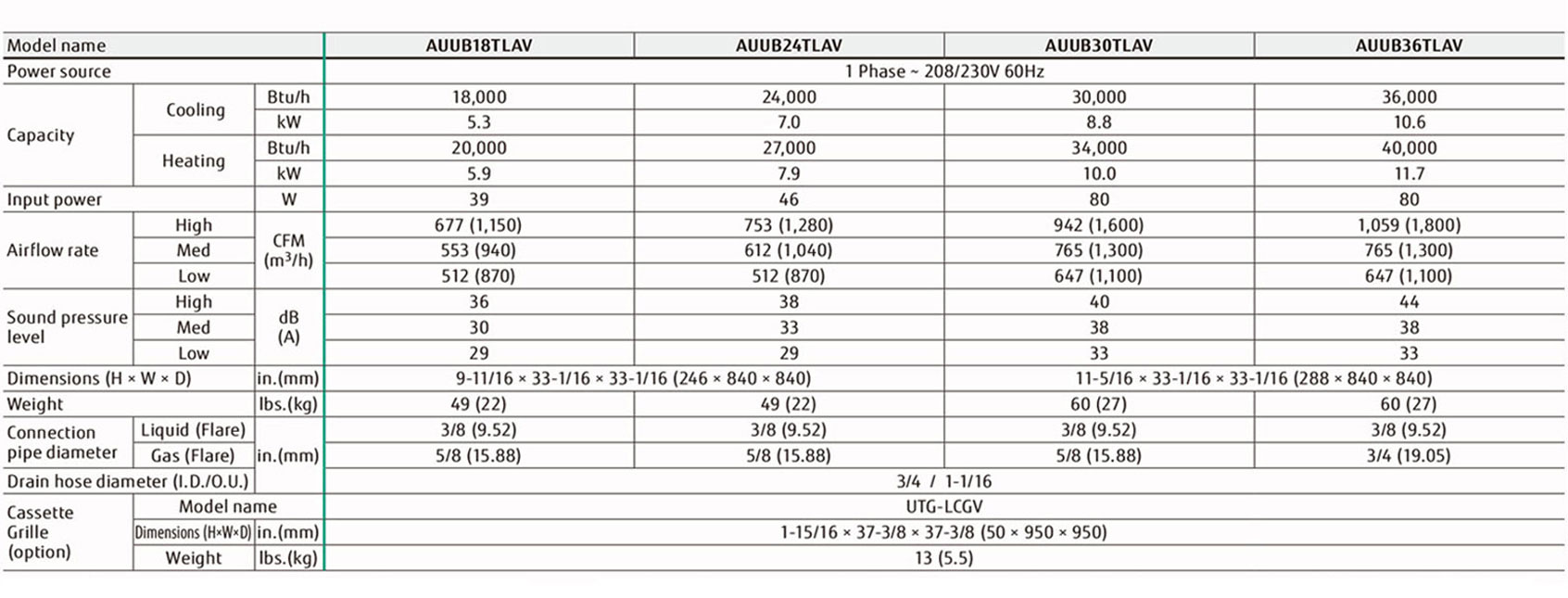

Specifications

Note :
Specifications are based on the following conditions.
Built-in protective functions may limit capacity or shut off unit if unit is operated outside of unit design operating temperature ranges.
Cooling :
Indoor temperature of 80°F(26.7°C)DB/67°F(19.4°C)WB,and outdoor temperature of 95.0°F(35°C)DB/75°F(23.9°C)WB.
Heating :
Indoor temperature of 70°F(21.1°C)DB/60°F(15.6°C)WB,and outdoor temperature of 47°F(8.3°C)DB/43°F(6.1°C)WB.
Pipe length :
25ft.(7.5 m), Height difference : 0ft.(0 m) (Outdoor unit - Indoor unit).

Dimensions

Feature

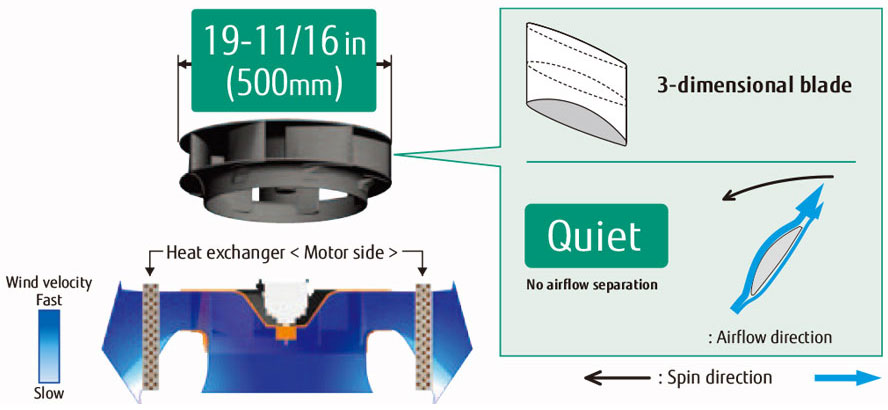

High efficiency turbo fan with 3-dimensional blade

High efficiency airflow distribution has been achieved by the introduction of a 3 dimensional blade which increases the air passing over the heat exchanger.

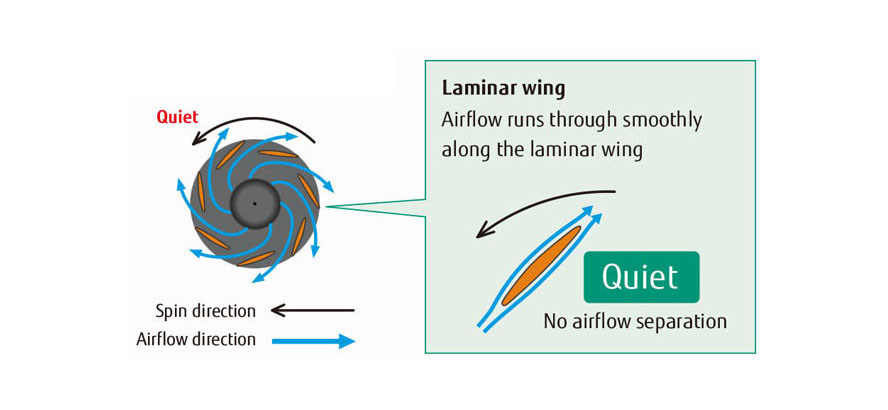

Quiet quality

Optimization of wing form (laminar wing type) and wing number (7 blades each)

Designed by CFD-analysis (fluid) simulations

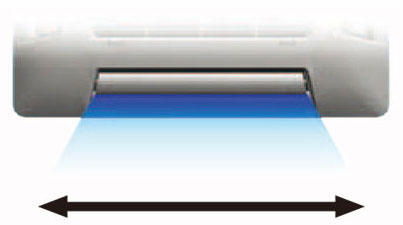

Improvement of airflow distribution

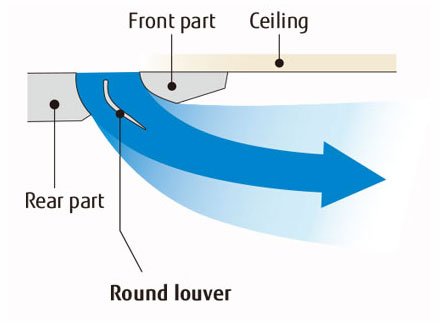

The louver design distributes air leaving a space between the chassis and the ceiling allowing far and wide air flow distribution.

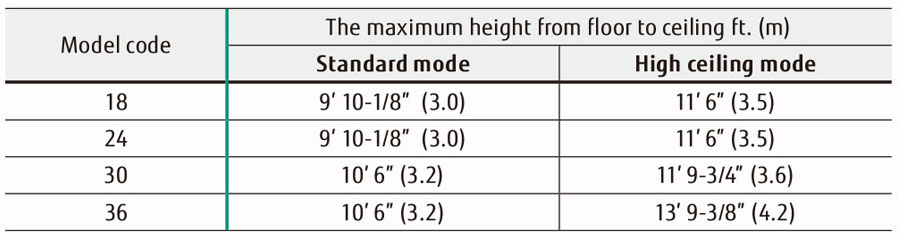

High ceiling mode

This cassette can be installed up to a height of 13-3/4ft. (4.2m)(AUUA36).

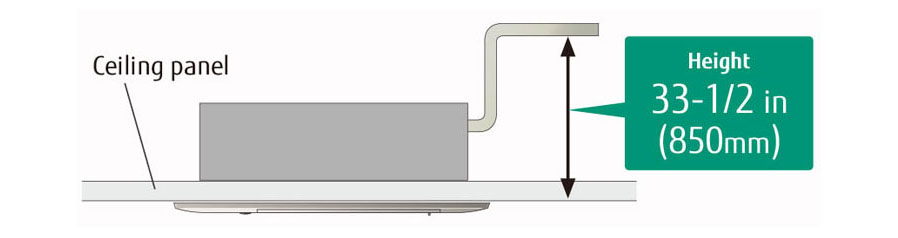

High lift drain pump

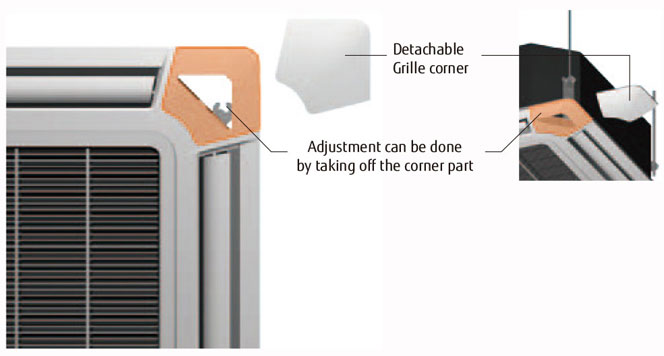

Hanger position can be adjusted after installation

Optional parts

IR Receiver Kit :
UTY-LRHYB1
Air Outlet Shutter Plate :
UTR-YDZC
Panel Spacer :
UTG-BGYA-W
Insulation Kit for High Humidity :
UTZ-KXGA / UTZ-KXGB
Wide Panel :
UTG-AGYA-W
Fresh Air Intake Kit :
UTZ-VXGA
