Airstage (VRF Systems) Indoor Unit Circular Flow Cassette

Download :
Catalog

Model (Slim type)

208/230V Single-Phase
AUUB12TLAV2
AUUB14TLAV2
AUUB18TLAV1 / TLAV2
AUUB24TLAV1 / TLAV2
AUUB30TLAV1 / TLAV2

Model (Large type)

208/230V Single-Phase
AUUB36TLAV2
AUUB48TLAV1 / TLAV2

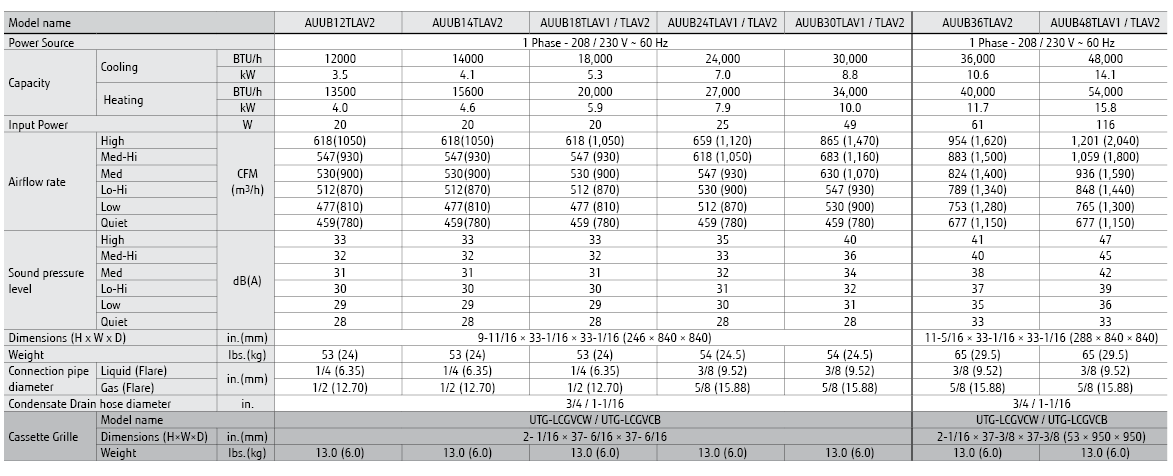

Specifications

Note :
Specifications are based on the following conditions.
Built-in protective functions may limit capacity or shut off unit if unit is operated outside of unit design operating temperature ranges.
Cooling :
Indoor temperature of 80°F(26.7°C)DB/67°F(19.4°C)WB,and outdoor temperature of 95.0°F(35°C)DB/75°F(23.9°C)WB.
Heating :
Indoor temperature of 70°F(21.1°C)DB/60°F(15.6°C)WB,and outdoor temperature of 47°F(8.3°C)DB/43°F(6.1°C)WB.
Pipe length :
25ft.(7.5 m), Height difference : 0ft.(0 m) (Outdoor unit - Indoor unit).

Dimensions

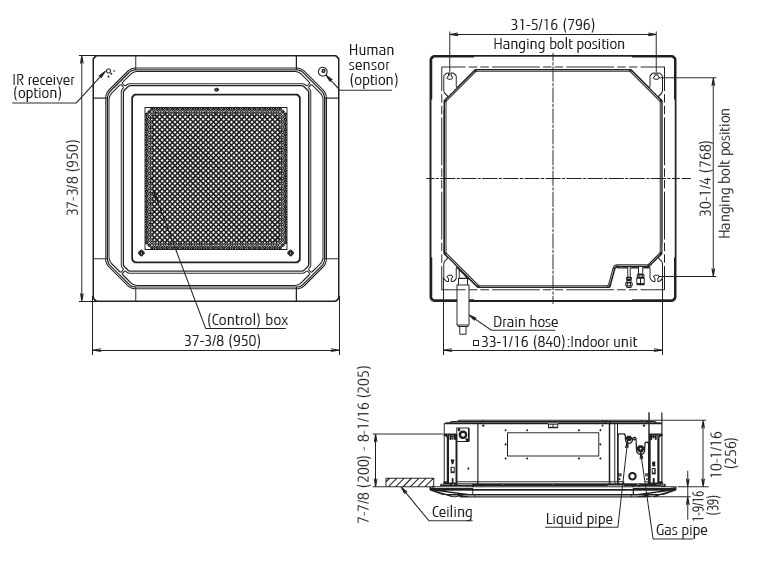

Models: AUUB12 / AUUB14 / AUUB18 / AUUB24 / AUUB30

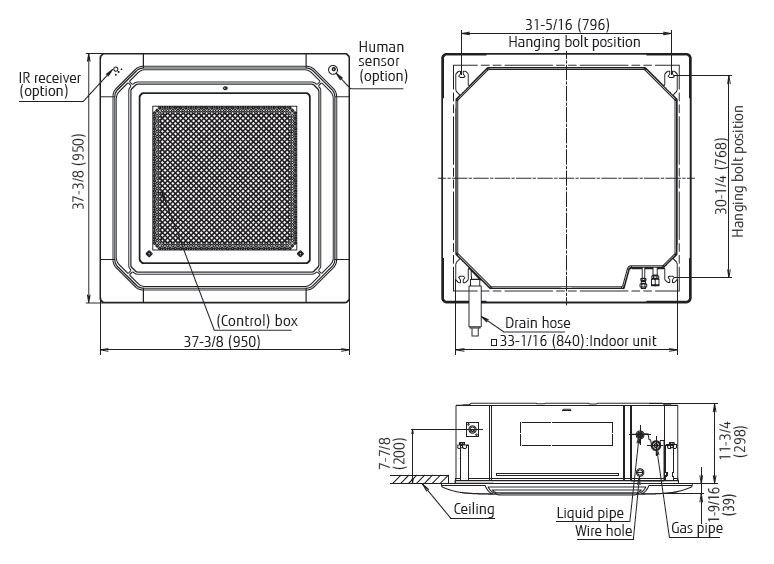

Models: AUUB36 / AUUB48

Feature

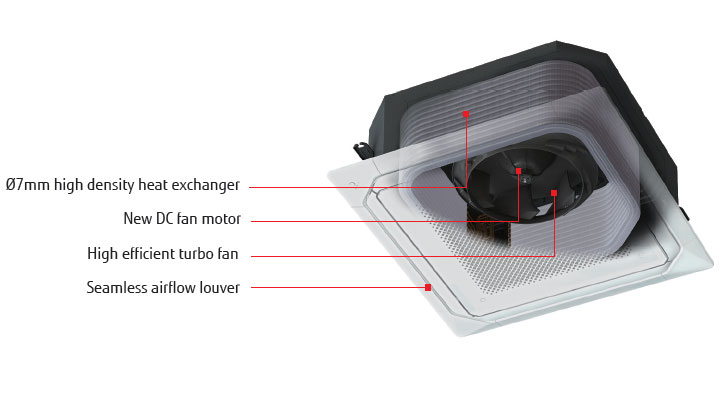

Unique Circular Flow design

This new cassette style indoor unit achieves better air distribution using 360-degree louvers, allowing conditioned air to reach every corner of a room.

Uniform temperature air conditioning

Achieve a comfortable air conditioning spread to every corner of the room by circular flow & wide vertical airflow.

Individual louver control

Each louver can be set individually using to bring comfortable air exactly where you want it in any room configuration.

Compatible remotes and central controllers are: Touch Panel Wired RC (UTY-RNRUZ5) / Touch Panel Controller (UTY-DTGYZ1), System Controller (UTY-APGXZ1) / System Controller Lite (UTY-ALGXZ1).

Control of louvers, including swinging direction, keeps individuals from having air blown directly on them. Air is blown efficiently throughout the space.

* Touch Panel Wired RC (UTY-RNRUZ5) only

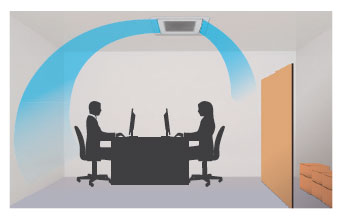

Comfortable air conditioning by preventingdirect blowing of cold air and by providingswinging air flow simultaneously.

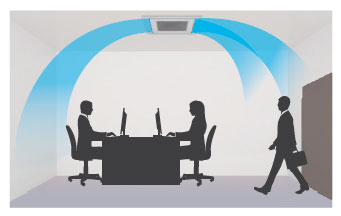

Efficient air conditioning based on the room layout

Human sensor increases more energy saving

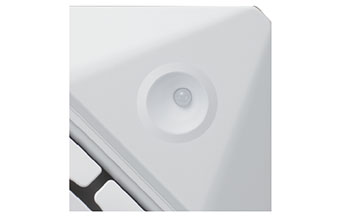

Energy saving operation starts automatically by detecting the motion of a person. 2 modes of save operation mode and stop mode can be selected.

* Touch Panel Wired RC (UTY-RNRUZ5) only

Human sensor (Option)

2 modes can be selected.

Auto saving :
Power is saved while people are away.
Auto OFF :
Operation stops after people go out.

Quiet operation & 6 Fan speed control

Drastic low noise is realized by new airflow structure. In addition, multistep quiet operation is available by 6-step sound level settings.

* Compatible Remote Controller is as follows:
UTY-RNRUZ5 / UTY-RSRY / UTY-RHRY / UTY-DCGY / UTY-DTGYZ1 / UTY-ALGXZ1 / UTY-APGXZ1

Optional parts

IR Receiver Unit :
UTY-LBHXD
Human Sensor Kit :
UTY-SHZXC
Air Outlet Shutter Plate :
UTR-YDZK
Flesh Air Intake Kit :
UTZ-VXRA
Wide Panel :
UTG-AKXA-W
Panel Spacer :
UTG-BKXA-W
Insulation Kit for High Humidity :
UTZ-KXRA
Cassette Grille :
UTG-LCGVCW / UTG-LCGVCB
