DX-Kit
UTP-VX90A × 2
- Multiple temperature sensors optimally control the air handling unit and fan coil unit
- Supports a wide range of capacity classes
- A variety of controls to match the application
- Functions Summary
- Installation Limitation
Specifications
| EEV unit |
Model name |
UTP-VX90A × 2 |
| Connectable Capacity class |
40.0kW |
50.0kW |
| Capacity |
Cooling |
40.0kW
(28.1 - 44.7kW) |
50.4kW
(44.8 - 50.4kW) |
| Heating |
45.0kW
(31.6 - 49.9kW) |
56.5kW
(50.0 - 56.5kW) |
Airflow Rate
(Reference value) |
6,400m³/h |
8,000m³/h |
| Dimensions |
[160(H) × 220(W) × 90mm(D)] × 2 |
| Weight |
2kg × 2 |
| Connection pipe diameter (Liquid) |
Φ12.70mm |
| Control unit |
Model name |
UTY-VDGX |
| Power source |
230V / 1Φ / 50Hz |
| Dimensions |
400(H) × 400(W) × 120mm(D) |
| Weight |
10kg |
- Note :
- Specifications are based on the following conditions.
- Cooling :
- Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
- Heating :
- Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
- Pipe length :
- 7.5m Voltage : 230 [V].
Dimensions

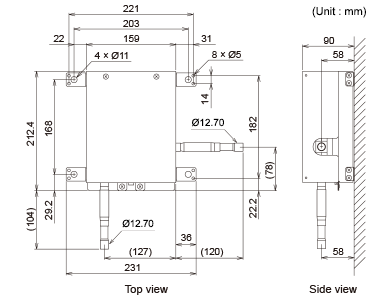

EEV unit
Control unit
