DX-Kit
UTP-VX30A
- Multiple temperature sensors optimally control the air handling unit and fan coil unit
- Supports a wide range of capacity classes
- A variety of controls to match the application
- Functions Summary
- Installation Limitation
Specifications
| EEV unit |
Model name |
UTP-VX30A |
| Connectable Capacity class |
5.0kW |
6.3kW |
8.0kW |
| Capacity |
Cooling |
5.6kW
(5.1 - 5.9kW) |
6.3kW
(6.0 - 7.1kW) |
8.0kW
(7.2 - 9.0kW) |
| Heating |
6.3kW
(5.7 - 6.7kW) |
7.1kW
(6.8 - 8.0kW) |
9.0kW
(8.1 - 10.0kW) |
Airflow Rate
(Reference value) |
1,060m³/h |
1,200m³/h |
1,520m³/h |
| Dimensions |
160(H) × 220(W) × 90mm(D) |
| Weight |
2kg |
| Connection pipe diameter (Liquid) |
Φ9.52mm |
| Control unit |
Model name |
UTY-VDGX |
| Power source |
230V / 1Φ / 50Hz |
| Dimensions |
400(H) × 400(W) × 120mm(D) |
| Weight |
10kg |
- Note :
- Specifications are based on the following conditions.
- Cooling :
- Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
- Heating :
- Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
- Pipe length :
- 7.5m Voltage : 230 [V].
Dimensions

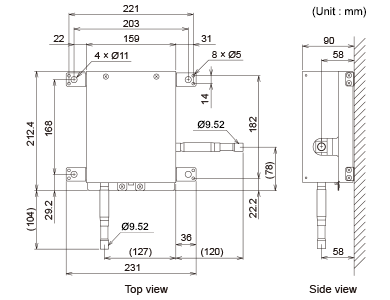

EEV unit
Control unit
