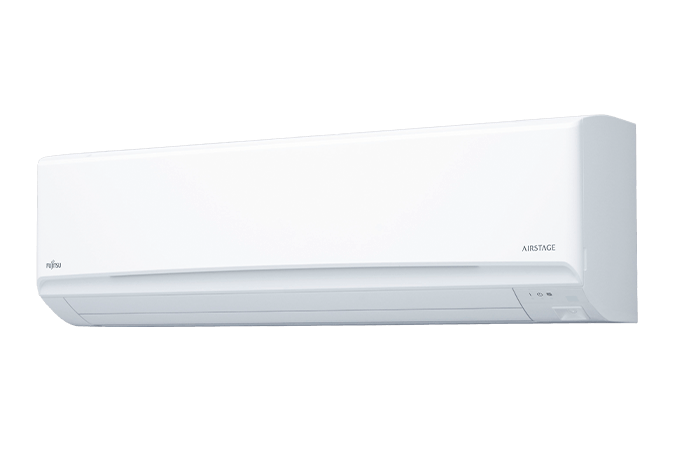

ASYA034GTEH
10.0 kW
11.2 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 10.0 kW | |
| Heating | 11.2 kW | ||
| Input Power | 103 W | ||
| Airflow Rate | Cooling | High | 1620 m³/h |
| Medium High | 1300 m³/h | ||
| Middle | 1120 m³/h | ||
| Low High | 980 m³/h | ||
| Low | 890 m³/h | ||
| Quiet | 700 m³/h | ||
| Heating | High | 1520 m³/h | |
| Medium High | 1300 m³/h | ||
| Middle | 1120 m³/h | ||
| Low High | 980 m³/h | ||
| Low | 890 m³/h | ||
| Quiet | 700 m³/h | ||
| Sound Pressure Level*2 | Cooling | High | 55 dB(A) |
| Medium High | 51 dB(A) | ||
| Middle | 47 dB(A) | ||
| Low High | 43 dB(A) | ||
| Low | 39 dB(A) | ||
| Quiet | 33 dB(A) | ||
| Heating | High | 54 dB(A) | |
| Medium High | 51 dB(A) | ||
| Middle | 47 dB(A) | ||
| Low High | 43 dB(A) | ||
| Low | 39 dB(A) | ||
| Quiet | 33 dB(A) | ||
| Net Dimensions | Height | 340 mm | |
| Width | 1150 mm | ||
| Depth | 280 mm | ||
| Net Weight | 18.0 kg | ||
| Connection Pipe Diameter | Liquid (Flare) | φ9.52 mm | |
| Gas (Flare) | φ15.88 mm | ||
| Drain Hose Diameter | φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm | ||
| EV Kit (optional) | EV Kit (optional) | ||
Scroll

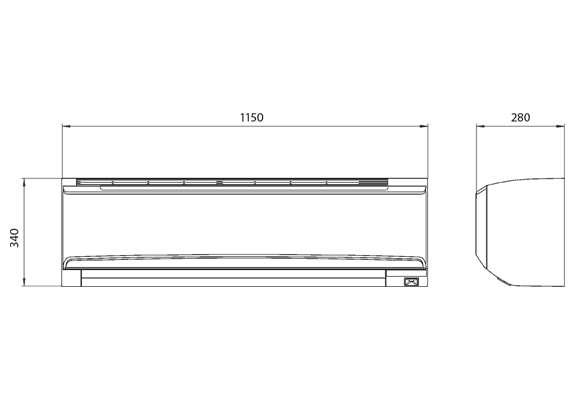

Dimensions
Indoor Unit : ASYA034GTEH
