• J-IIIL Series

AIRSTAGE™ J-IIIL Series

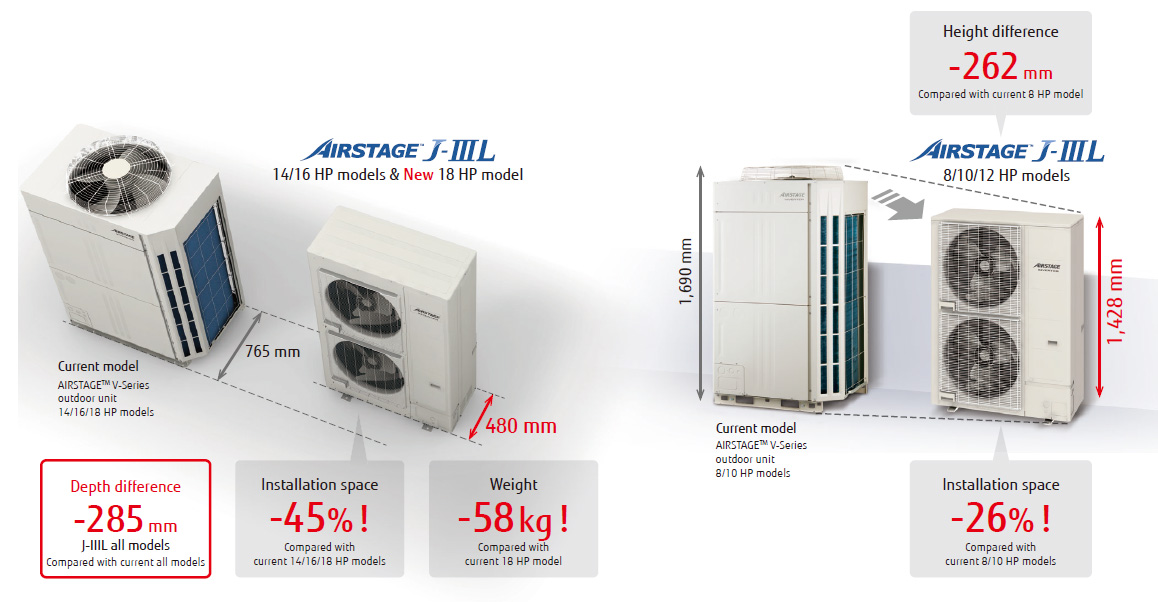

Compact Design

This series is much more compact than conventional comparable outdoor unit. Inconspicuous installation is available even on the roof.

Advanced high efficiency technology

Large propeller fan

The high efficiency and the low sound operation are mutually realized by reduction of a draft loss which are enabled by the Fujitsu General's original blade design and a large diameter propeller fan.

DC fan motor

Miniaturized, low noise, high efficiency, multi-stage DC fan motor is mounted.

Large heat exchanger

Heat exchange performance is substantially improved by mounting of 2-row large heat exchanger.

DC inverter control

Efficiency is improved by mounting of new active filter module.

Subcool heat exchanger

Cooling performance is improved by mounting of dual tube heat exchanger.

Scroll compressor

The equipment of scroll compressor with a wide range of rotational frequency from 15 to 120 rps together with Fujitsu General's unique sensorless sine wave control method which smoothly control the input power run into the motor realized a mutual improvement on the energy efficient operation and the low sound operation.

Long Piping Length

Our advanced refrigerant control technology allows us to achieve a total refrigerant piping length of 400 meters. This opens up new possibilities in system design.

Up to 42 units* can be connected

The combination of the smallest but adequate capacity indoor unit and a new outdoor unit with the optimum heat exchanger structure has realized the industry’s top class connection of 42 units

*
18 HP model

High Static Pressure

External static pressure is available up to 60Pa for 14/16/18HP.(20Pa for 8HP, 30Pa for 10/12HP)

Top Class Low Operating Sound

Top class low operating sound is realized. Highly suited to densely populated areas thanks to their low operating sound.
