VRF Systems Indoor Unit Lineup

95 models of 11 types, with capacity ranging from 1.1 to 28.0 kW

Indoor units for the VRF Systems are compact, highly efficient, quiet, and user-friendly. They are easy to install and maintain and have exterior design features that fit nicely with any room decor. In addition, a variety of optional parts are available to provide an even more desirable air conditioning experience to occupants.

Cassette
  Capacity Range
Model Code 4 7 9 12 14 18 24 30 34 36 45 54
Capacity (kW) 1.1 2.2 2.8 3.6 4.5 5.6 7.1 9.0 10.0 11.2 12.5 14.0
3D Flow Cassette

Compact Grid Standard Type

Circular Flow Cassette
(Slim Type)

Circular Flow Cassette
(Large Type)

One-way Flow Type

Scroll
Duct
  Capacity Range
Model Code 4 7 9 12 14 18 24 30 34 36 45 60 72 90 96
Capacity (kW) 1.1 2.2 2.8 3.6 4.5 5.6 7.1 9.0 10.0 11.2 12.5 18.0 22.4 25.0 28.0
Mini Duct

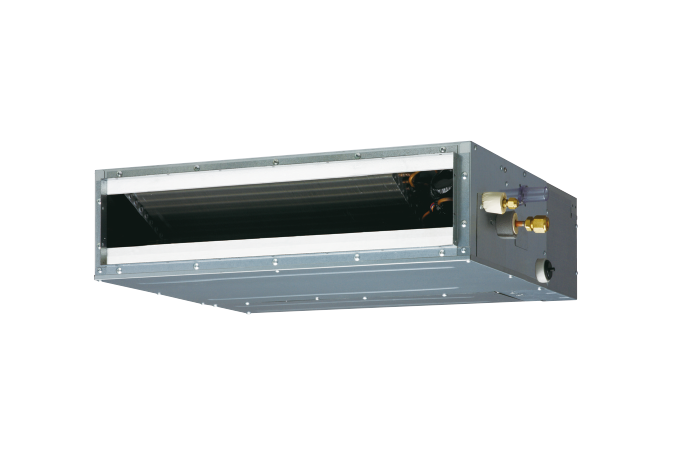

Slim Duct

High Efficiency

Medium Static Pressure Duct

High Static Pressure Duct

Scroll
Floor
  Capacity Range
Model Code 4 7 9 12 14 18 24
Capacity (kW) 1.1 2.2 2.8 3.6 4.5 5.6 7.1
Floor

Slim Concealed Floor
Compact Floor

Compact Floor
(external EEV)

Scroll
Ceiling
  Capacity Range
Model Code 12 14 18 24 30 36 45 54
Capacity (kW) 3.6 4.5 5.6 7.1 9.0 11.2 12.5 14.0
Ceiling
Scroll
Wall Mount
  Capacity Range
Model Code 4 7 9 12 14 18 24 30 34
Capacity (kW) 1.1 2.2 2.8 3.6 4.5 5.6 7.1 9.0 10.0
Wall Mount
Wall Mount
(external EEV)

Scroll
